Compressor/Pump, Suspension Control




Component Connector End Views

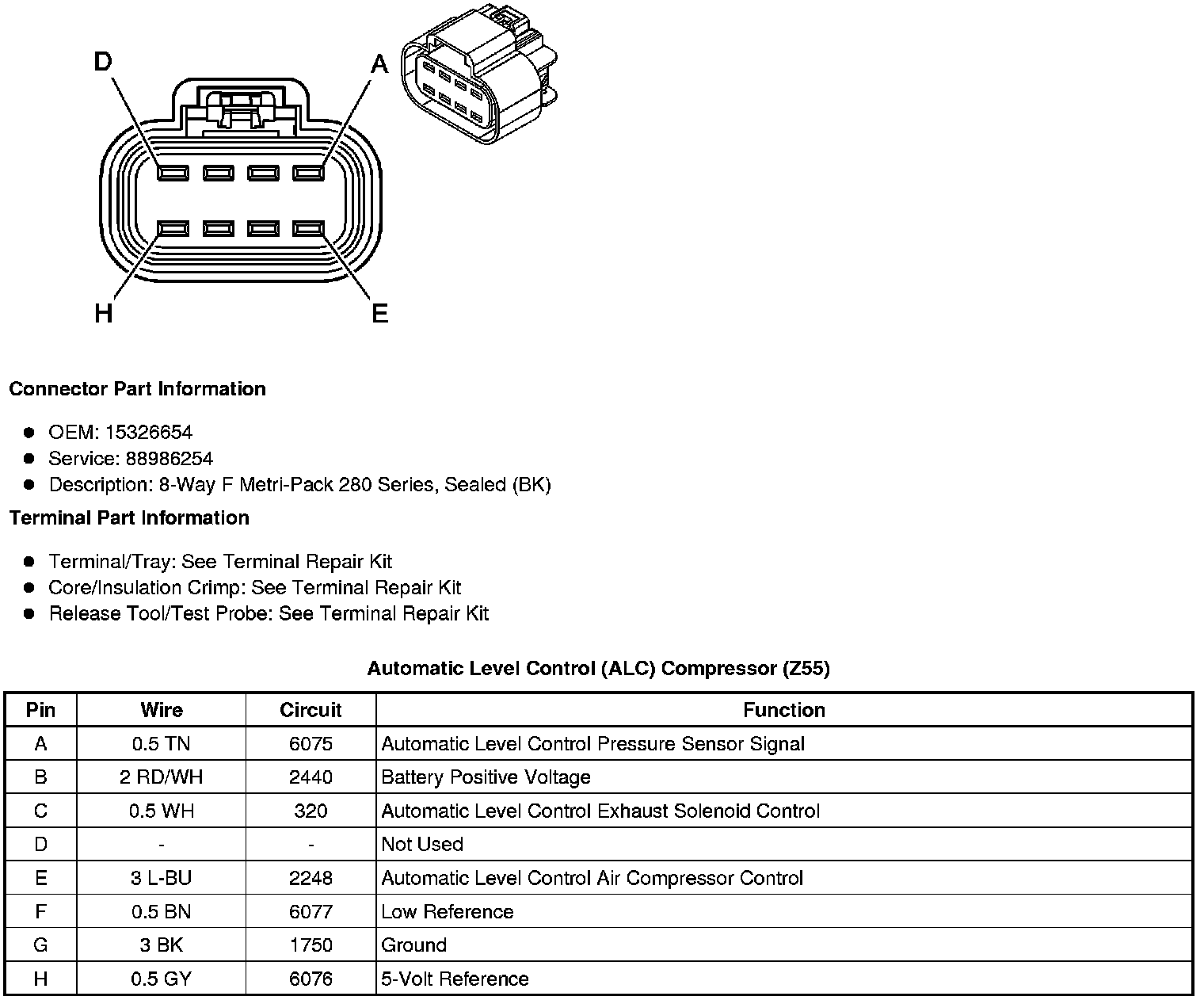

Automatic Level Control (ALC) Compressor (Z55)

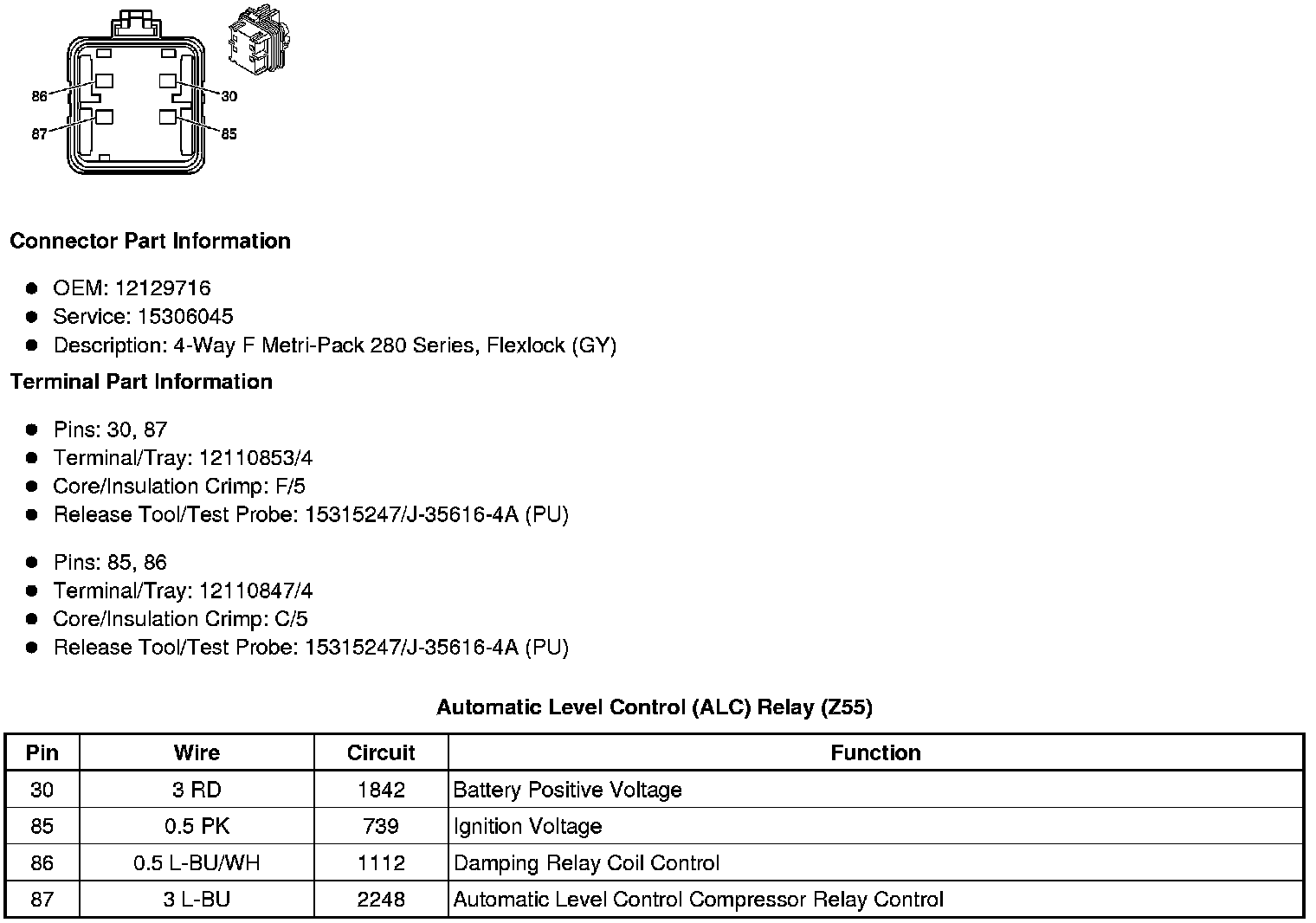

Automatic Level Control (ALC) Relay (Z55)
