Power Seat Motor Position Sensor




Component Connector End Views

Seat Lumbar Massage Motor Position Sensor - Front Passenger (AM3)

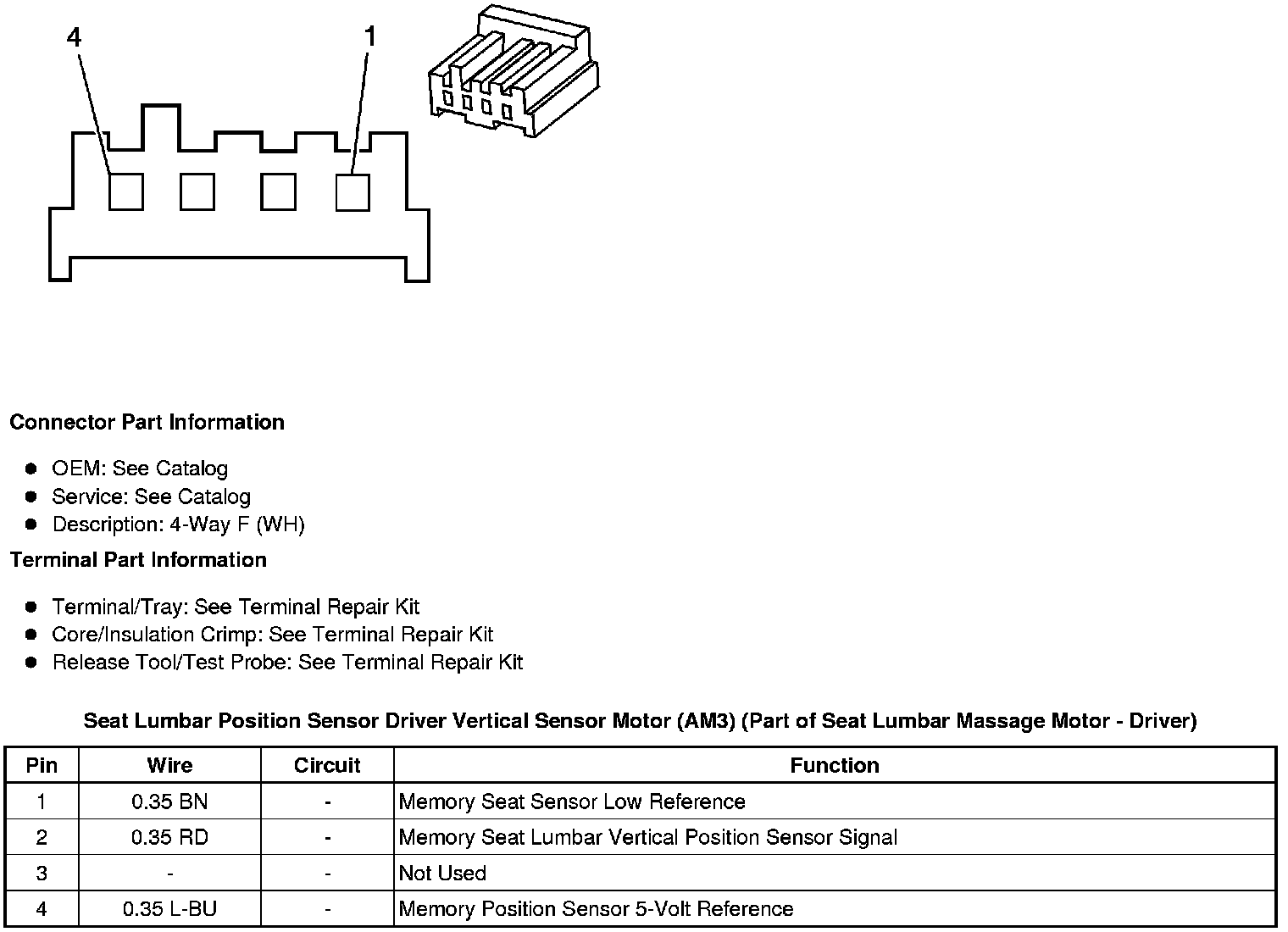

Seat Lumbar Position Sensor Driver Vertical Sensor Motor (AM3) (Part of Seat Lumbar Massage Motor - Driver)





Seat Lumbar Motor Position Sensor - Front Passenger (without A45)





Seat Lumbar Motor Position Sensor - Driver Horizontal (AM3) (Part of Seat Lumbar Massage Motor - Driver)





Seat Rear Horizontal Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)





Seat Rear Vertical Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)

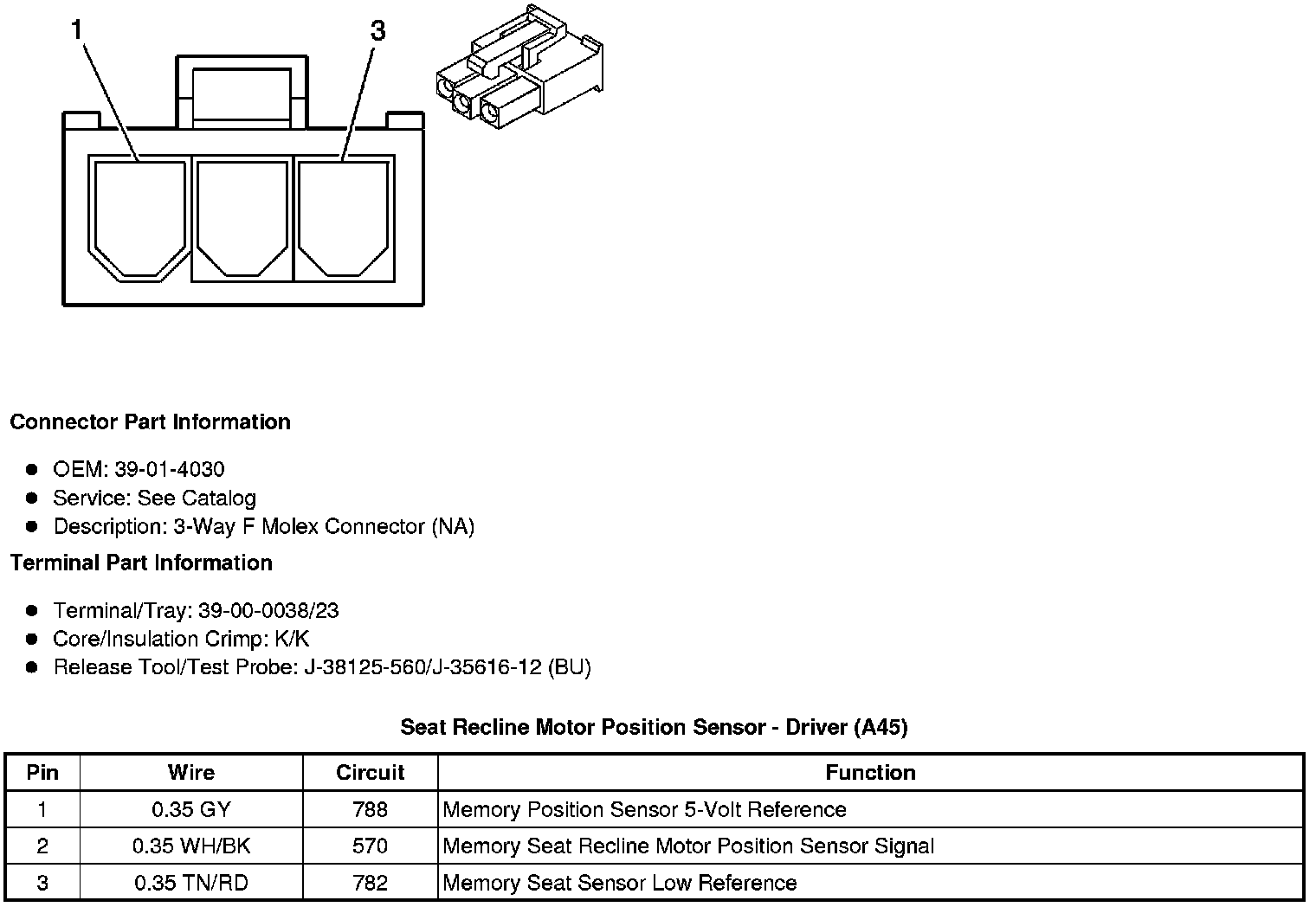

Seat Recline Motor Position Sensor - Driver (A45)
