Mirrors




Component Connector End Views

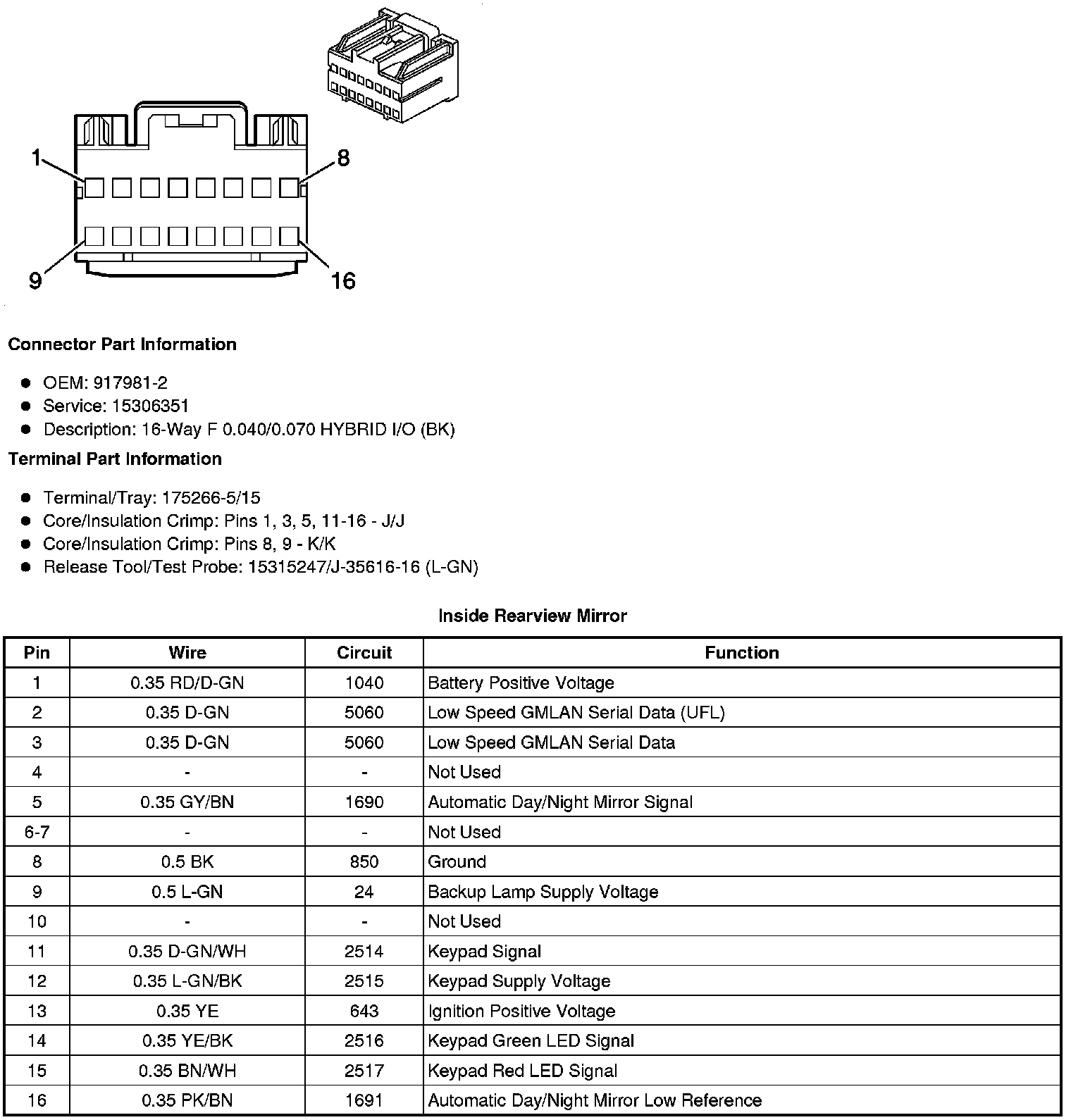

Inside Rearview Mirror

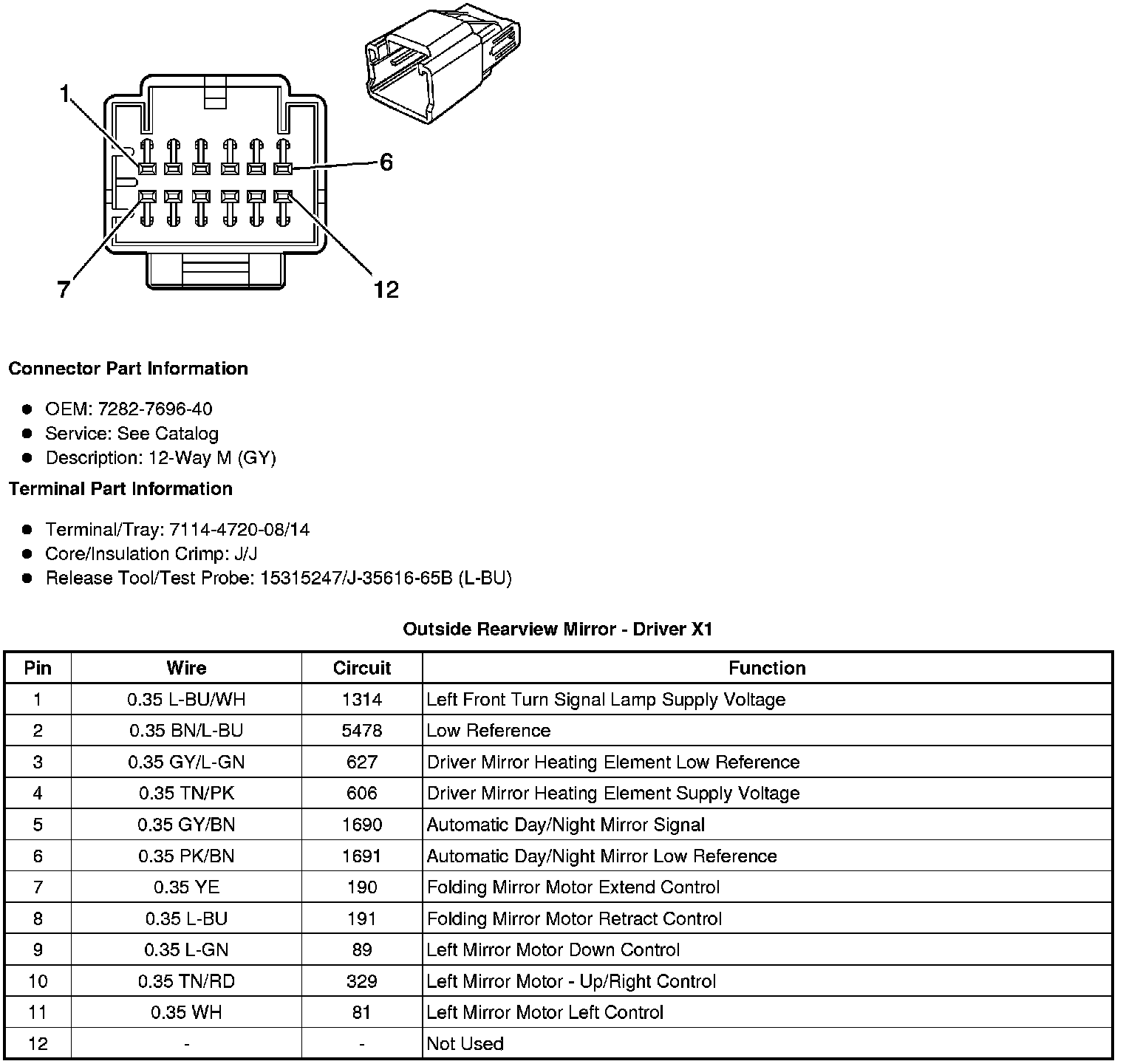

Outside Rearview Mirror - Driver X1





Outside Rearview Mirror - Driver X2

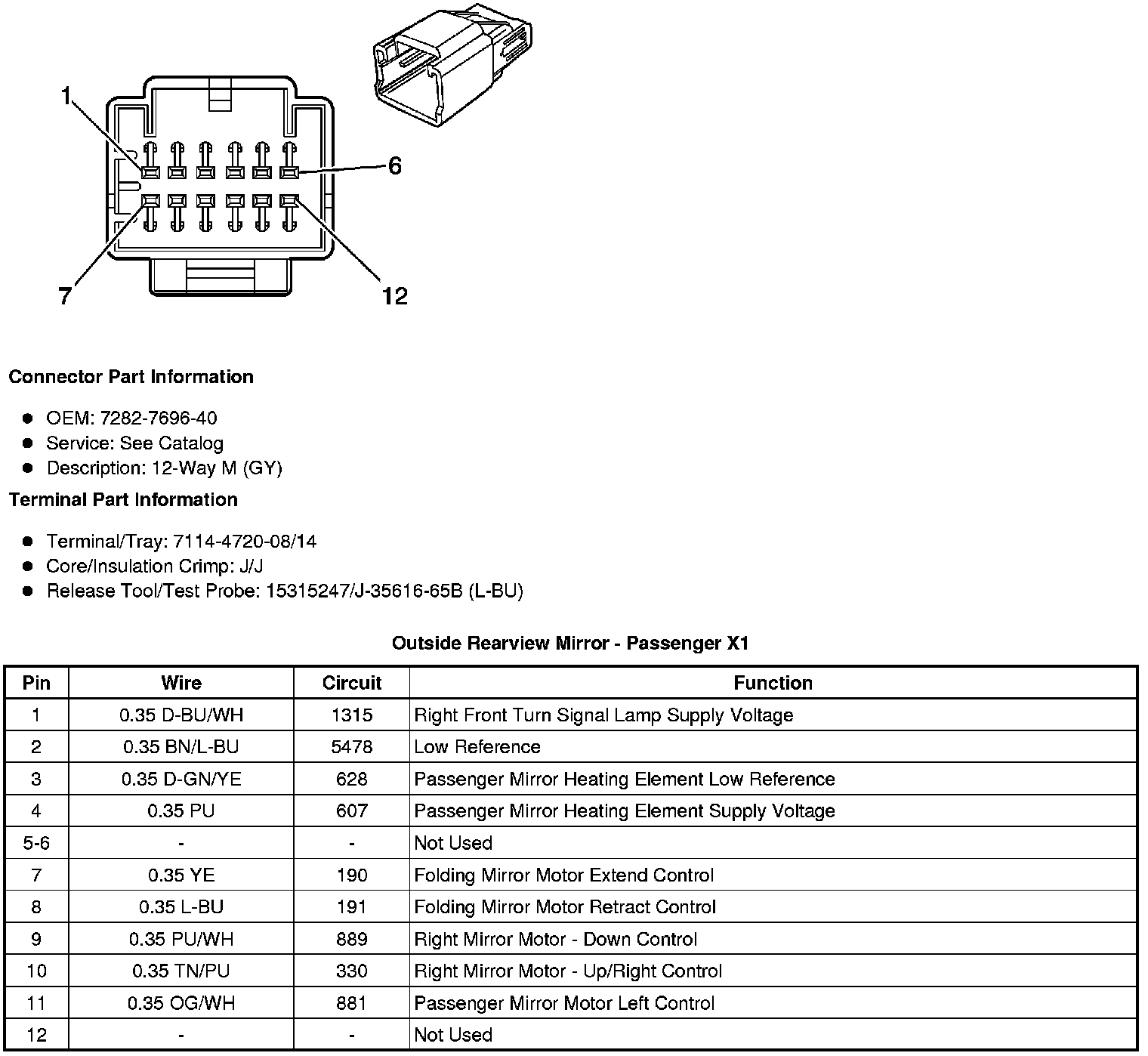

Outside Rearview Mirror - Passenger X1

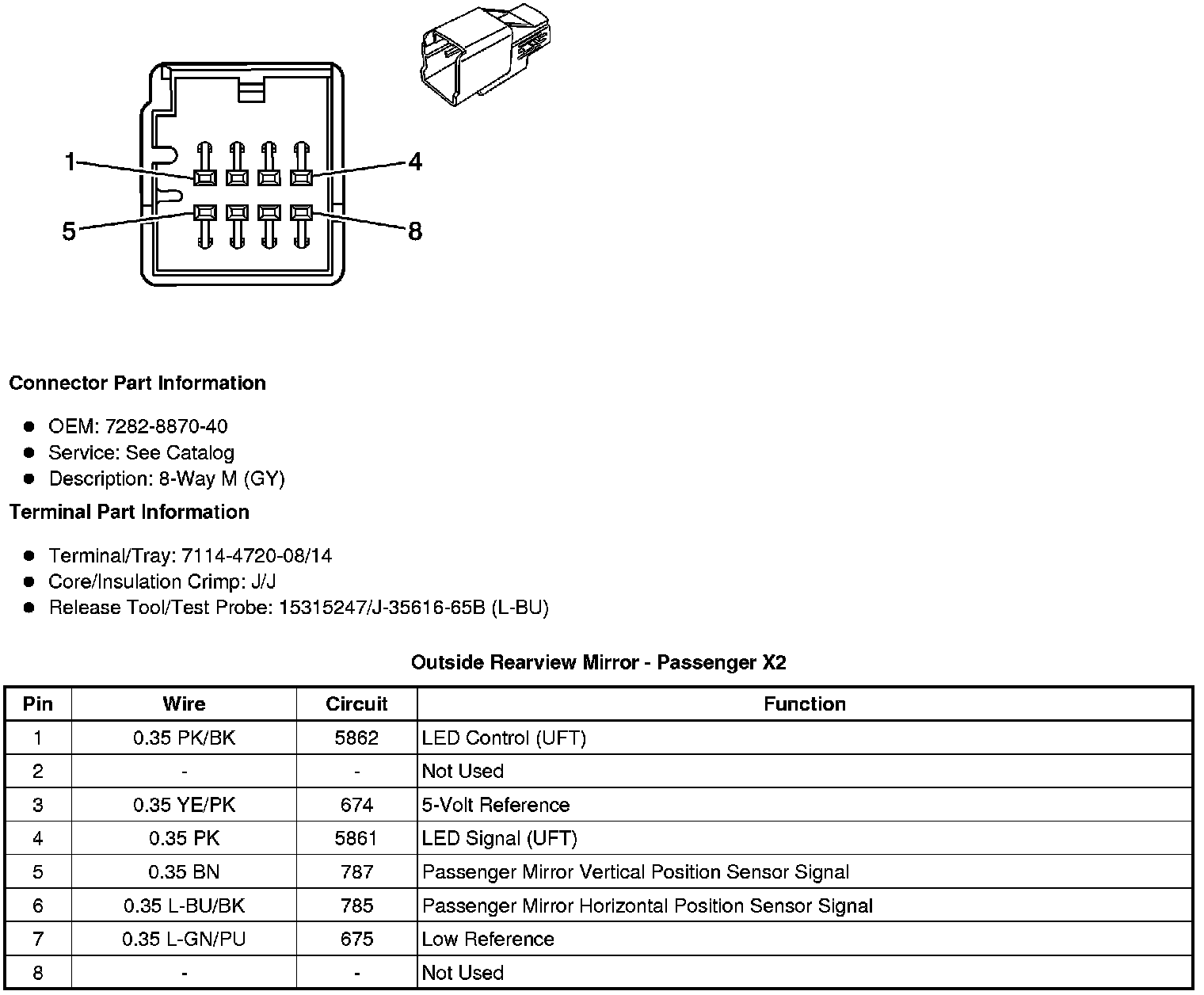

Outside Rearview Mirror - Passenger X2
