Fuel Injector




Component Connector End Views

Fuel Injector 1





Fuel Injector 2

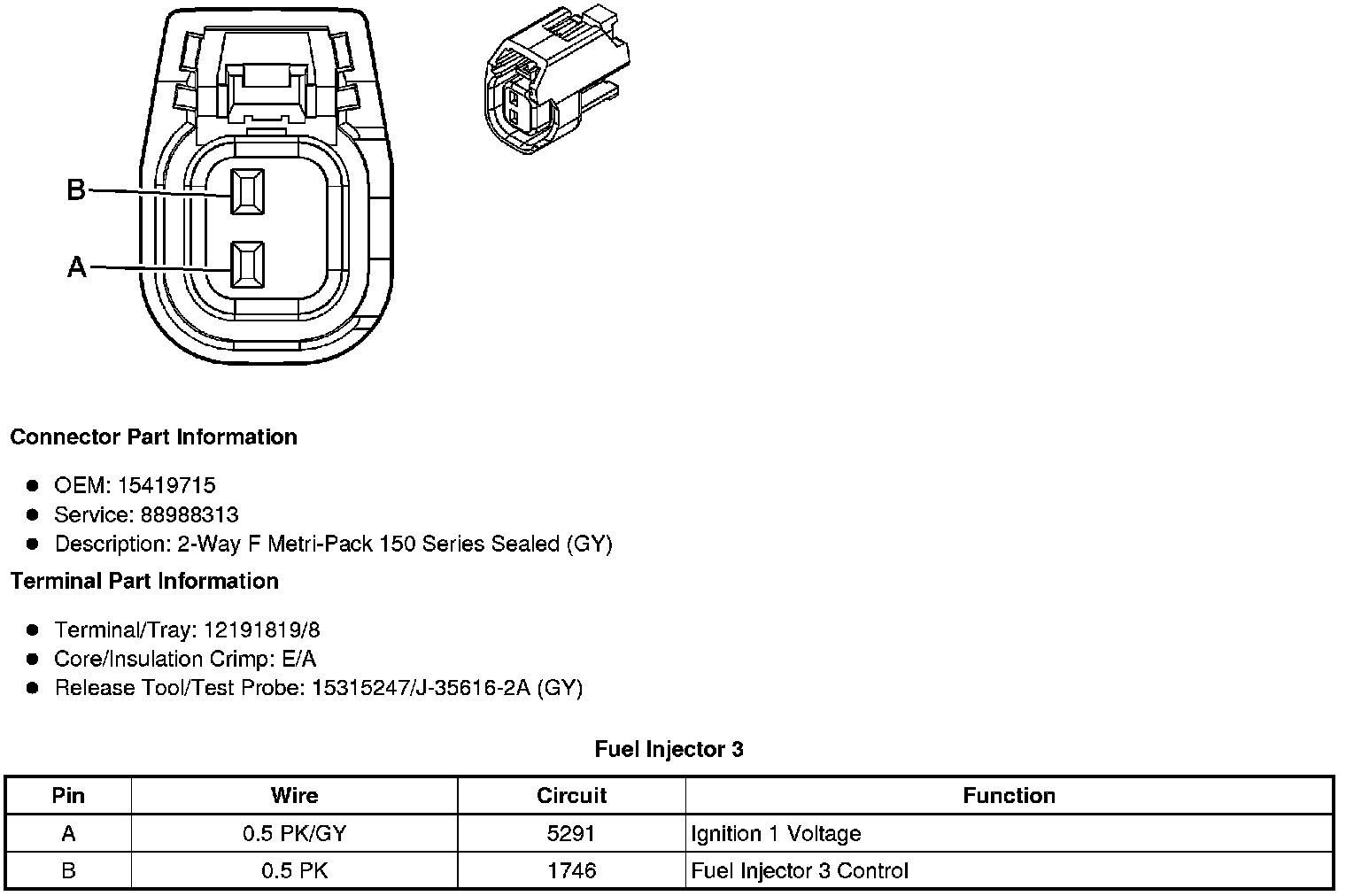

Fuel Injector 3

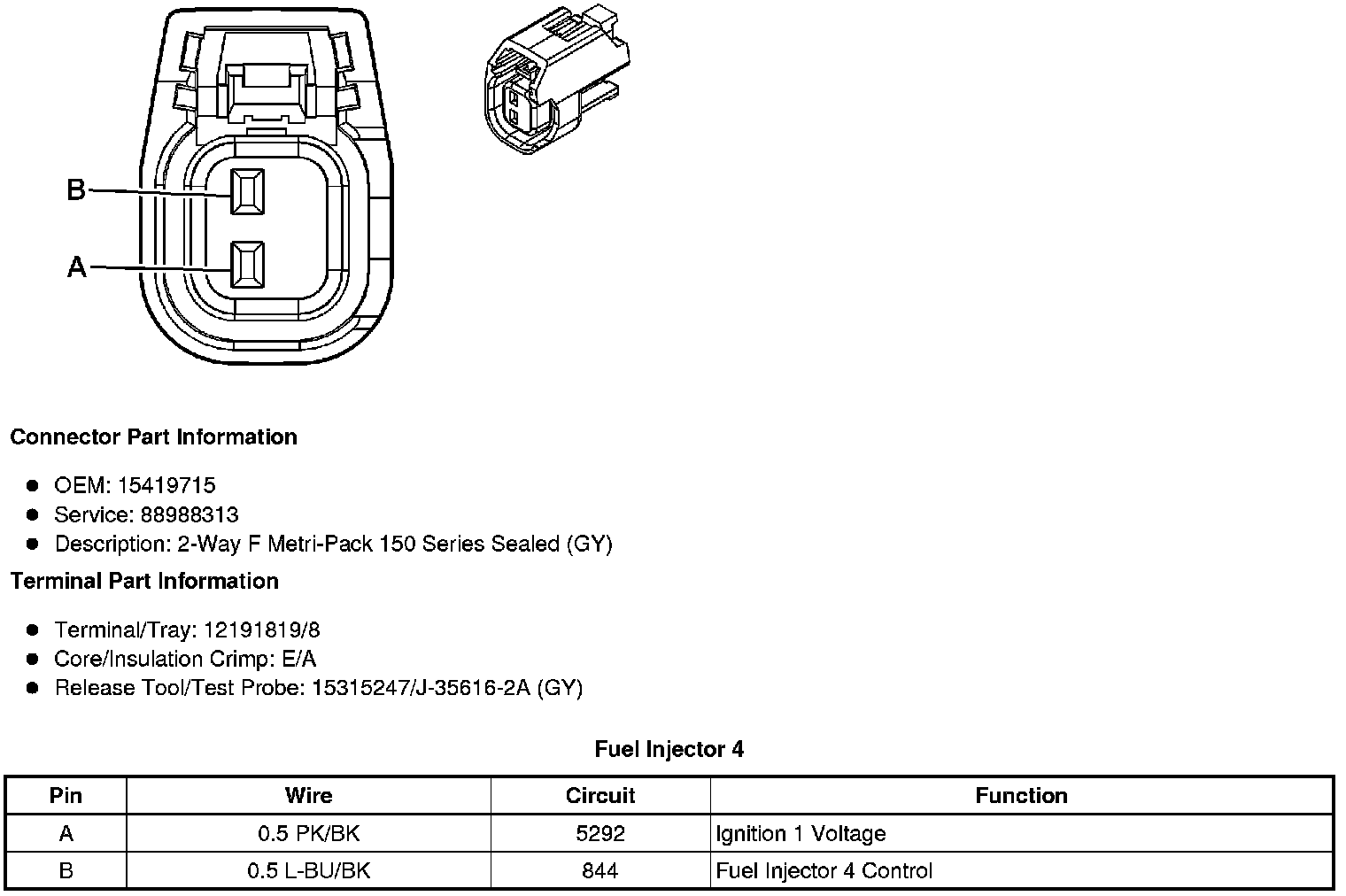

Fuel Injector 4





Fuel Injector 5

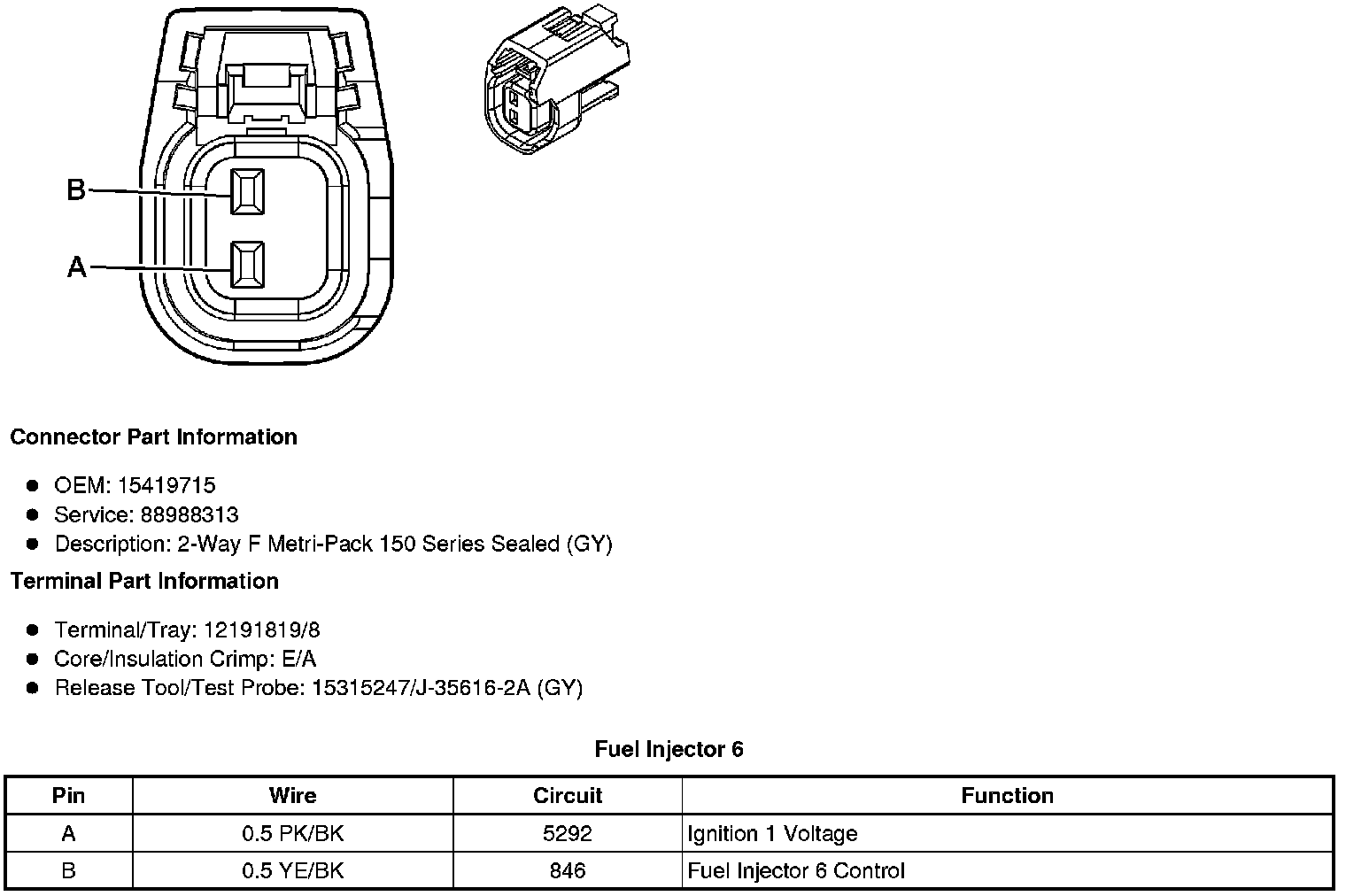

Fuel Injector 6





Fuel Injector 7





Fuel Injector 8
