Air Injection Control Valve

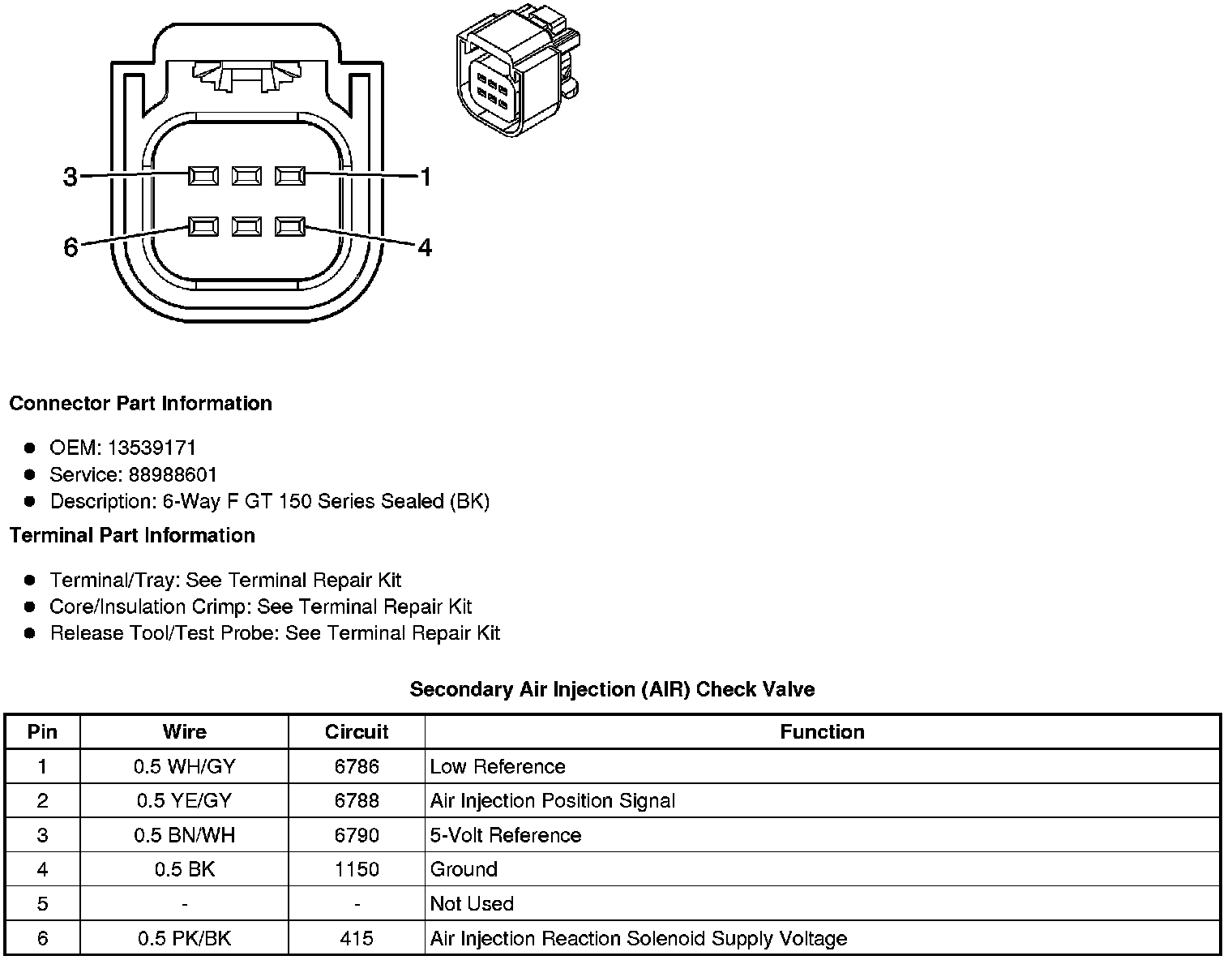

Component Connector End Views

Secondary Air Injection (AIR) Check Valve
