Door Control Module Schematics




Door Control Module Schematics

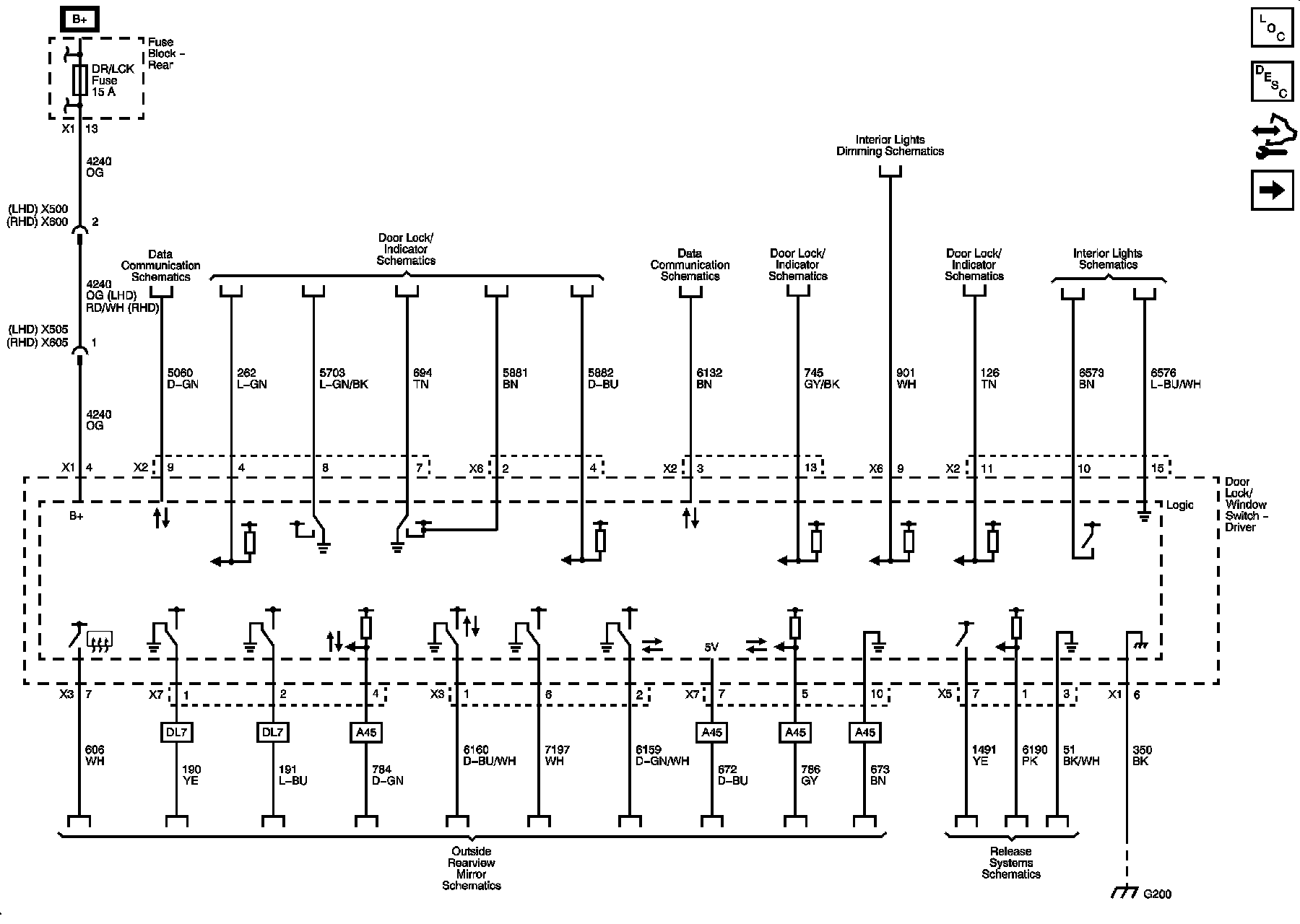

Driver Door Module 1 of 2





Driver Door Module 2 of 2

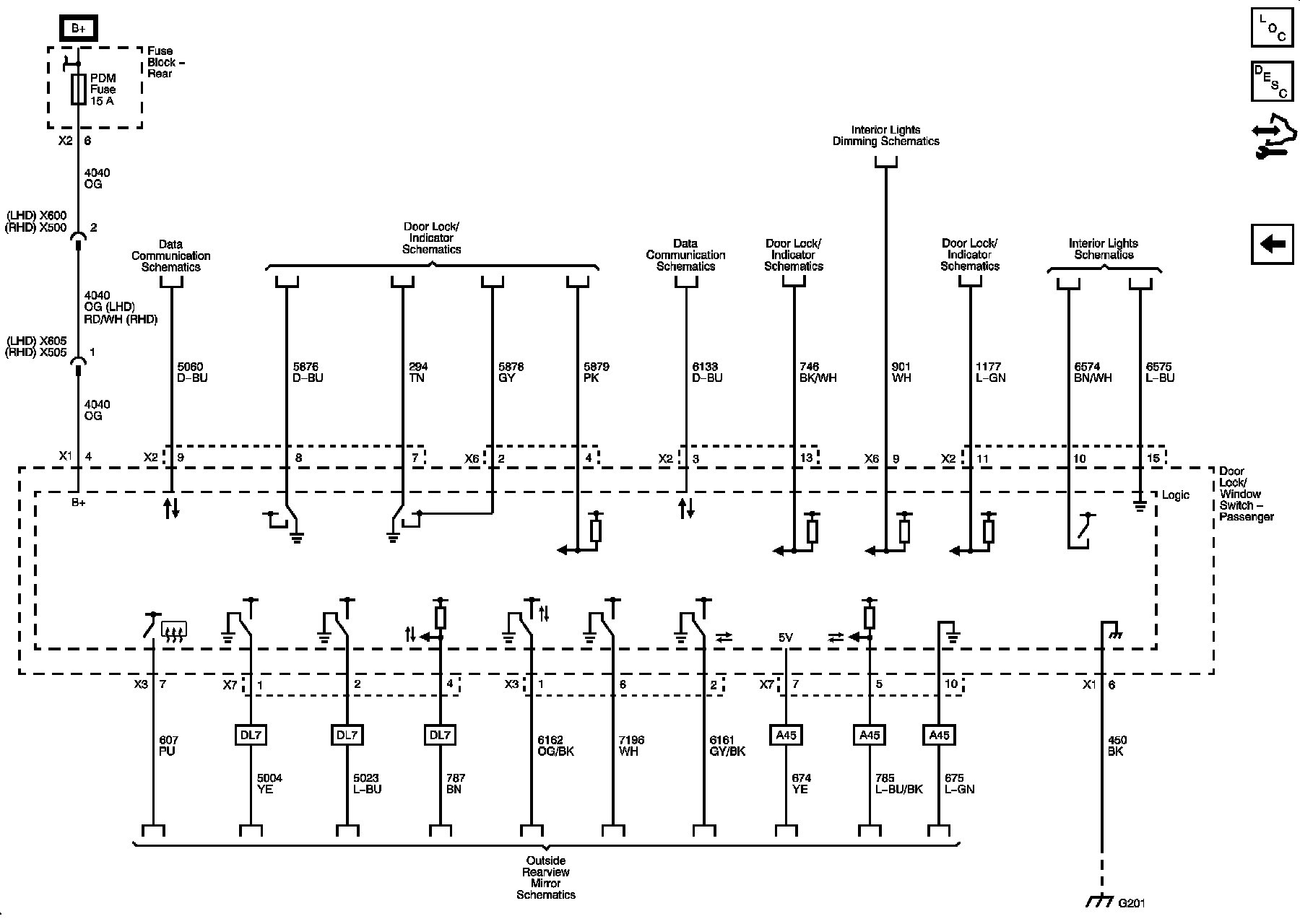

Front Passenger Door Module
