Knock Sensor: Diagrams



Component Connector End Views

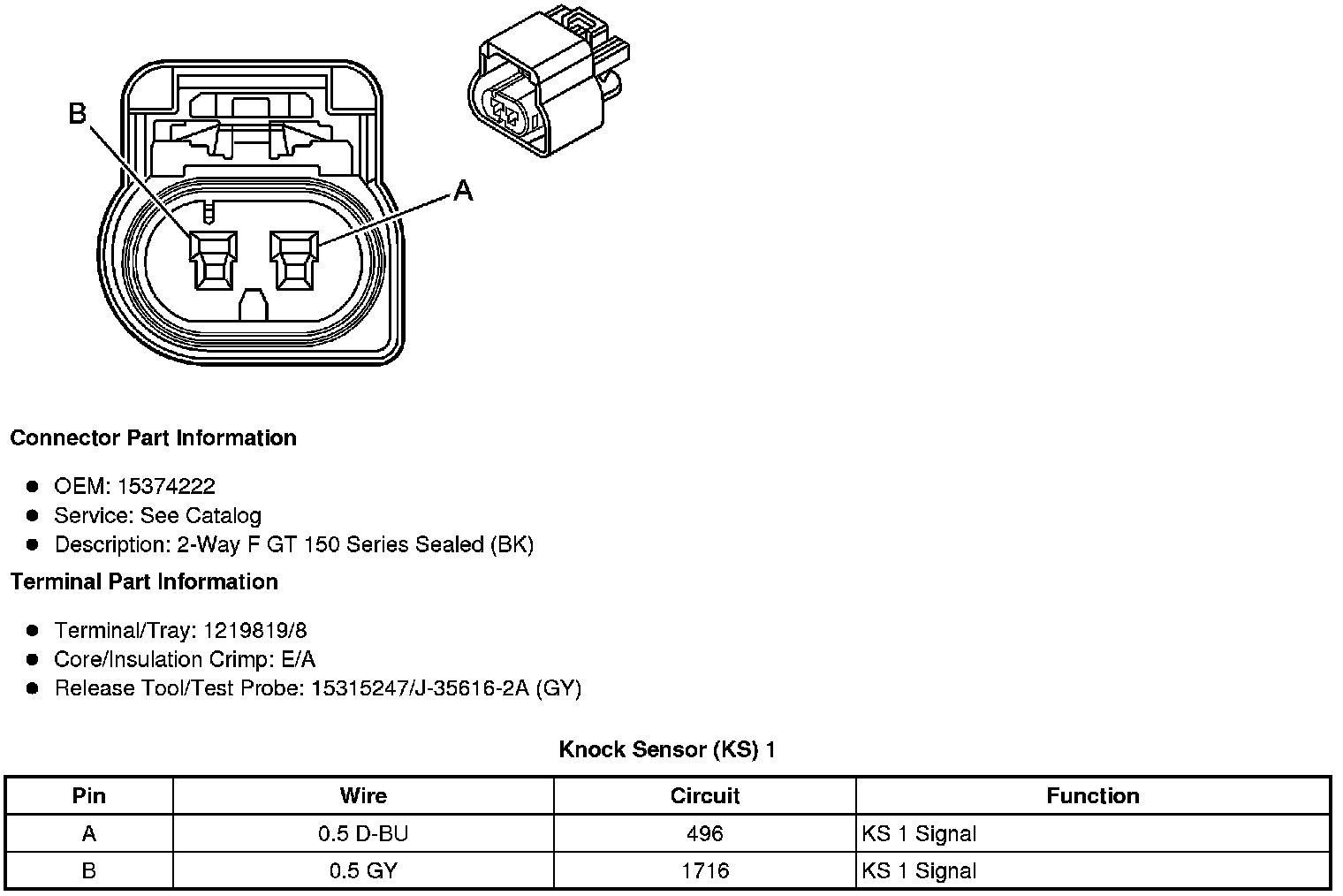

Knock Sensor (KS) 1






Knock Sensor (KS) 2
