Keyless Entry Module



Component Connector End Views

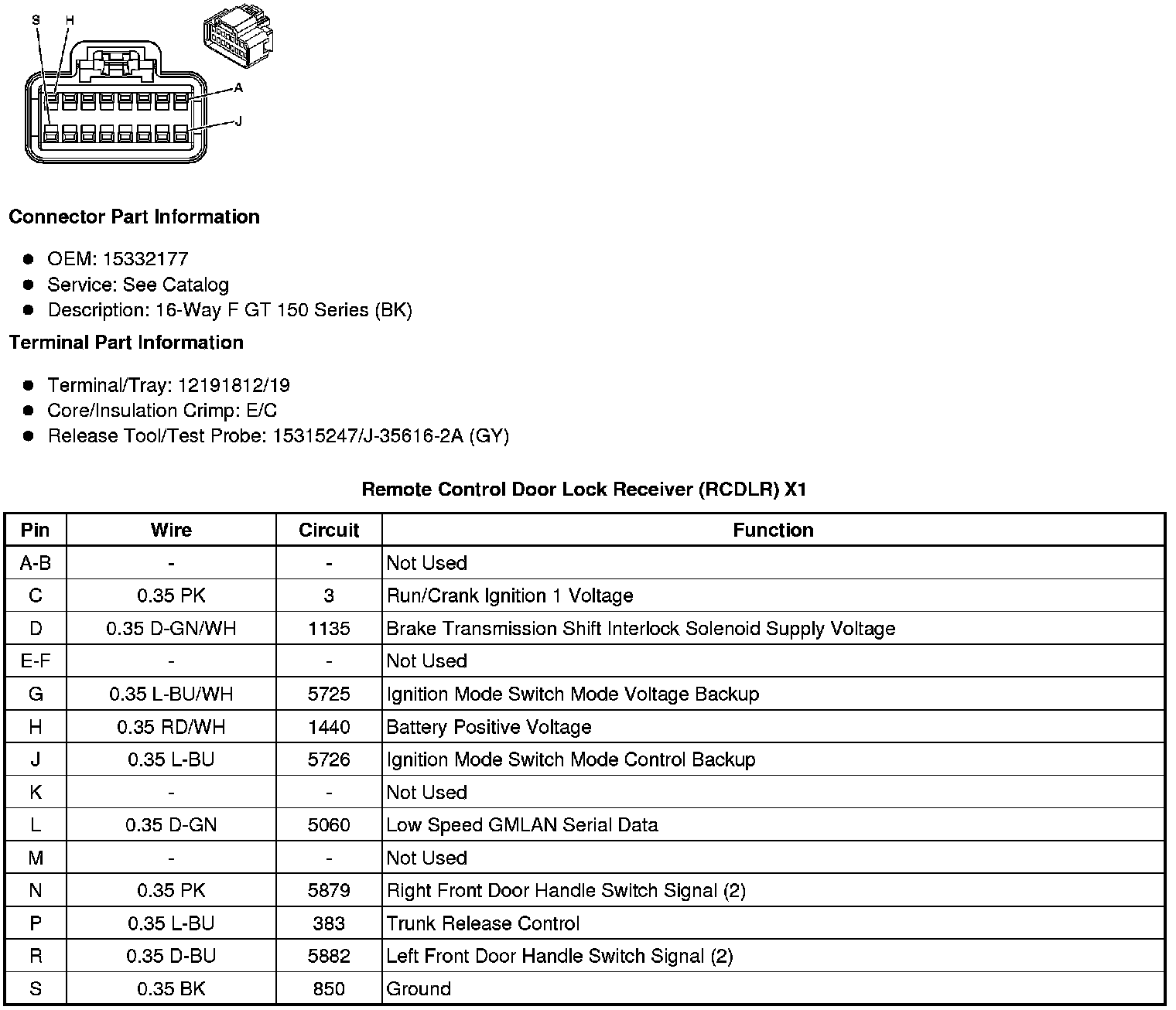

Remote Control Door Lock Receiver (RCDLR) X1

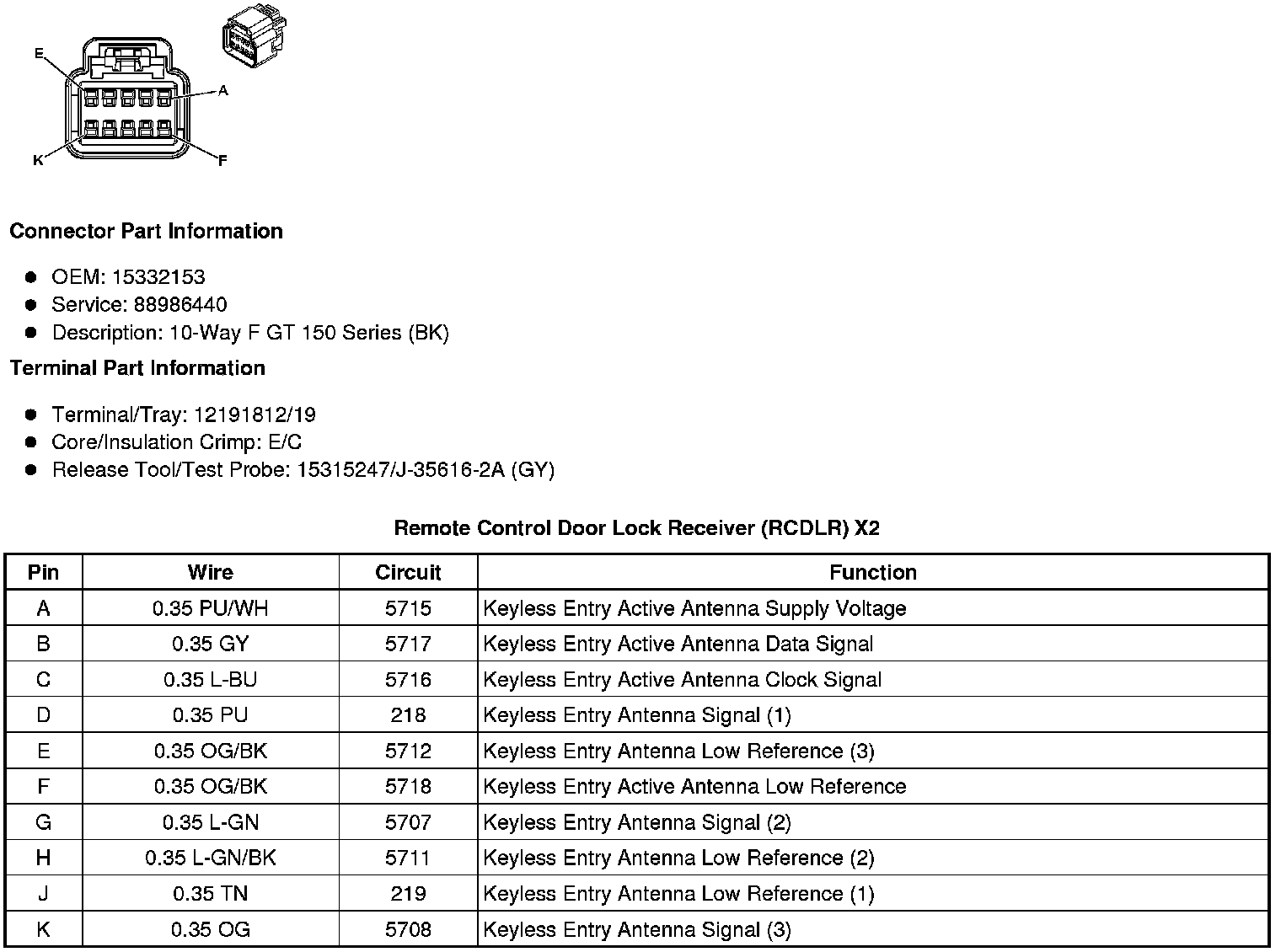

Remote Control Door Lock Receiver (RCDLR) X2






Remote Control Door Lock Receiver (RCDLR) X3
