Connector Views



Component Connector End Views


Crankshaft Position (CKP) Sensor (LC3 or LH2)

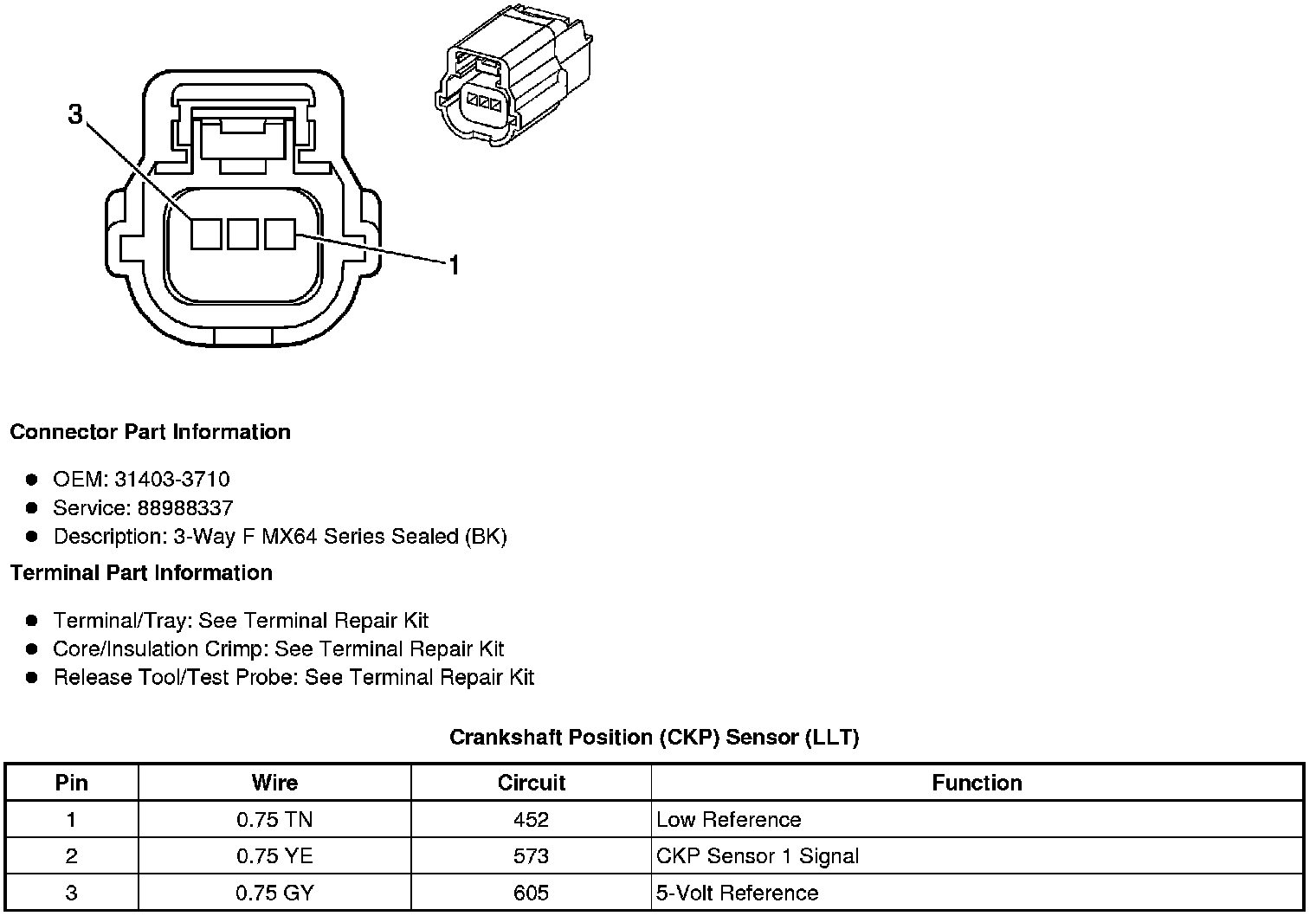

Crankshaft Position (CKP) Sensor (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)
