Combination Switch



Component Connector End Views

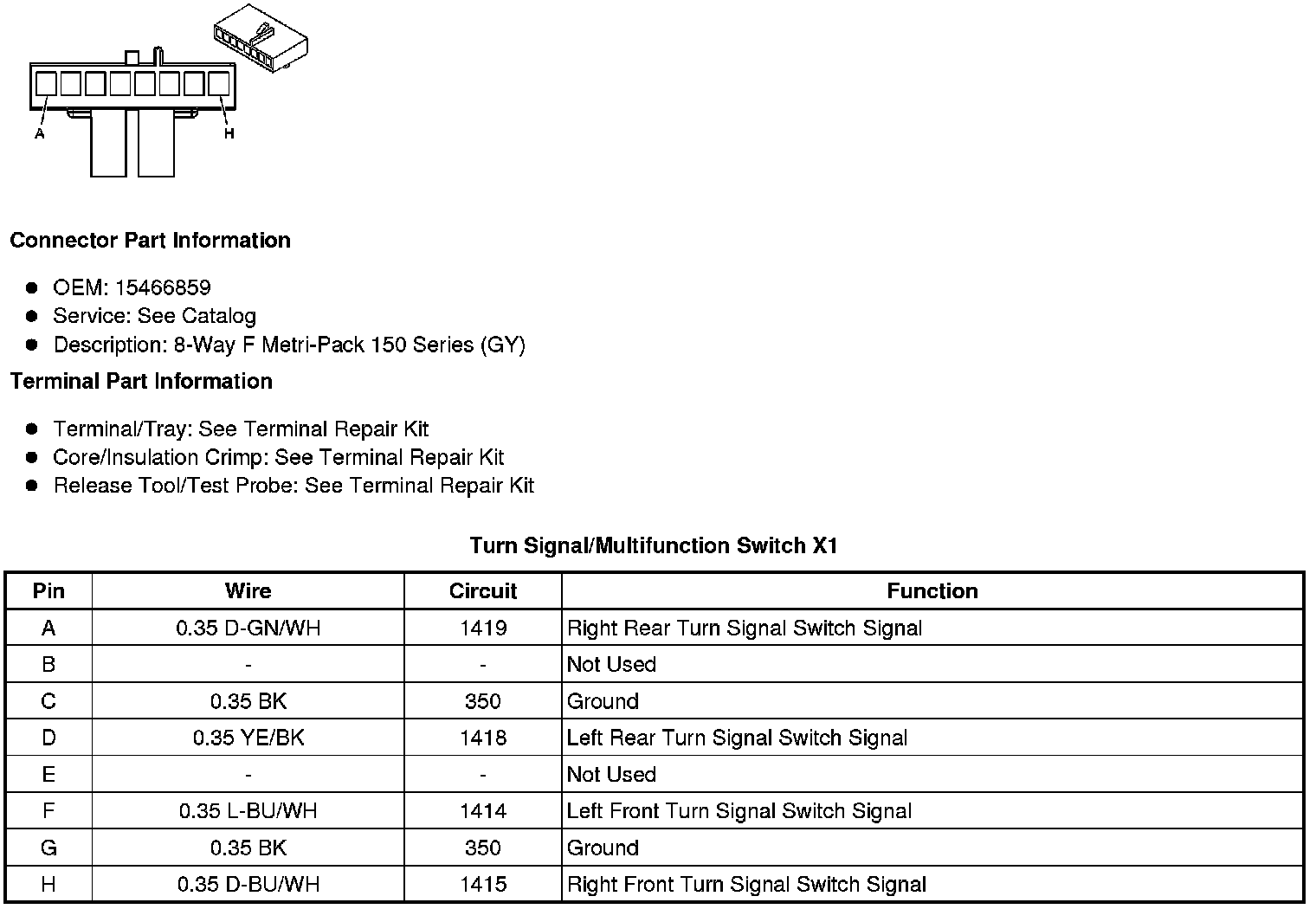

Turn Signal/Multifunction Switch X1

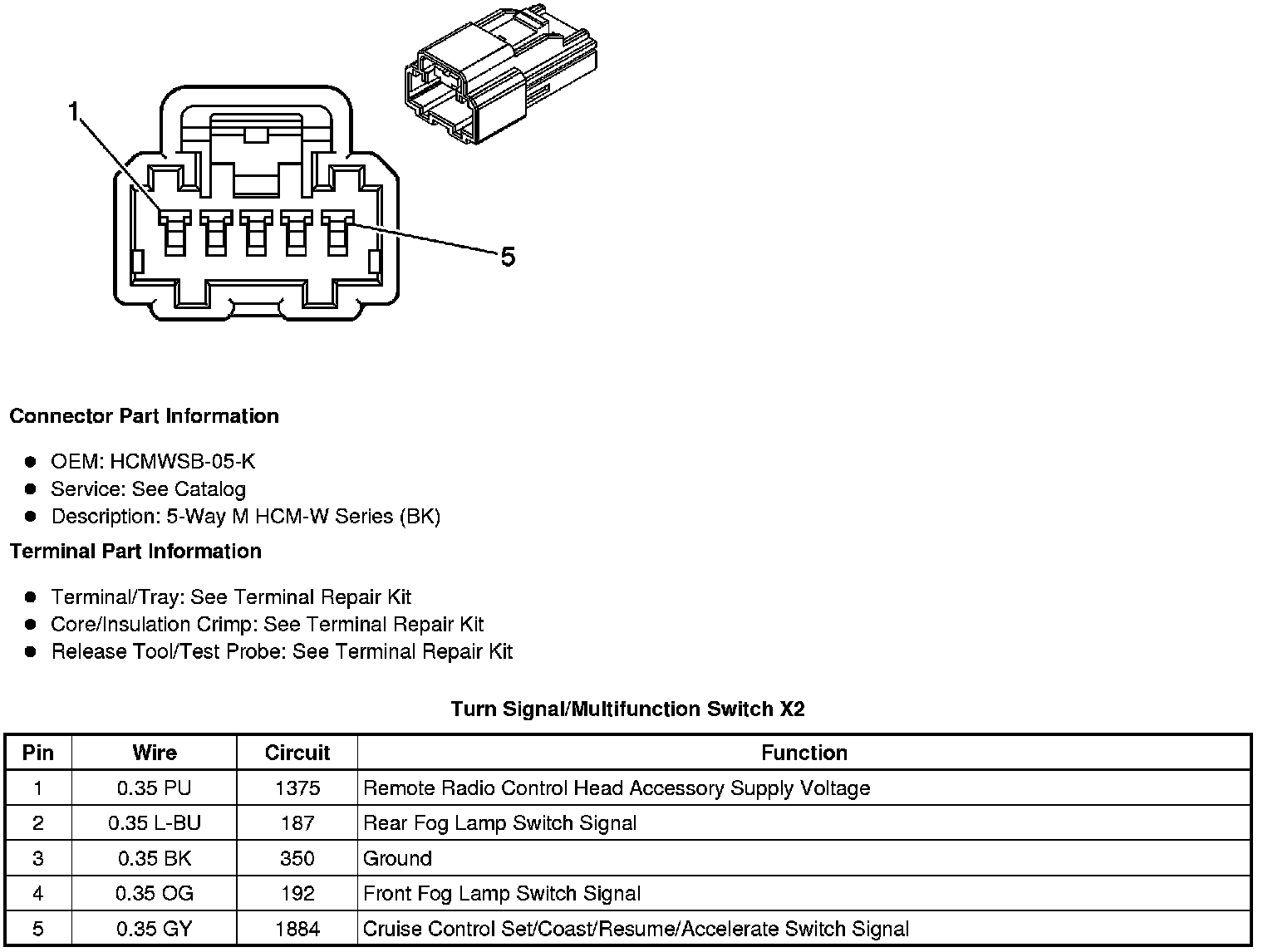

Turn Signal/Multifunction Switch X2






Turn Signal/Multifunction Switch X3






Turn Signal/Multifunction Switch X4
