Trunk / Liftgate Switch



Component Connector End Views

Rear Compartment Lid Latch






Rear Compartment Lid Release Switch - Exterior

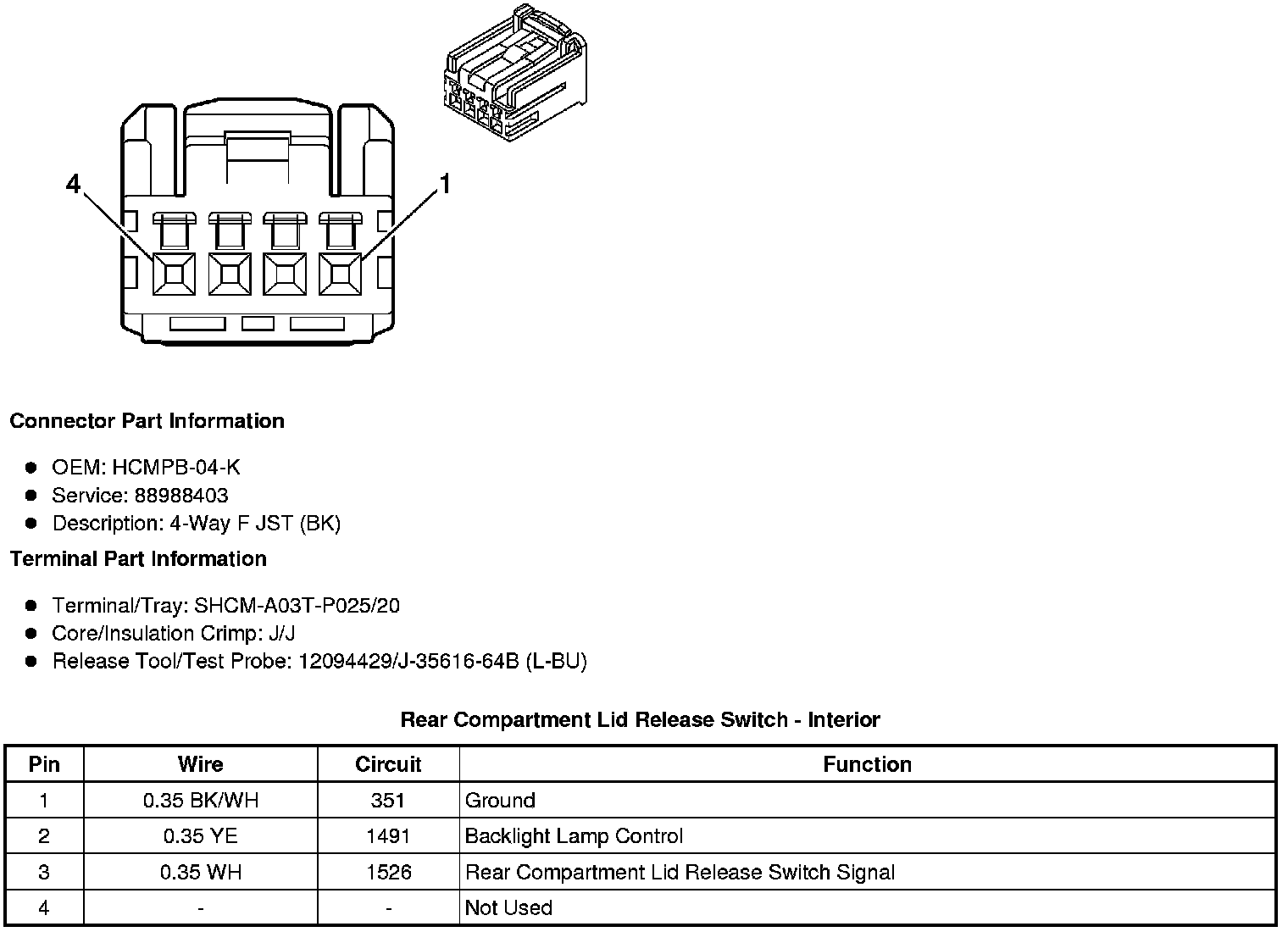

Rear Compartment Lid Release Switch - Interior
