Seat Temperature Element



Component Connector End Views


Heated Seat Element - Driver Back (KA1)






Heated Seat Element - Driver Cushion (KA1)






Heated Seat Element - Left Rear Back (KA6)

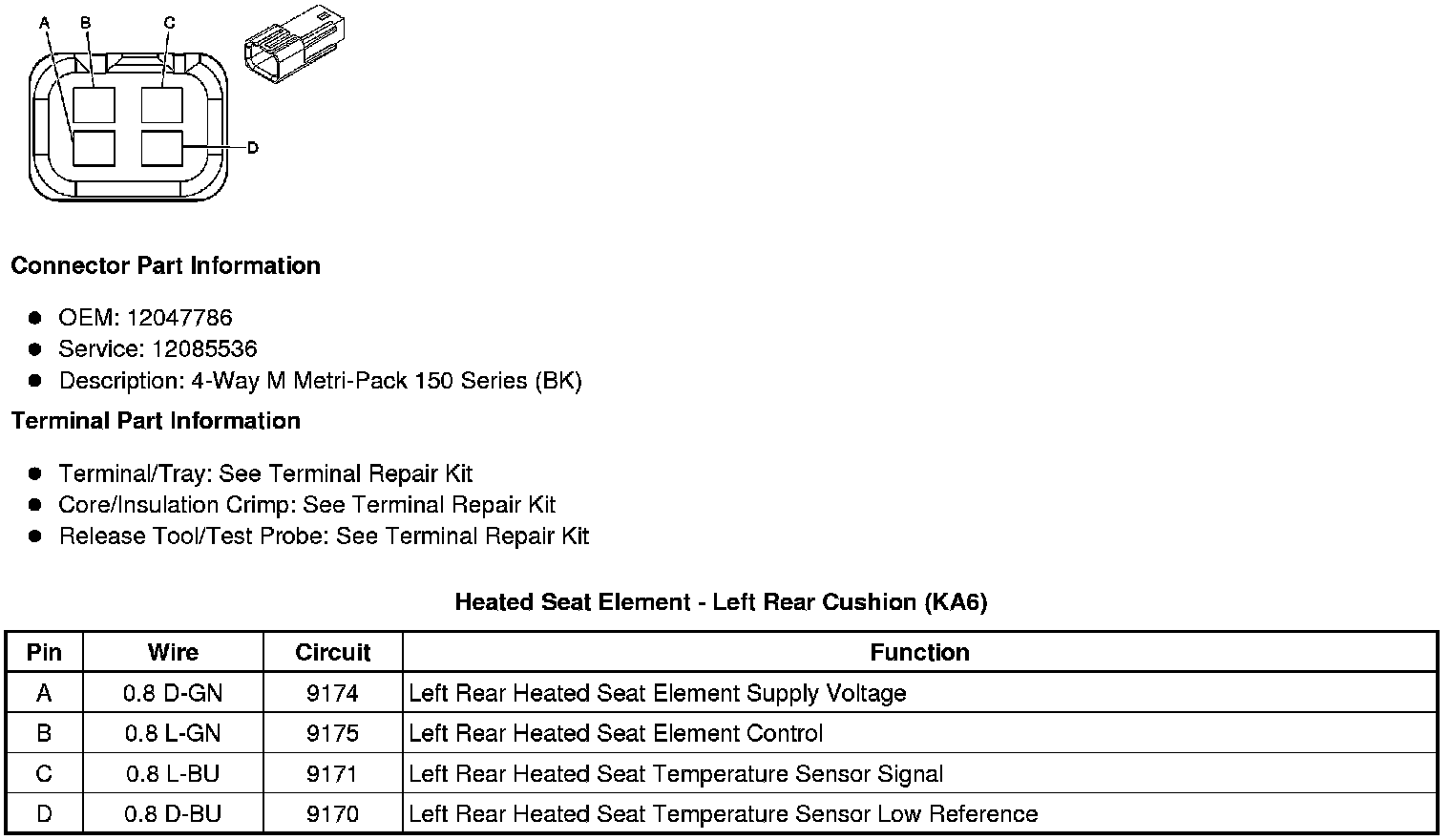

Heated Seat Element - Left Rear Cushion (KA6)






Heated Seat Element - Passenger Back (KA1)

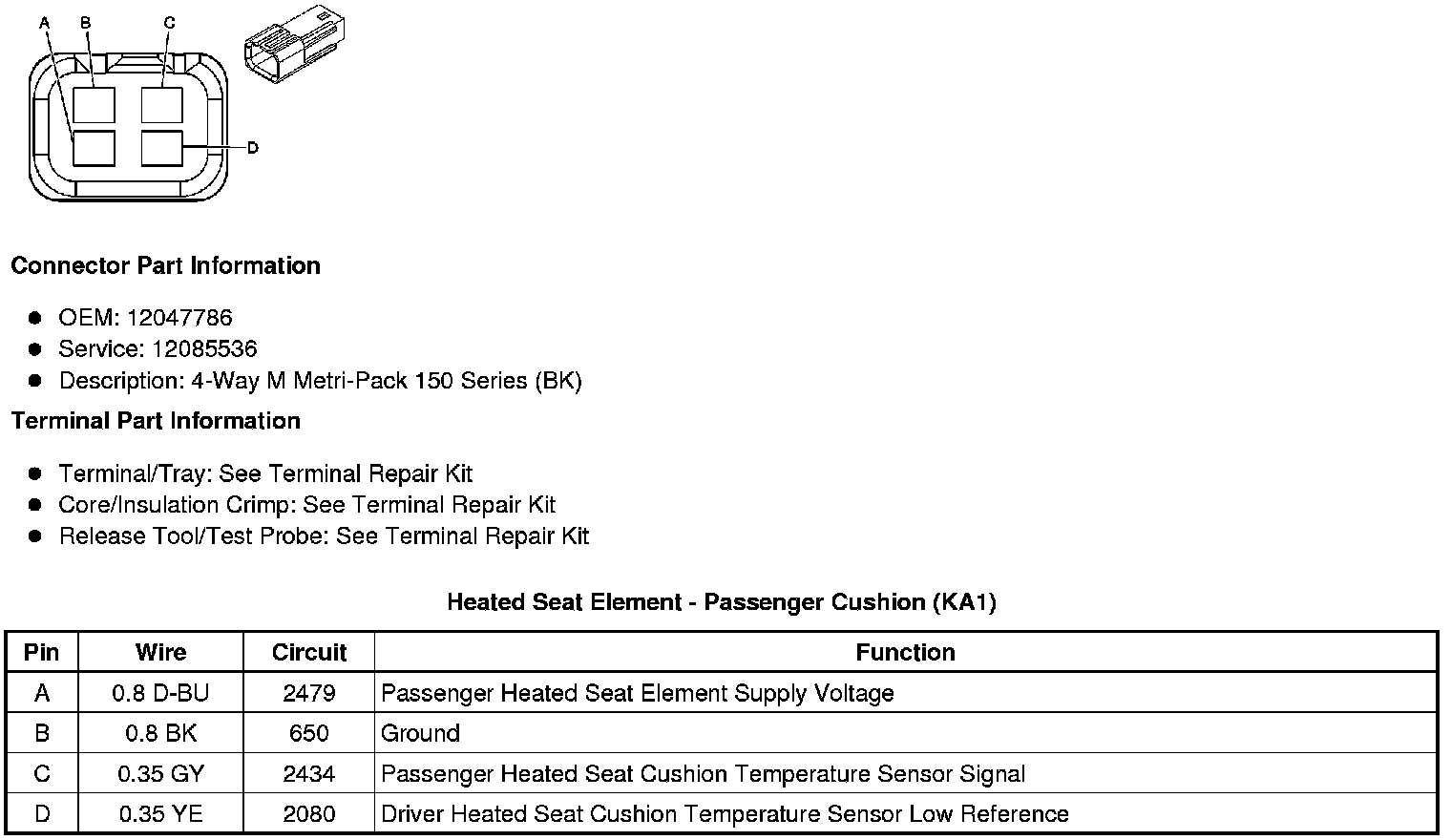

Heated Seat Element - Passenger Cushion (KA1)






Heated Seat Element - Right Rear Back (KA6)

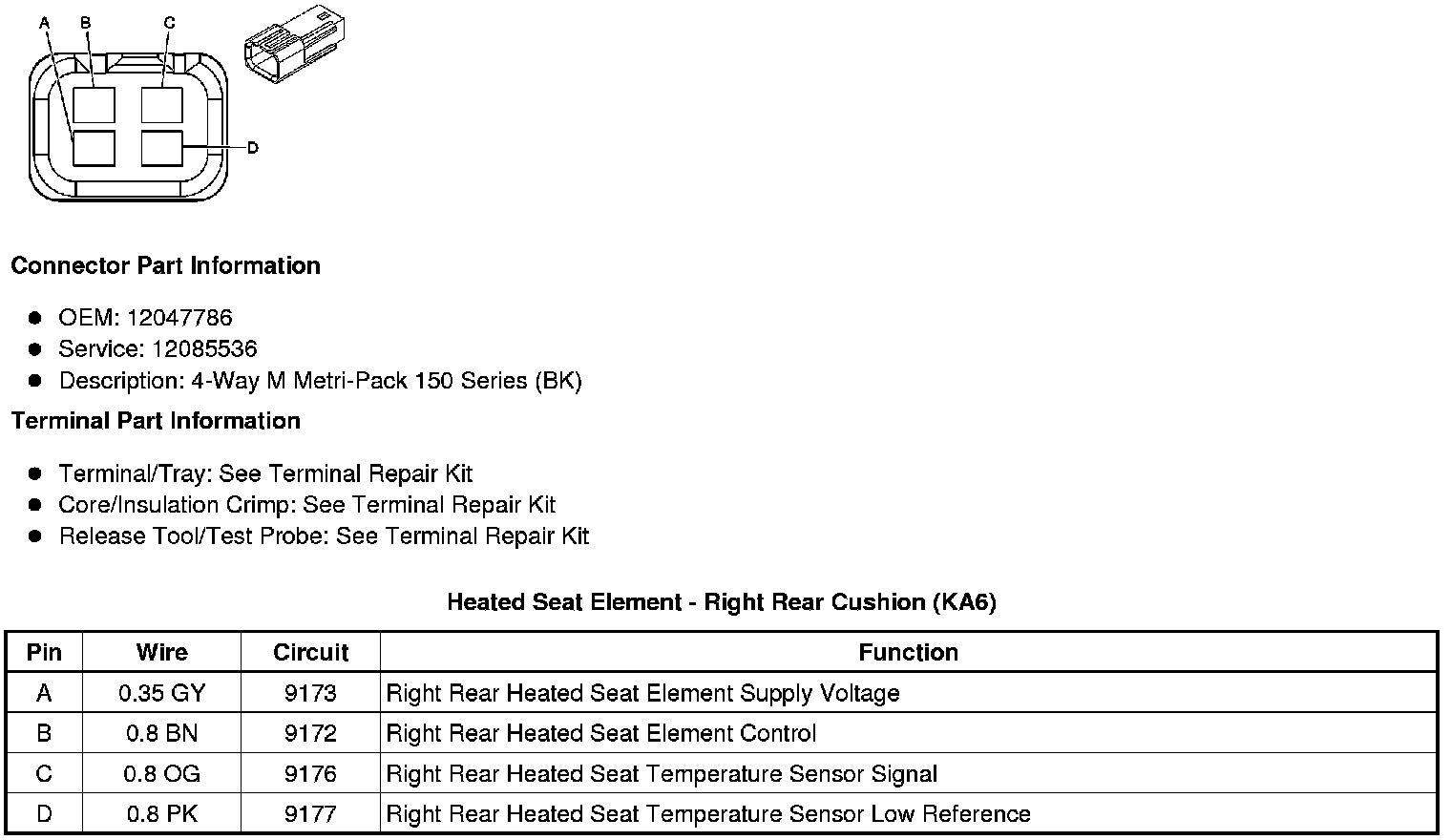

Heated Seat Element - Right Rear Cushion (KA6)
