Seat Occupant Sensor

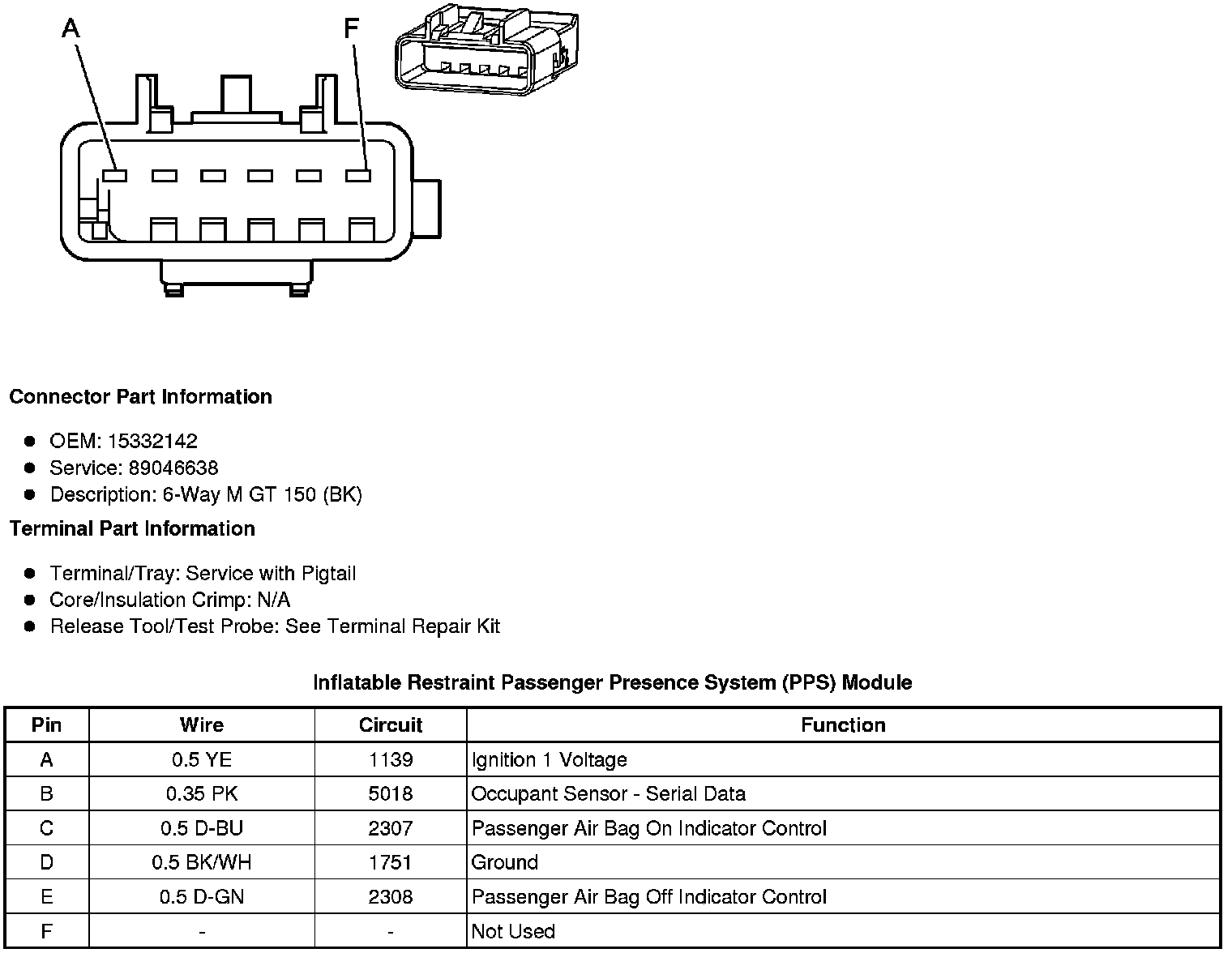

Component Connector End Views

Inflatable Restraint Passenger Presence System (PPS) Module
