Ride Height Sensor, Suspension Control



Component Connector End Views

Suspension Position Sensor - Left Front (F55 or TR7)

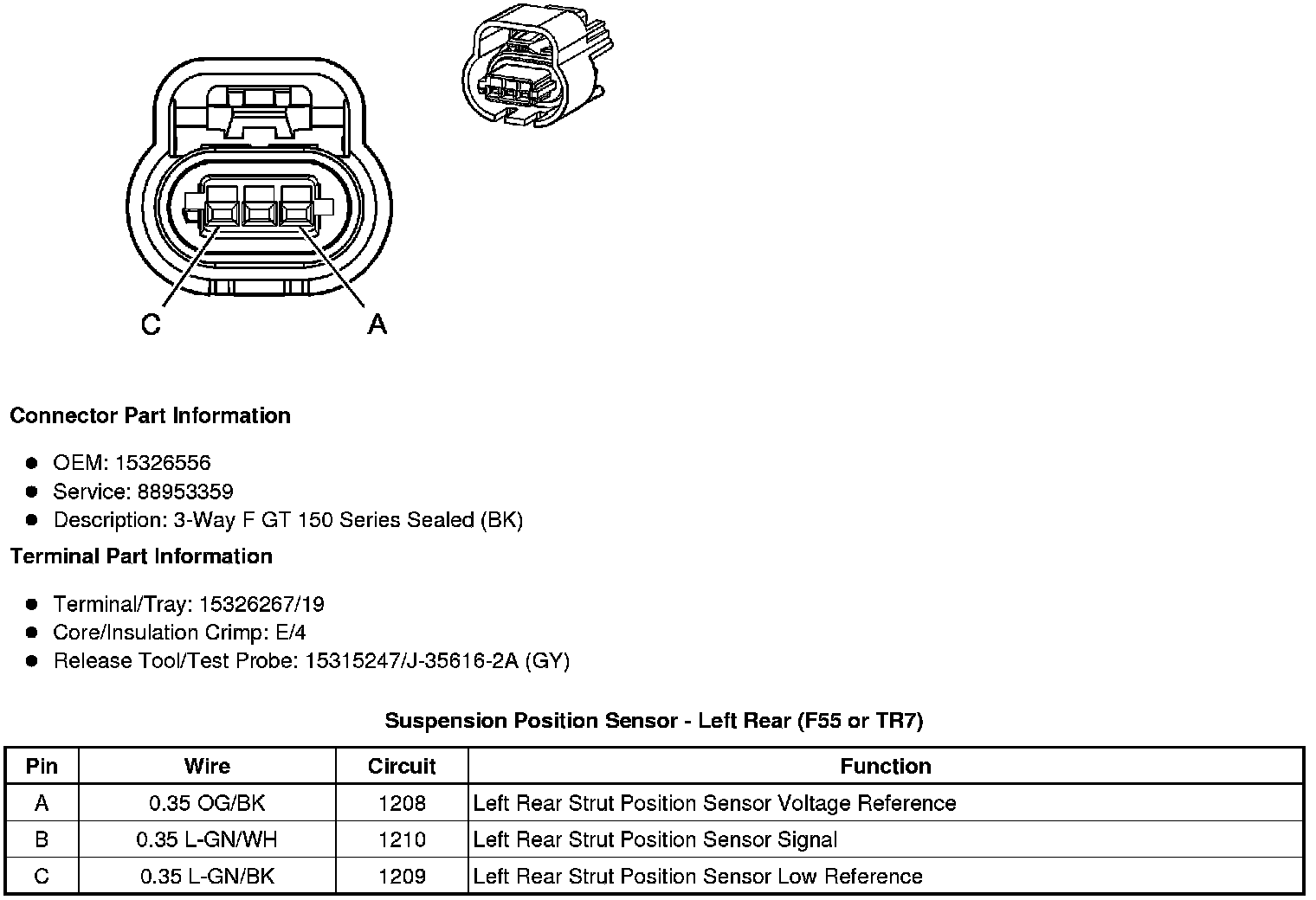

Suspension Position Sensor - Left Rear (F55 or TR7)

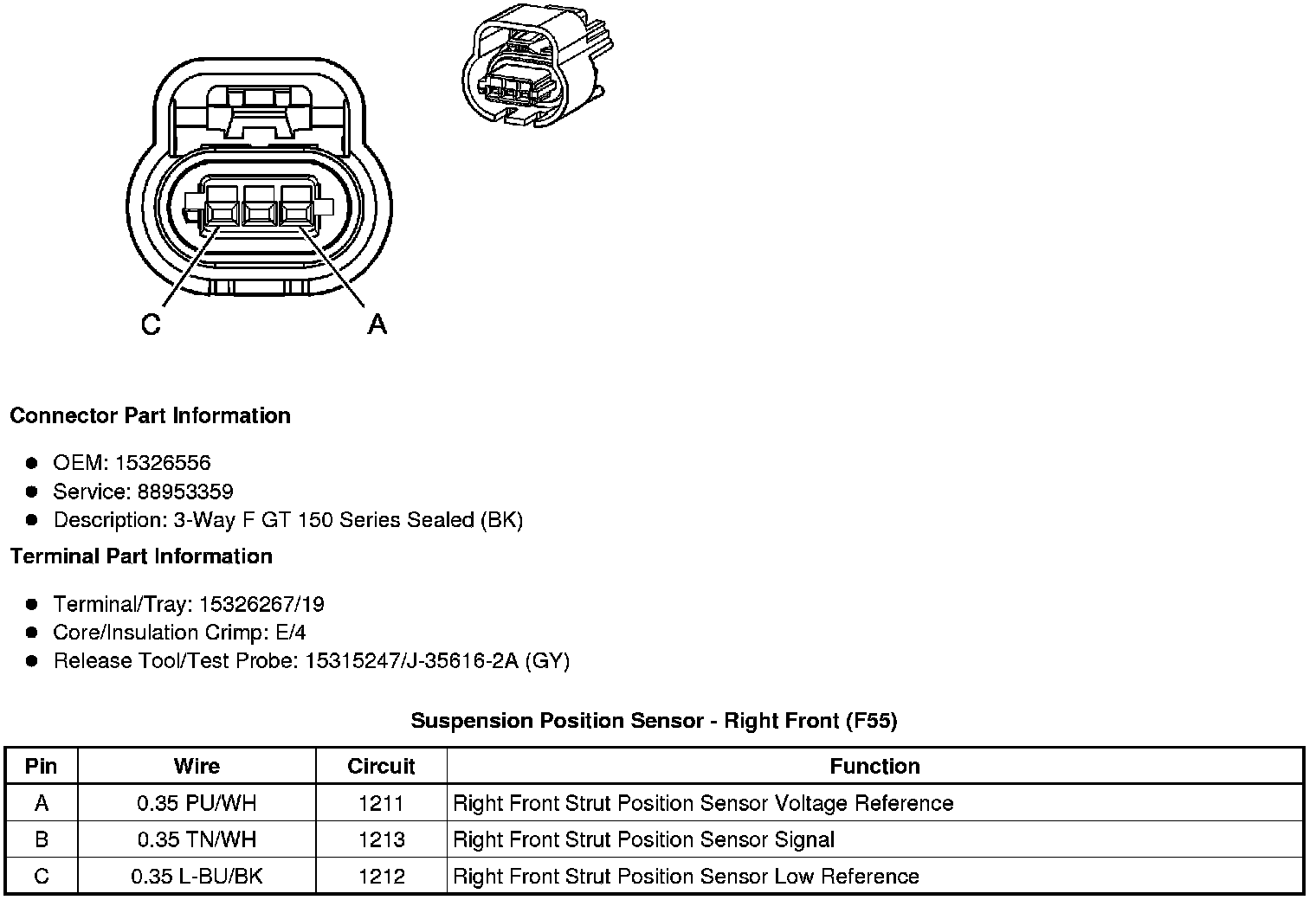

Suspension Position Sensor - Right Front (F55)

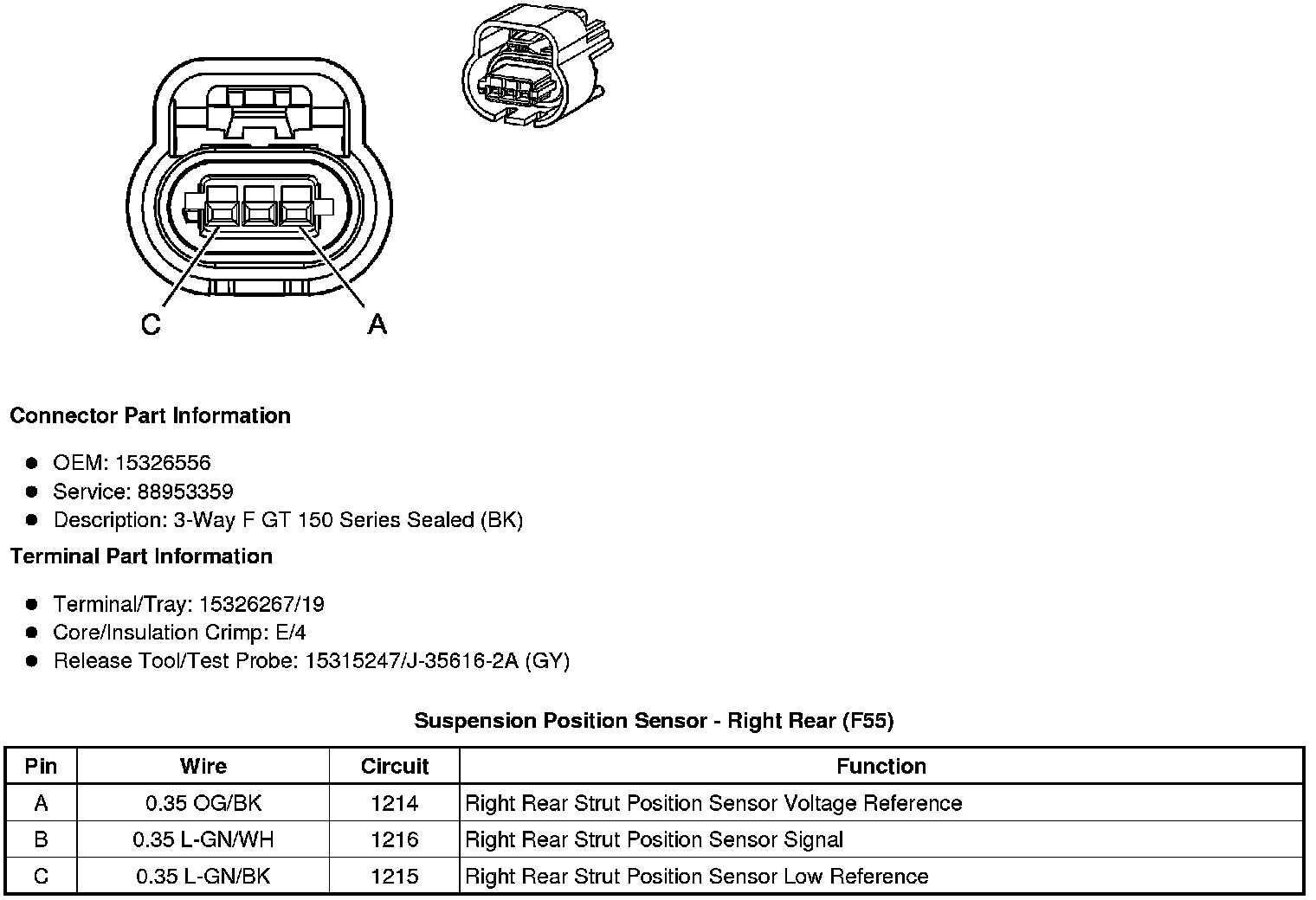

Suspension Position Sensor - Right Rear (F55)
