Power Seat Motor Position Sensor



Component Connector End Views

Seat Front Vertical Motor Position Sensor - Driver (A45)






Seat Horizontal Motor Position Sensor - Driver (A45)






Seat Lumbar Vertical Motor Position Sensor - Driver (AL2)






Seat Rear Vertical Motor Position Sensor - Driver (A45)

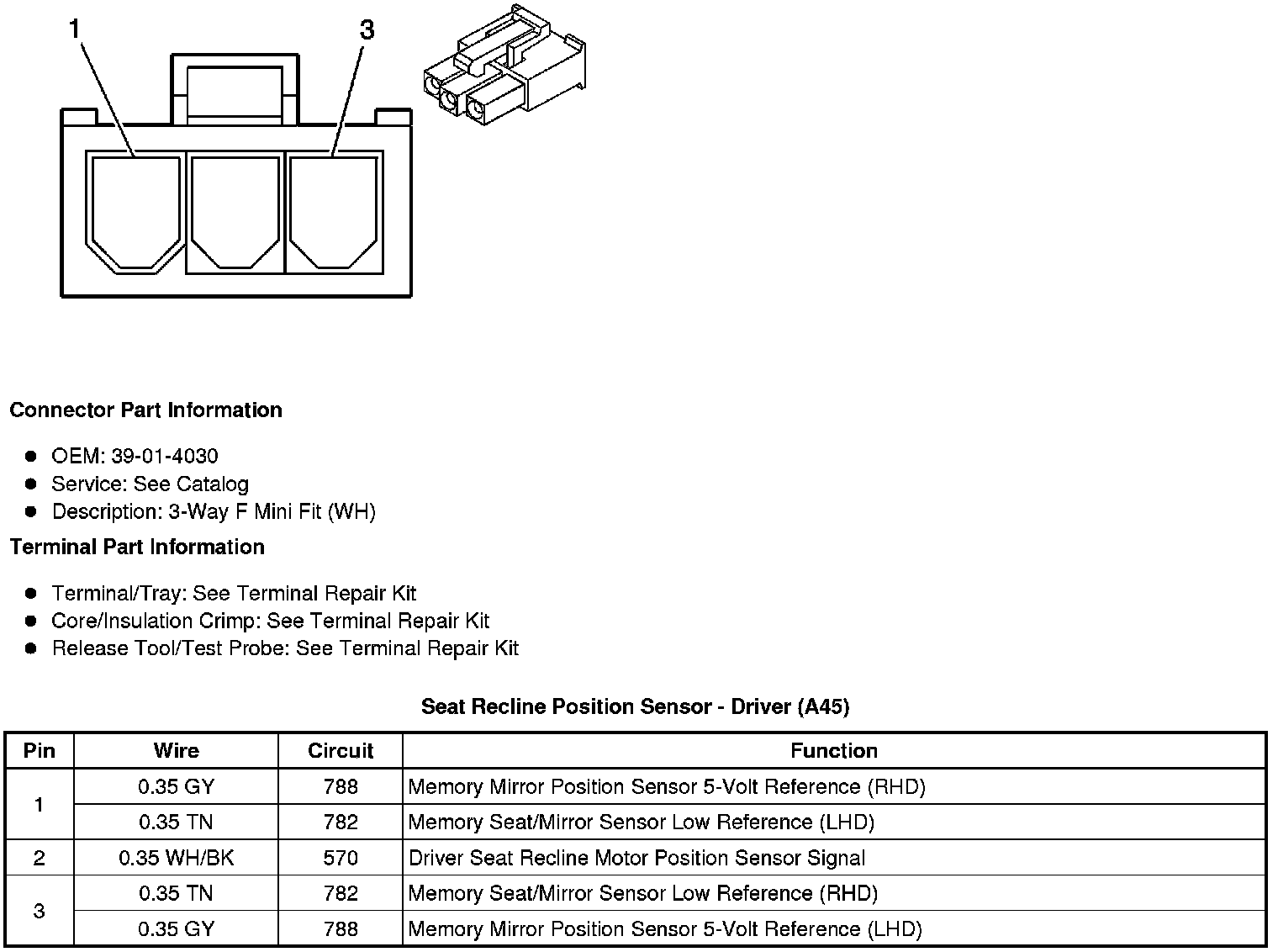

Seat Recline Position Sensor - Driver (A45)
