LEMON Manuals
: Even more car manuals for everyone
Home
>>
Cadillac
>>
2008
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pressure Sensor/Switch
Fuel Pressure Sensor/Switch
Component Connector End Views

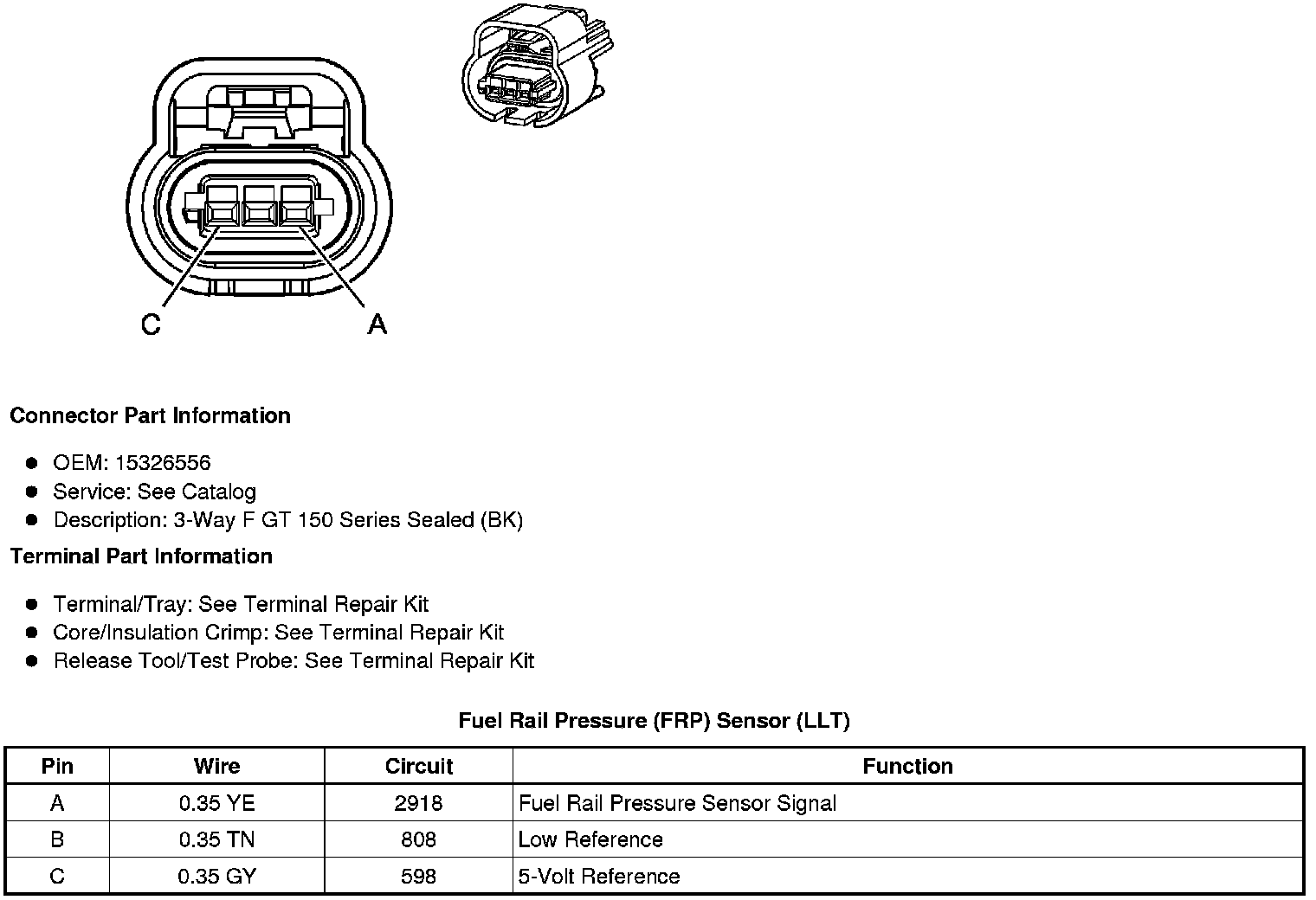

Fuel Rail Pressure (FRP) Sensor (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)
