Dimmer Switch



Component Connector End Views

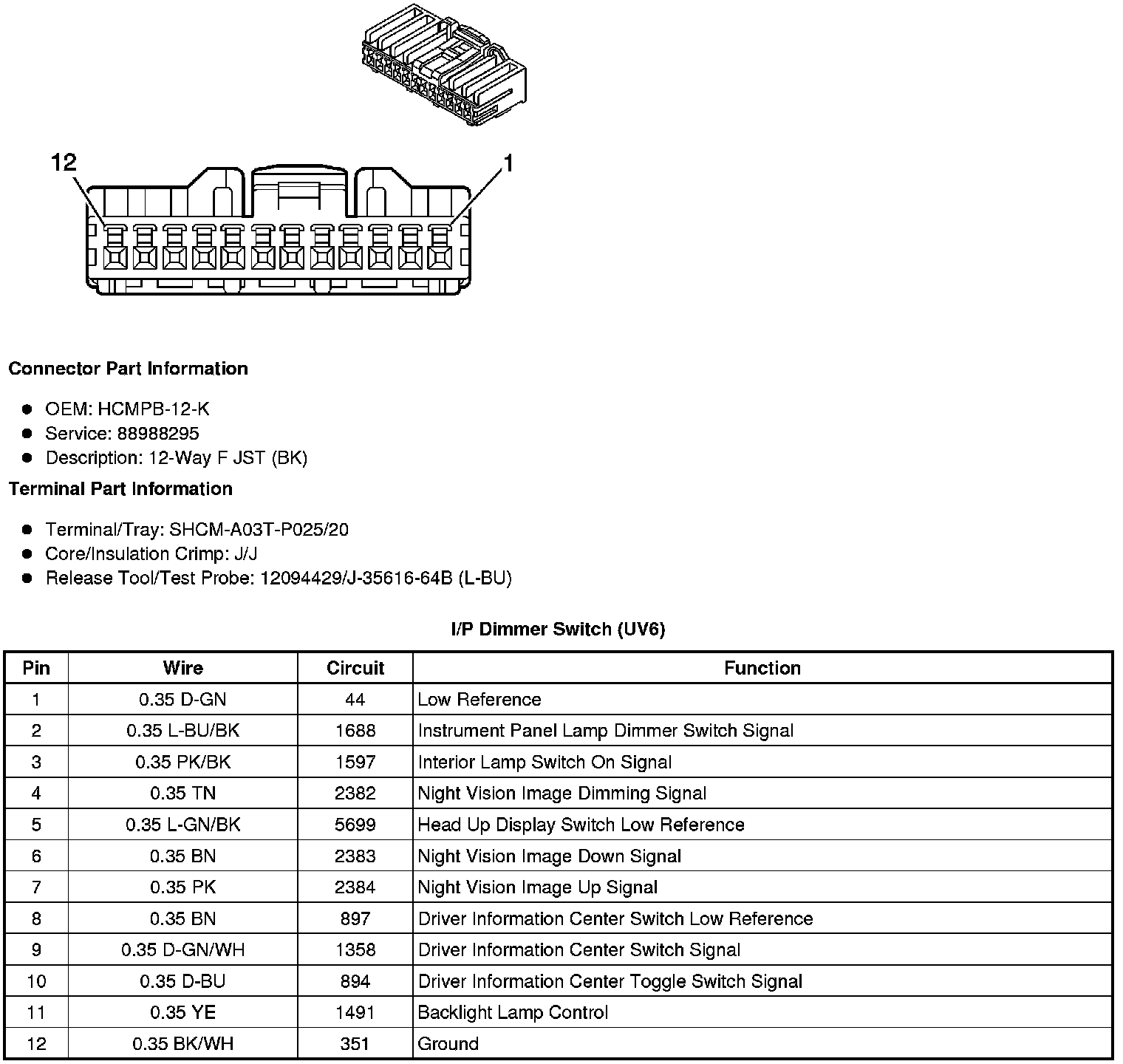

I/P Dimmer Switch (UV6)

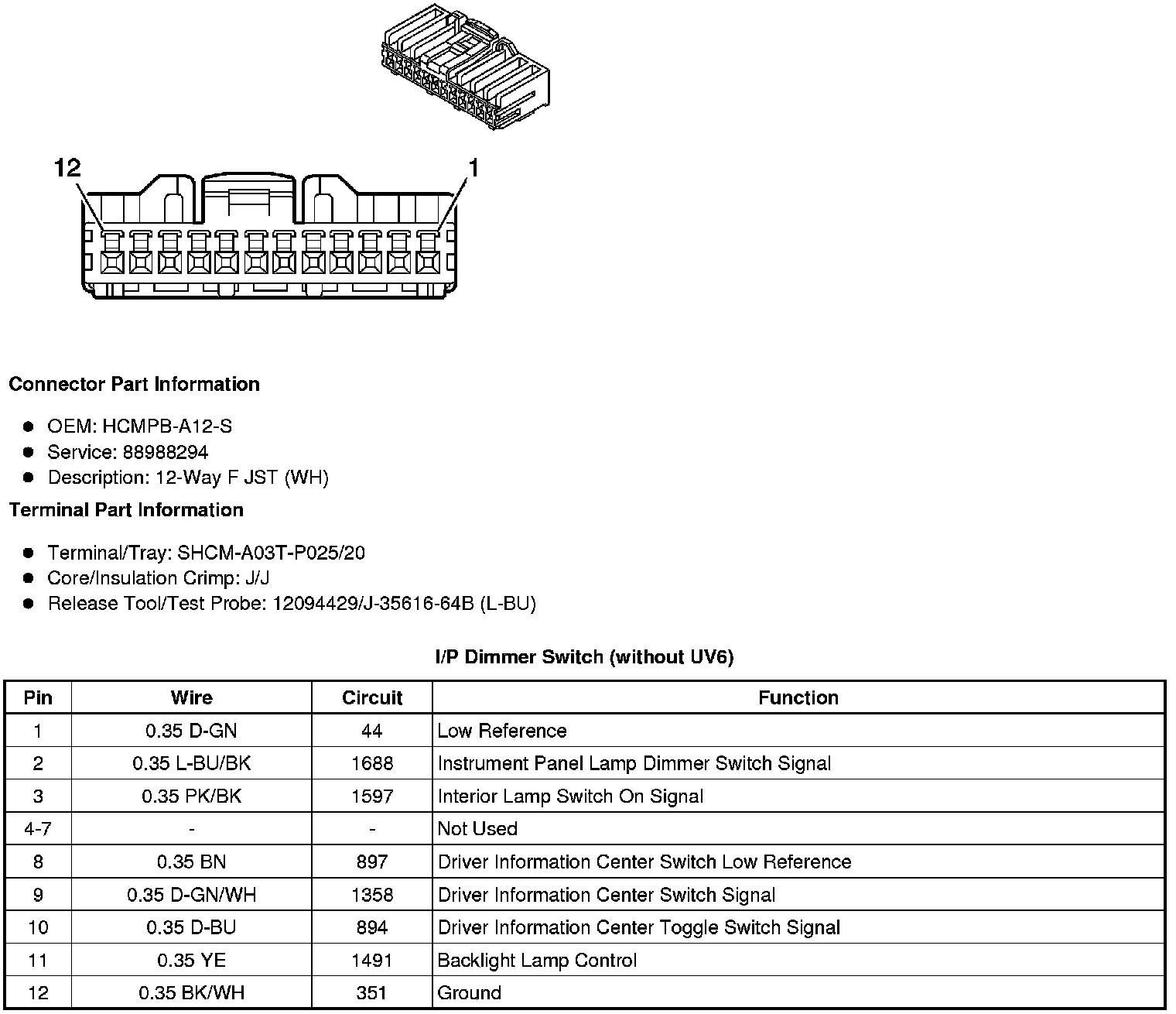

I/P Dimmer Switch (without UV6)
