Brake Fluid Pressure Sensor/Switch
Brake Fluid Pressure Sensor/Switch
Component Connector End Views

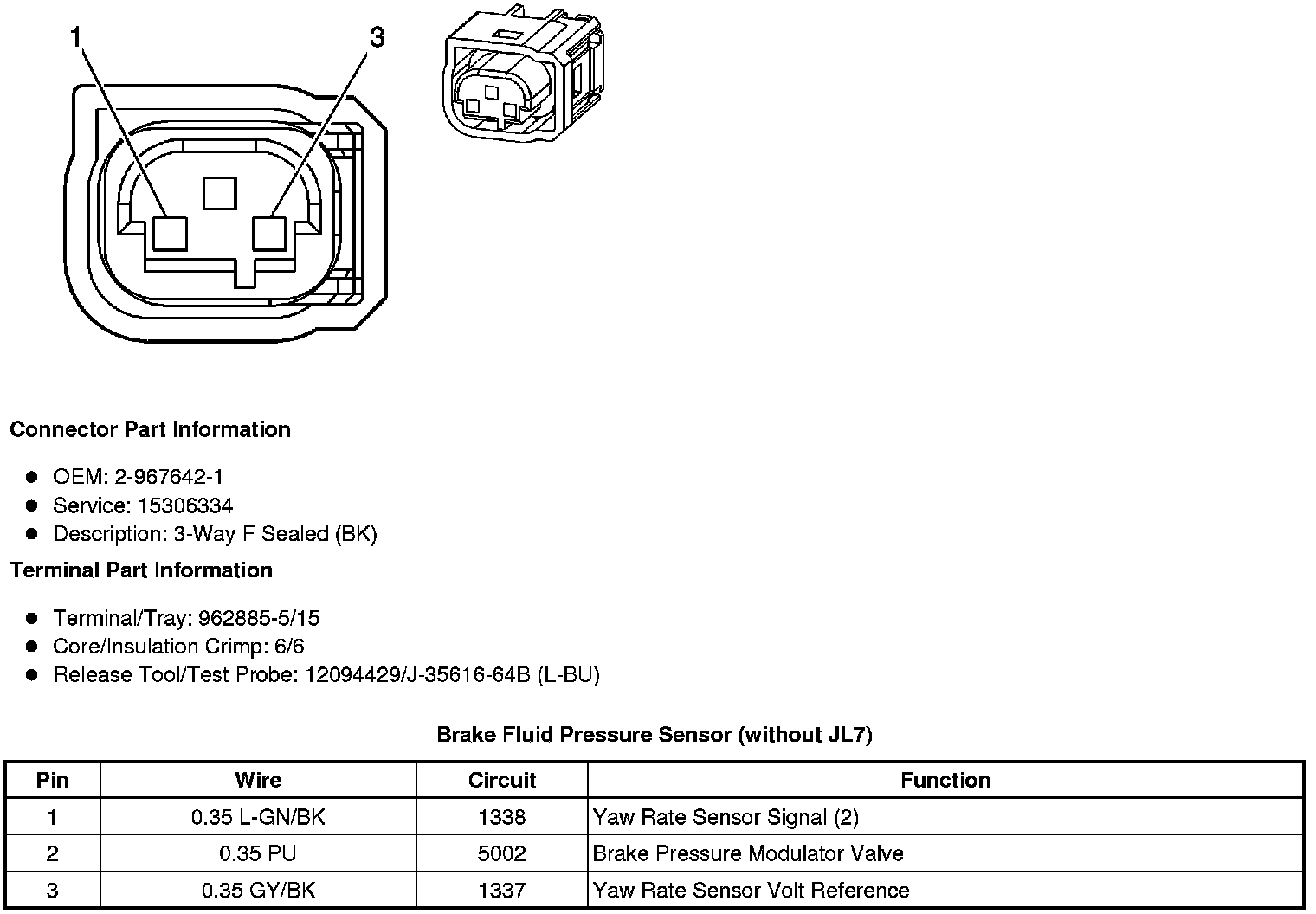

Brake Fluid Pressure Sensor (without JL7)
