Oil Pump, Engine

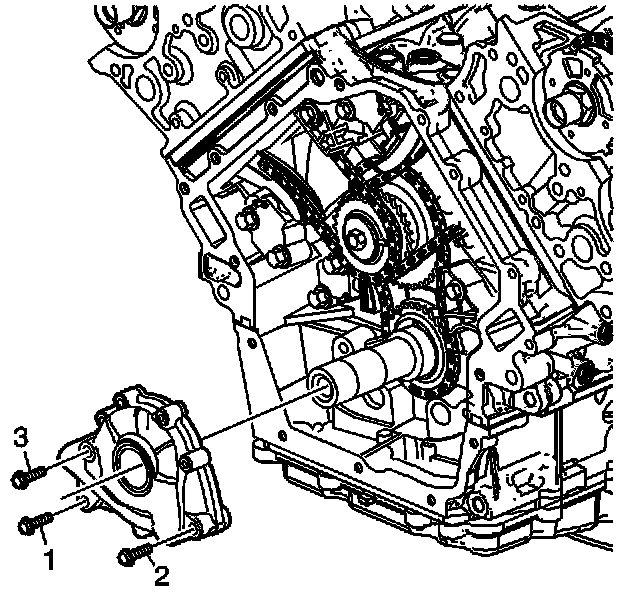

Apply upward pressure on the pump while tightening the three retaining bolts. Tighten the bolts in the sequence (1, 2, 3) shown.
1. First Pass 10 N.m (89 lb in).
2. Final Pass an additional 35 degrees
Apply upward pressure on the pump while tightening the three retaining bolts. Tighten the bolts in the sequence (1, 2, 3) shown.
1. First Pass 10 N.m (89 lb in).
2. Final Pass an additional 35 degrees
