Steering Mounted Controls Assembly



Component Connector End Views

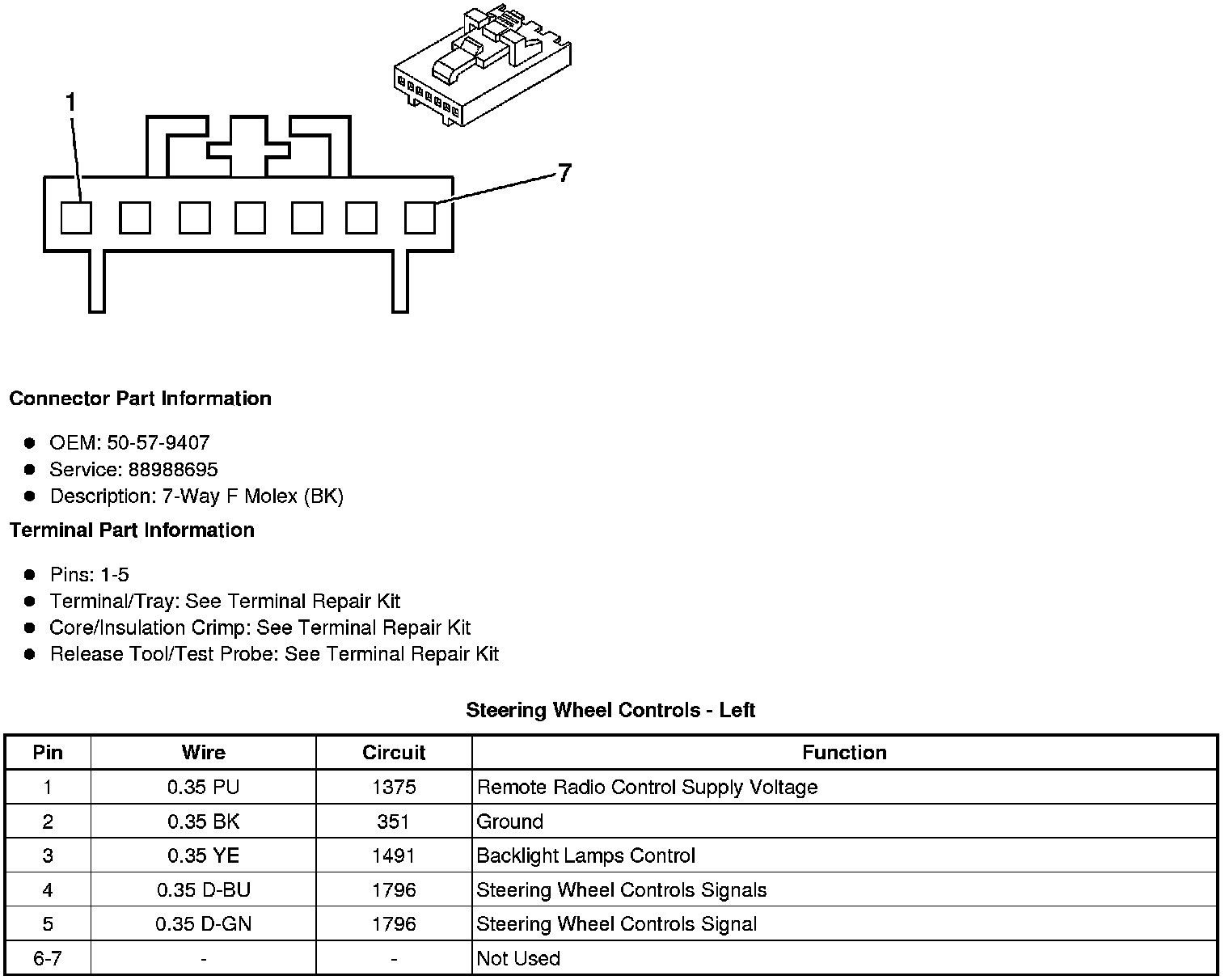

Steering Wheel Controls - Left






Steering Wheel Controls - Right
