Power Window Switch



Component Connector End Views

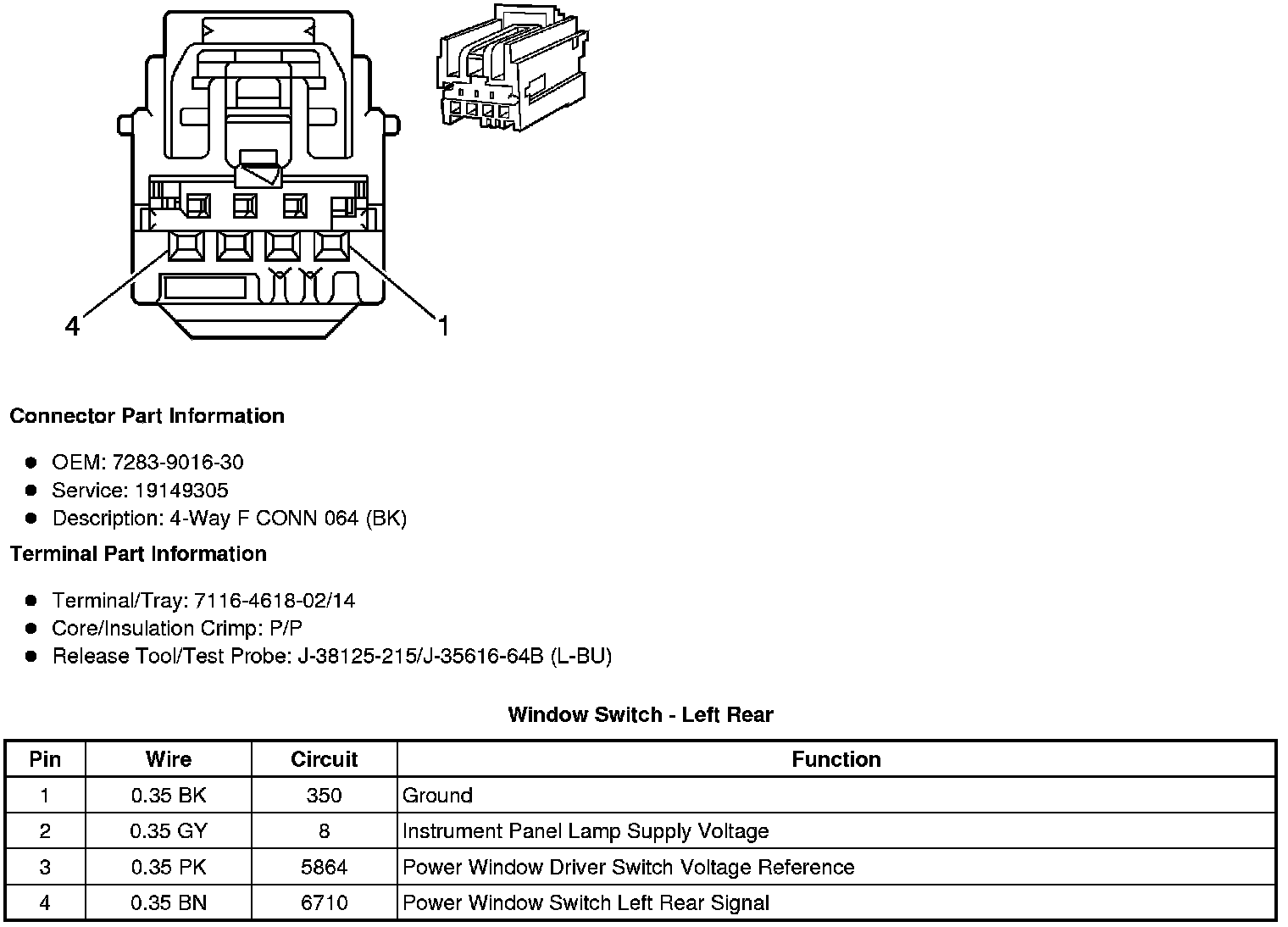

Window Switch - Left Rear

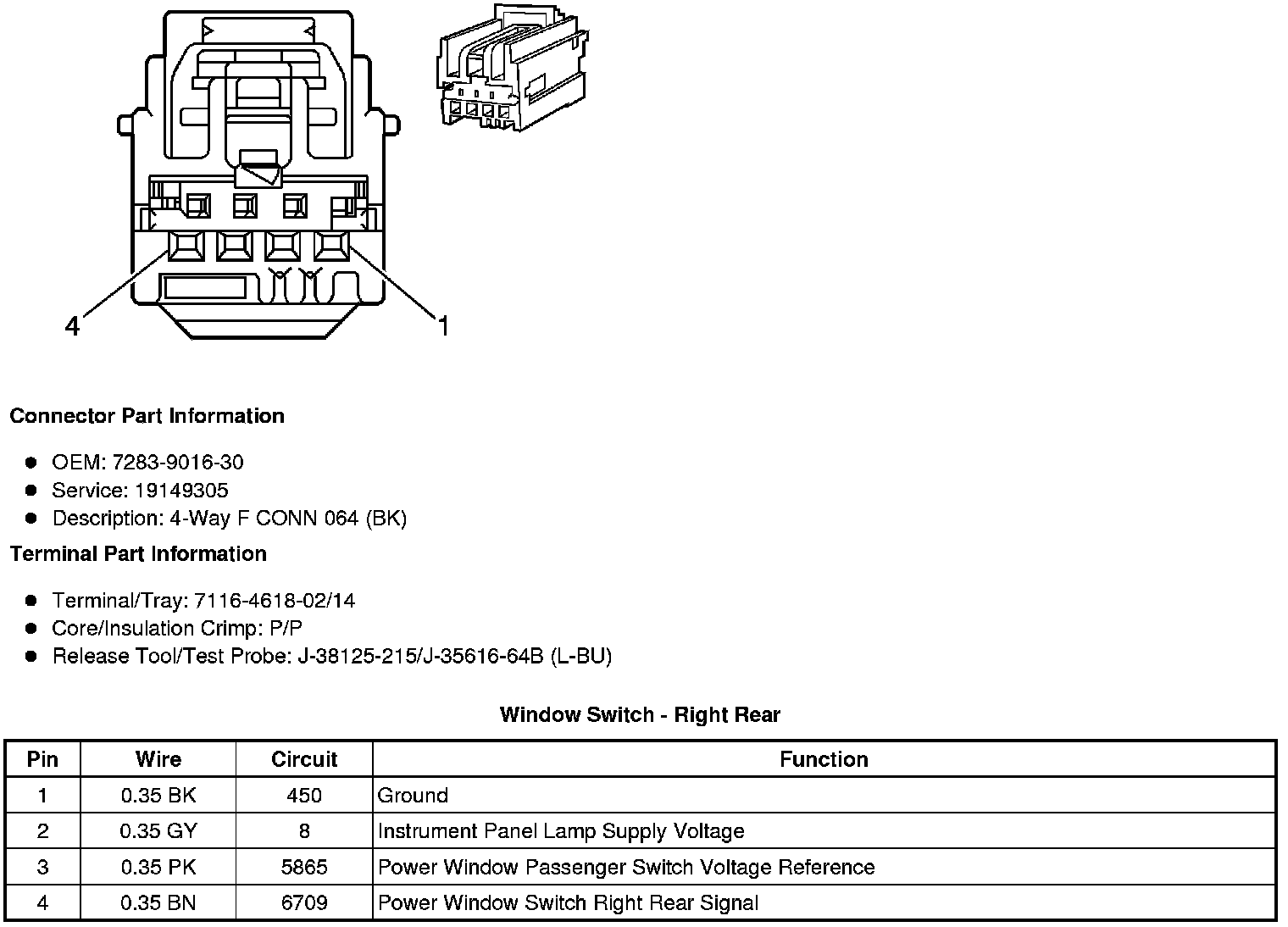

Window Switch - Right Rear
