Cadillac
>>
2008
>>
SRX AWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Acceleration/Deceleration Sensor
Acceleration/Deceleration Sensor

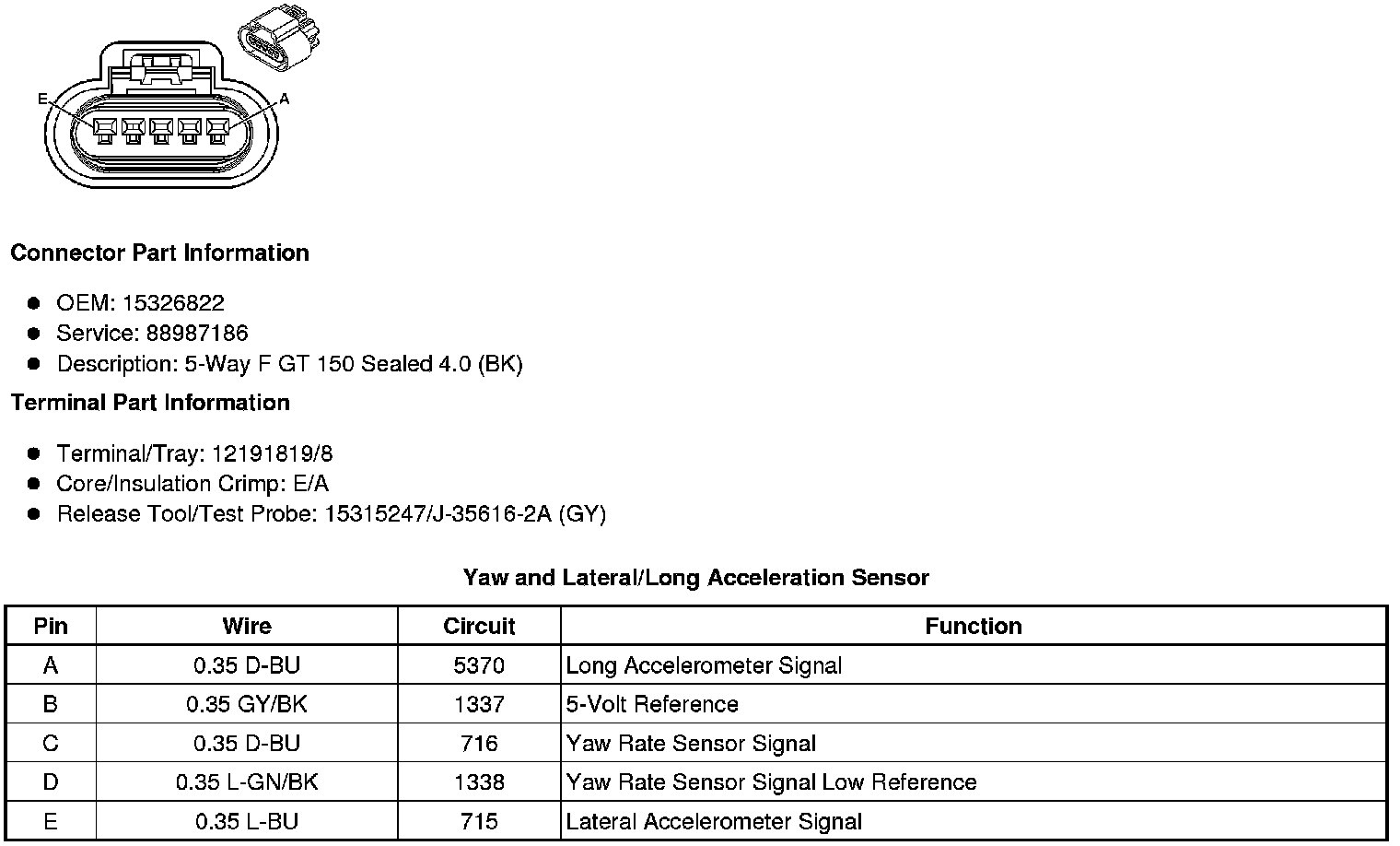

Component Connector End Views
Yaw and Lateral/Long Acceleration Sensor
