Oxygen Sensor: Locations



Wheels/Vehicle Underbody Component Views

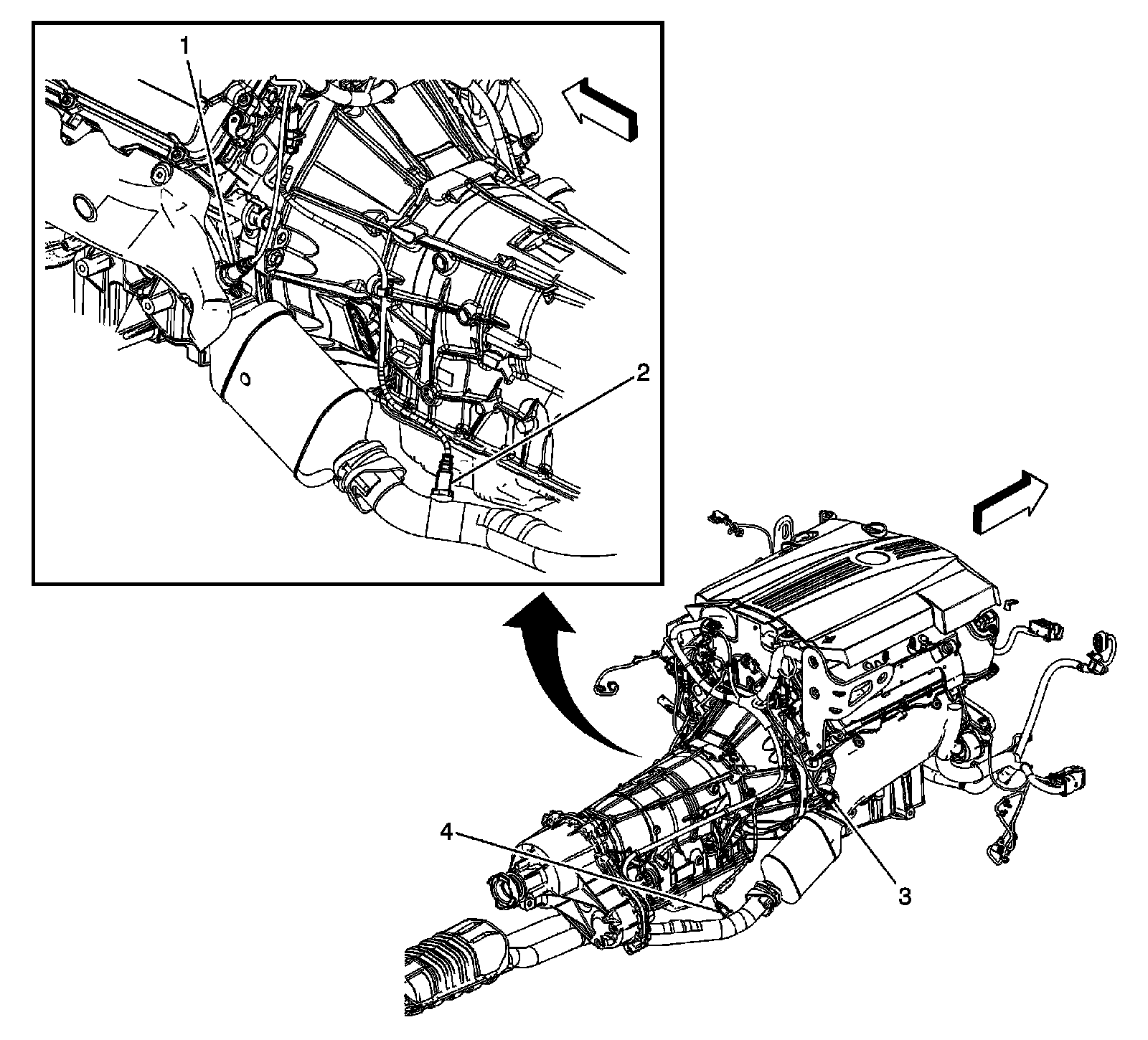

Heated Oxygen Sensors (Typical)




1 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (LH2 - Gas, 8 Cylinder, 4.6L, SFI, V8, DOHC, HO)
2 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (LH2 - Gas, 8 Cylinder, 4.6L, SFI, V8, DOHC, HO)
3 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (LH2 - Gas, 8 Cylinder, 4.6L, SFI, V8, DOHC, HO)
4 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (LH2 - Gas, 8 Cylinder, 4.6L, SFI, V8, DOHC, HO)
