Timing Components: Specifications
Crankshaft Balancer BoltFirst Pass 100 Nm (74 lb ft.)
Final Pass 150°
Tensioner Bolt 50 Nm (37 lb ft.)
Engine Front Cover Bolts* 23 Nm (17 lb ft)

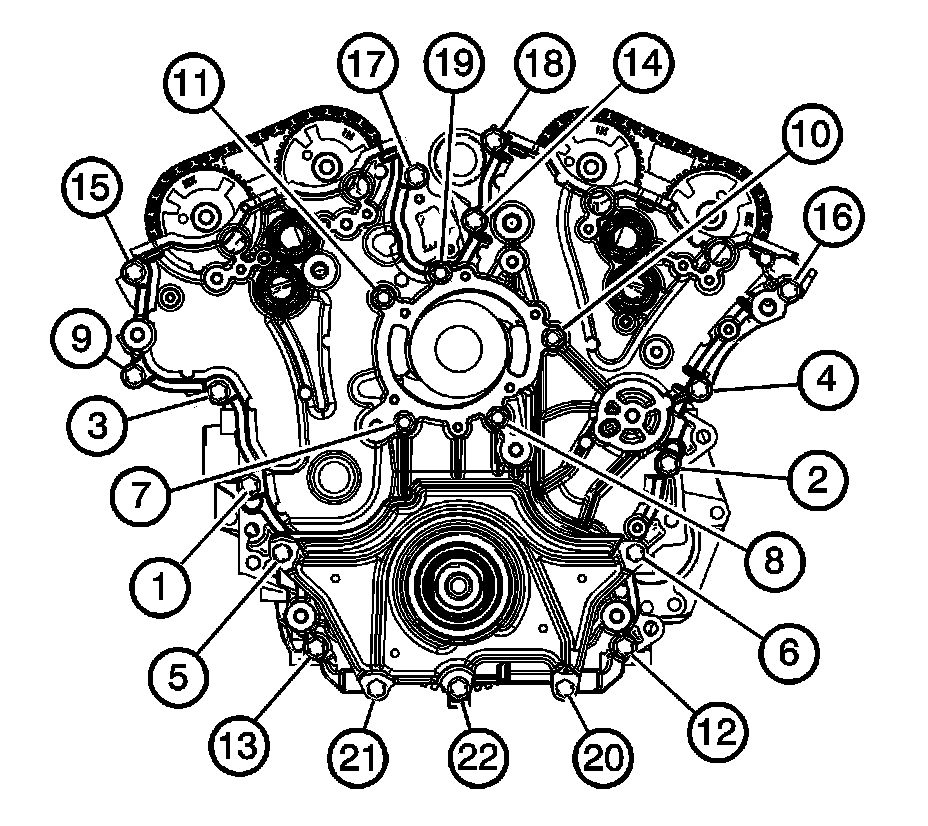

* Tighten the engine front cover bolts in the sequence shown (1-22).
First Pass 100 Nm (74 lb ft.)
Final Pass 150°
Tensioner Bolt 50 Nm (37 lb ft.)
Engine Front Cover Bolts* 23 Nm (17 lb ft)
* Tighten the engine front cover bolts in the sequence shown (1-22).
