Electrical Diagrams



Automatic Transmission Controls Schematics

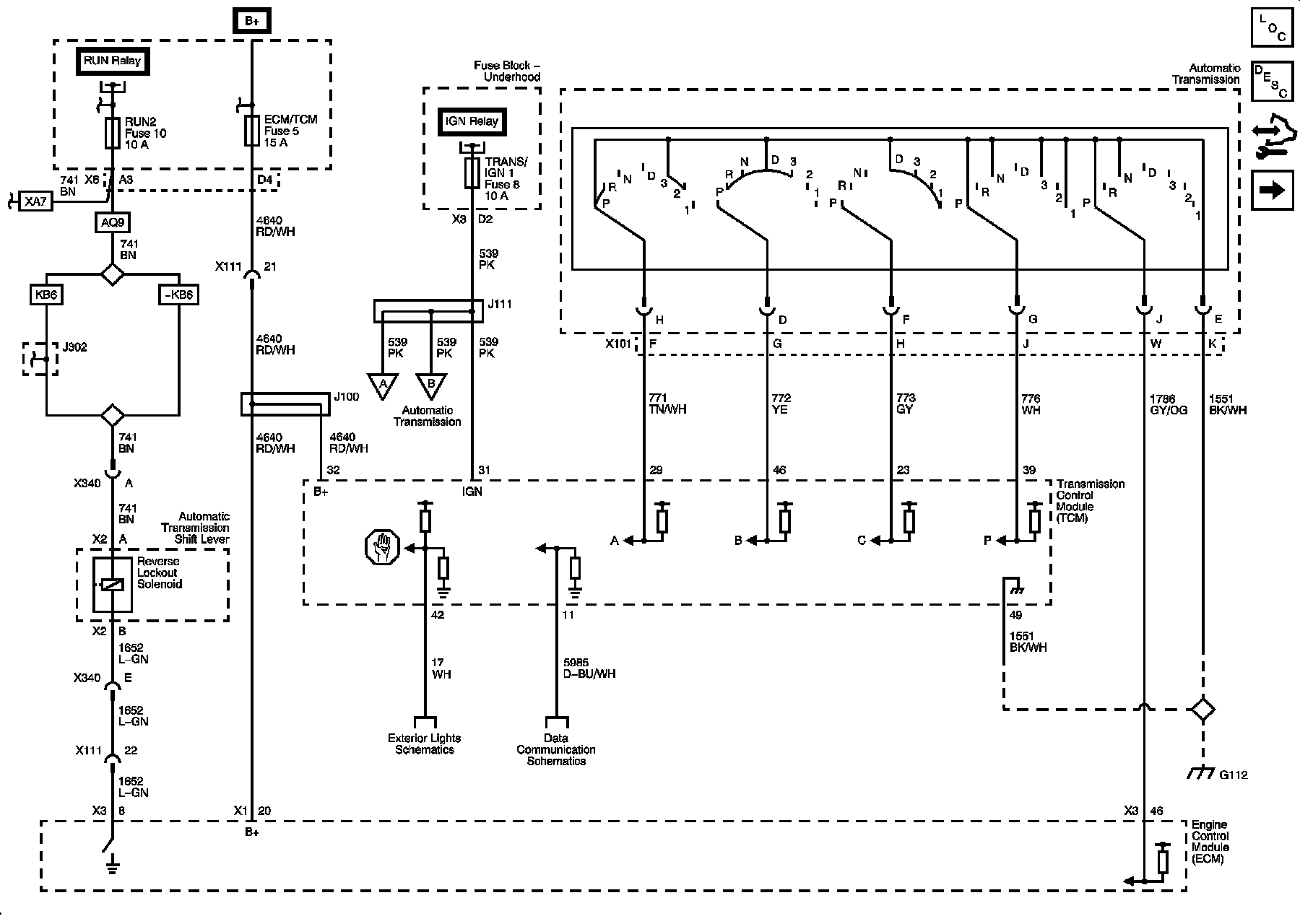

TCM Power and Ground

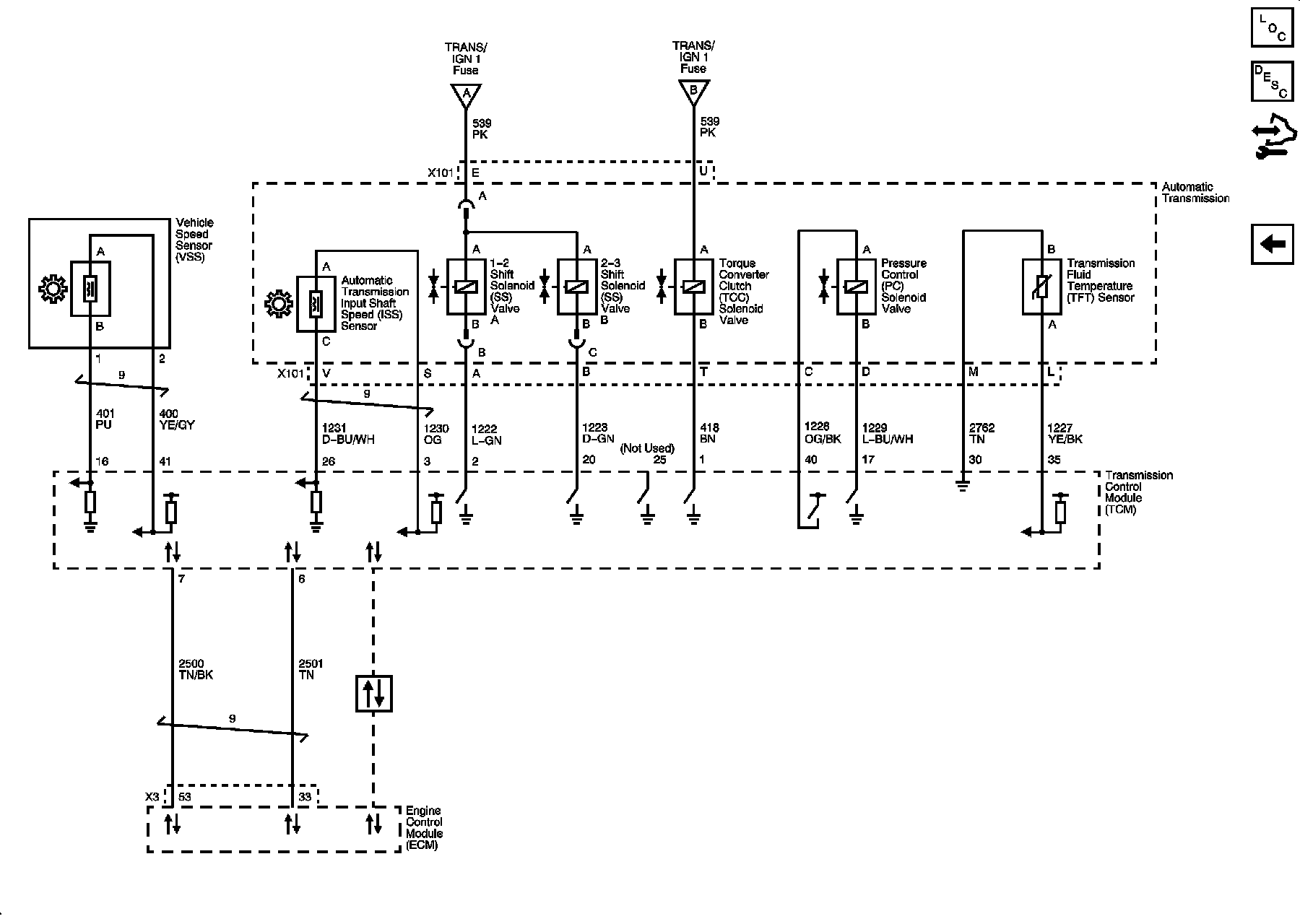

Transmission Solenoids and VSS
