Home
>>
Cadillac
>>
2008
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control ( Automatic - Electronic )
>>
Suspension Control Module
>>
Automatic Level Control Module (FE1)
Automatic Level Control Module (FE1)

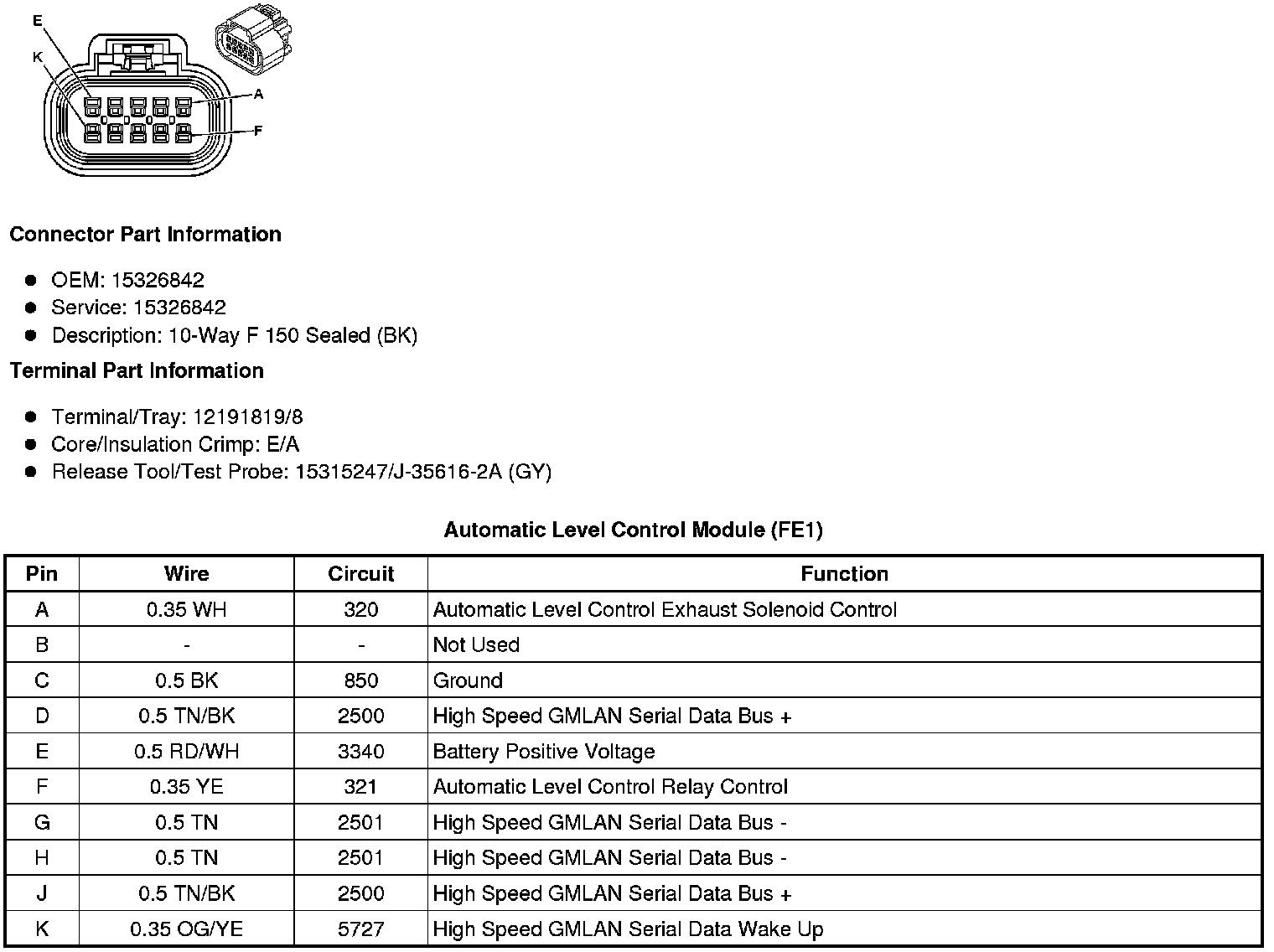

Component Connector End Views
Automatic Level Control Module (FE1)
