Seat Temperature Control Module
>>
Seat Back Ventilation Heat and Cool Module - Driver (KB6)
Seat Back Ventilation Heat and Cool Module - Driver (KB6)

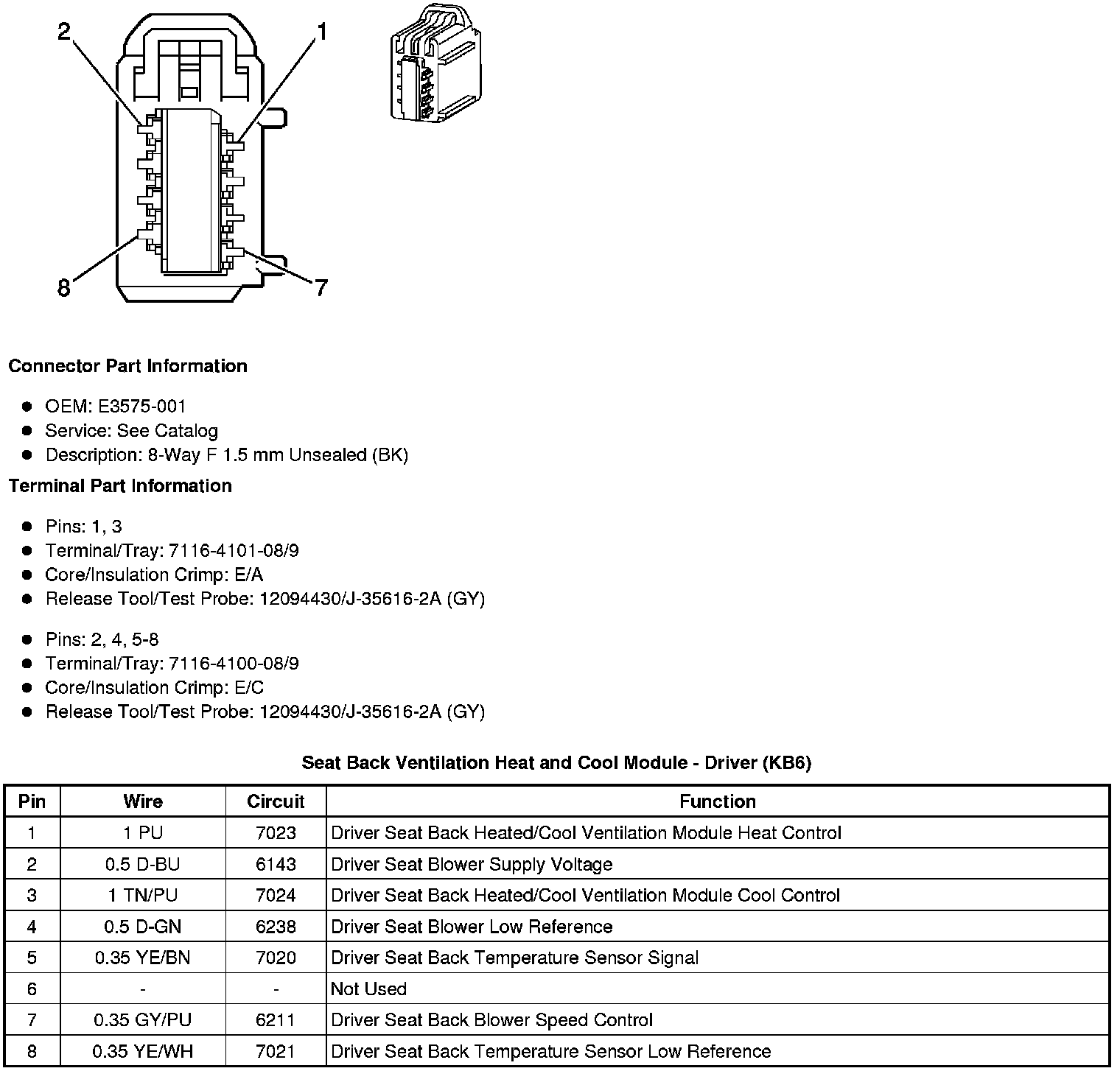

Component Connector End Views
Seat Back Ventilation Heat and Cool Module - Driver (KB6)
