Parking Assist Control Module
>>
Front and Rear Object Alarm Module (UFR) X2
Front and Rear Object Alarm Module (UFR) X2

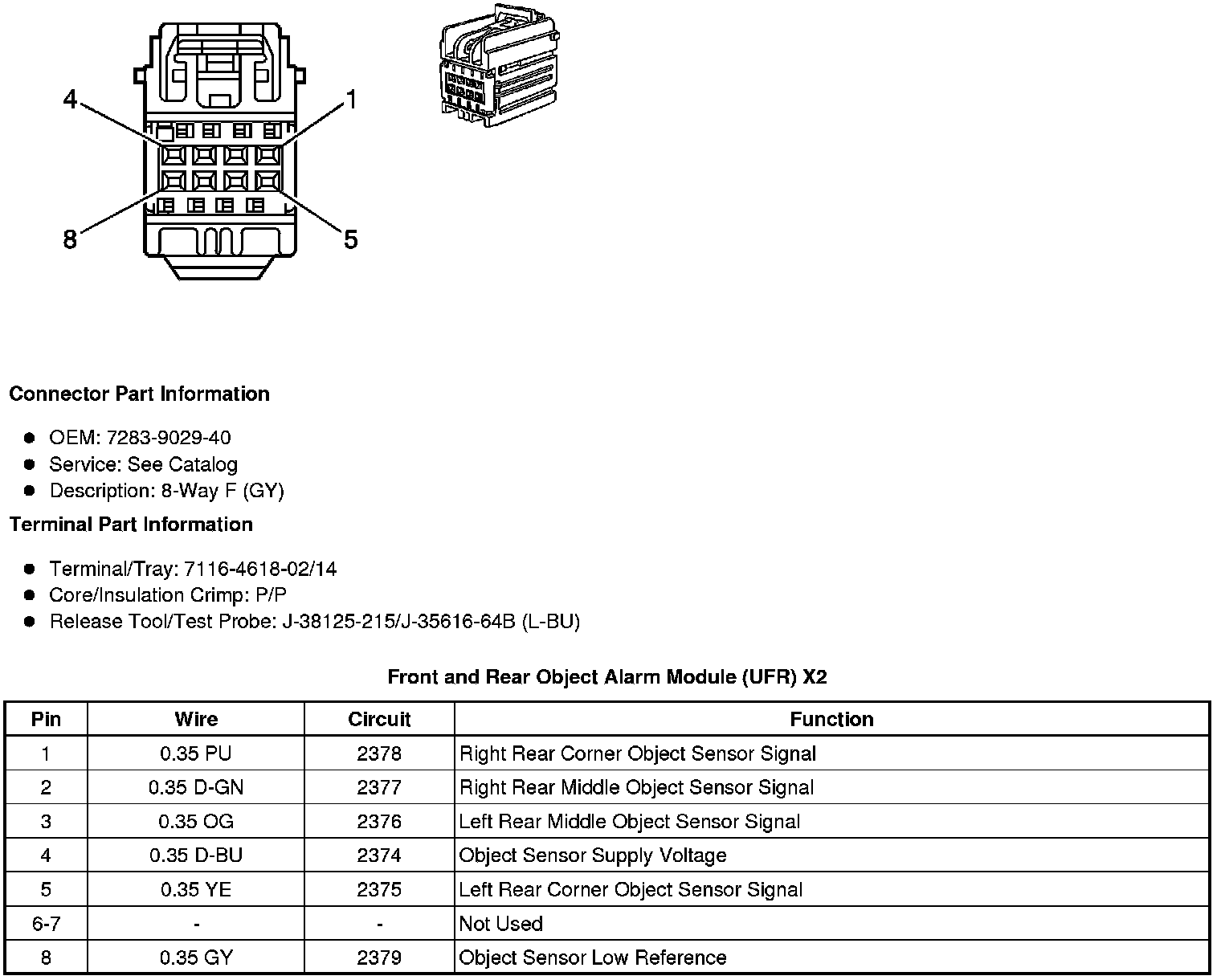

Component Connector End Views
Front and Rear Object
Alarm Module
(UFR) X2
