Home >> Cadillac >> 2008 >> DTS V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lateral Accelerometer

Lateral Accelerometer

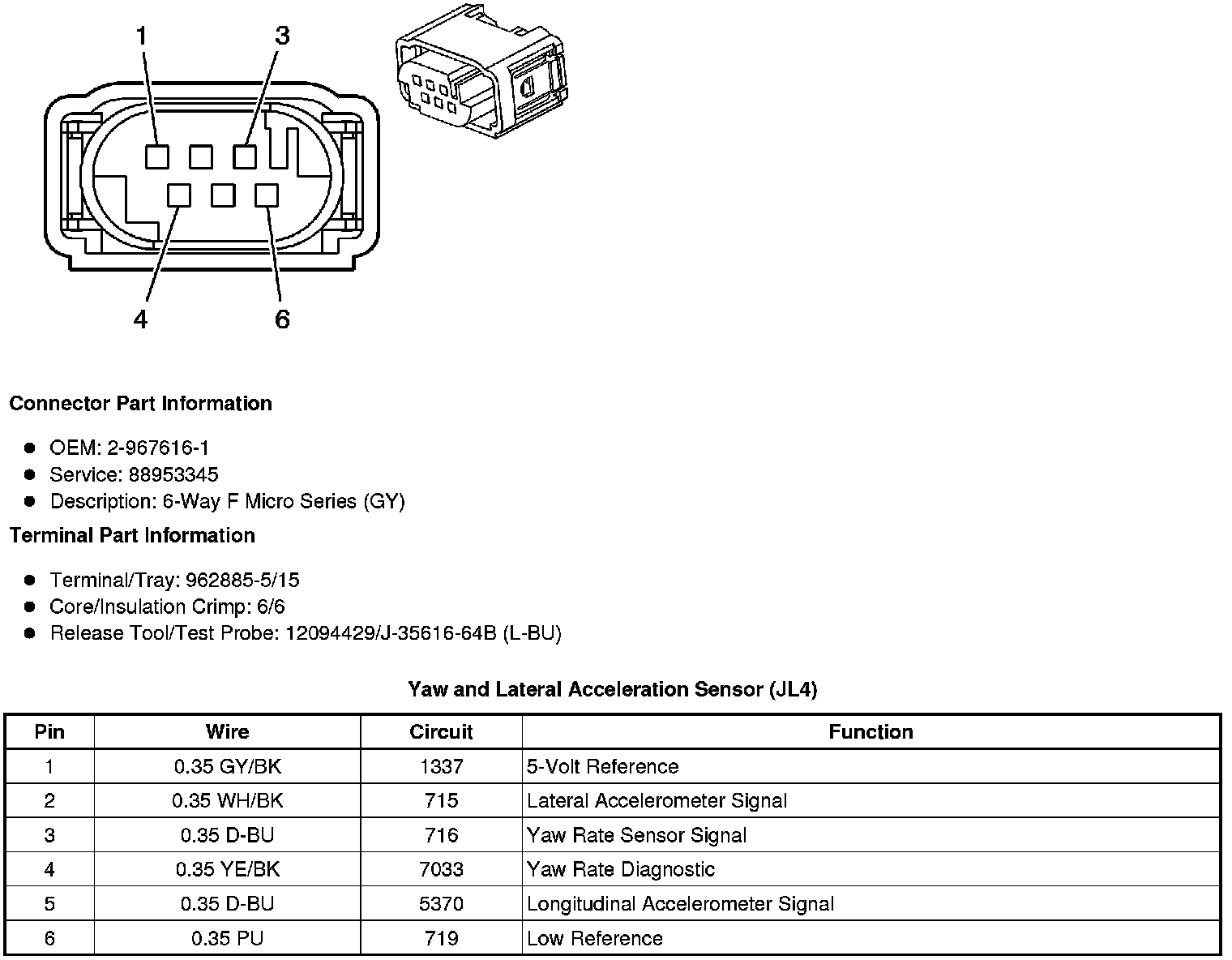

Component Connector End Views

Yaw and Lateral Acceleration Sensor (JL4)
