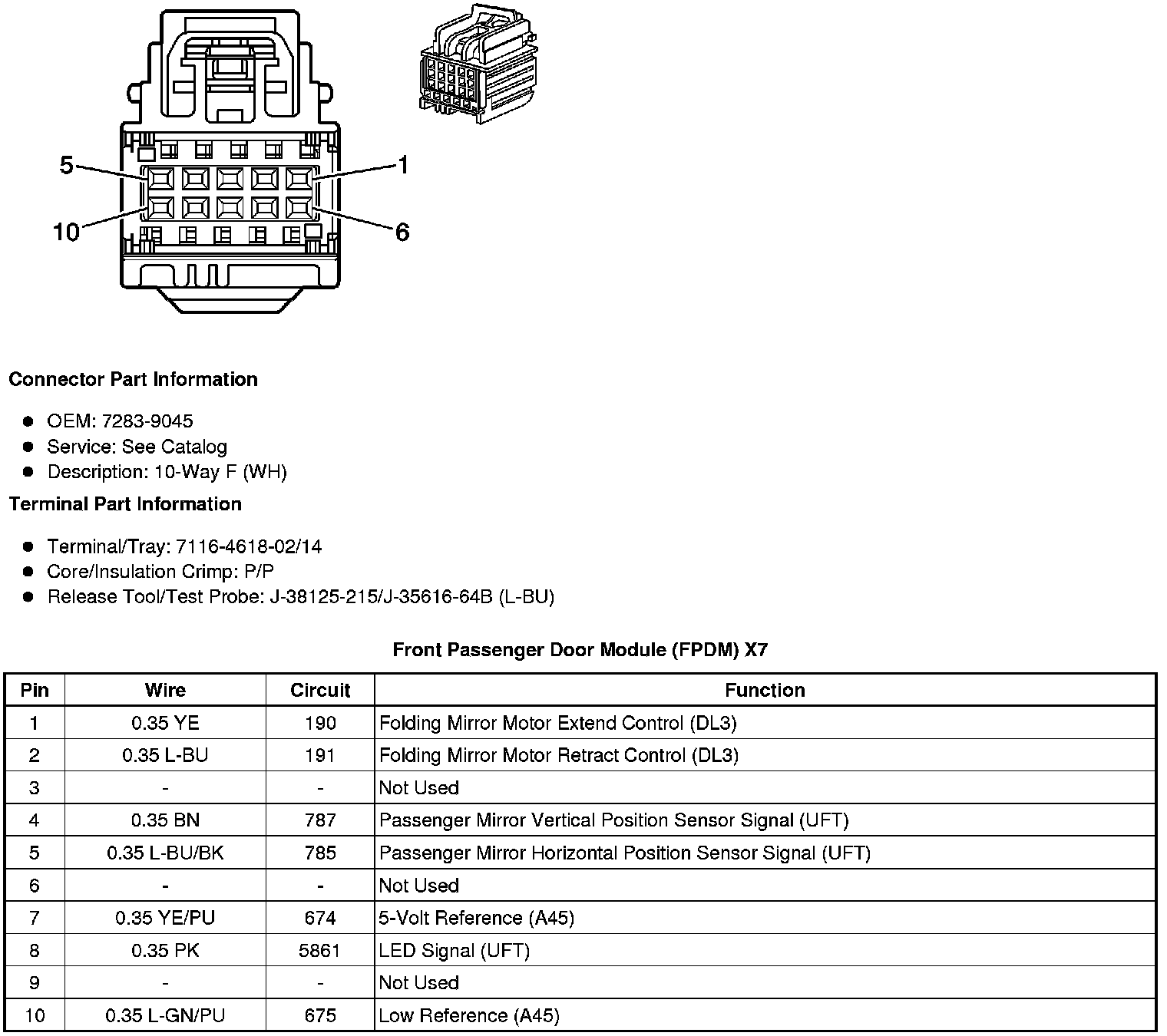

Front Passenger Door Module (FPDM) X7



Component Connector End Views

Front Passenger Door Module (FPDM) X7
