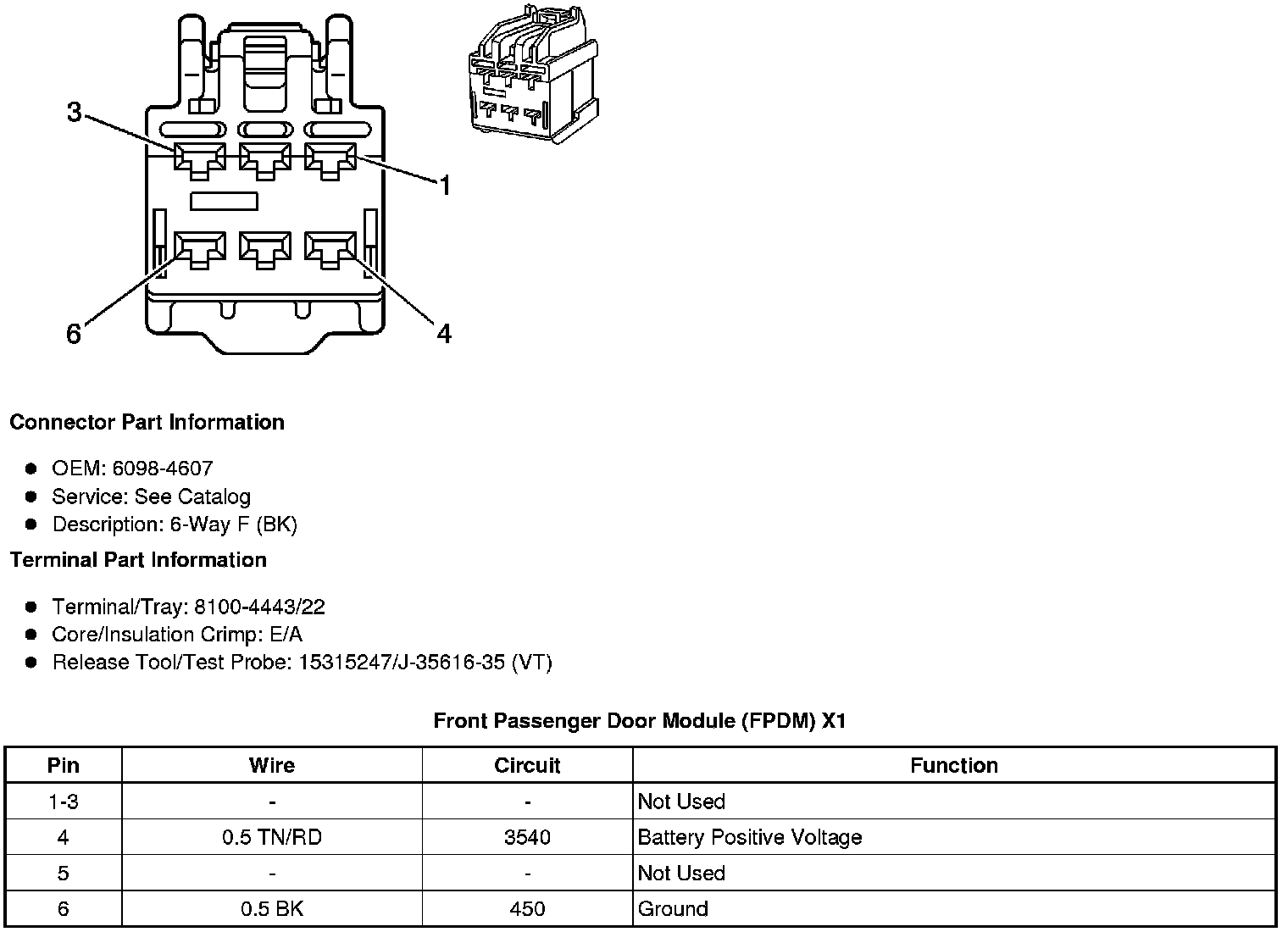

Front Passenger Door Module (FPDM) X1



Component Connector End Views

Front Passenger Door Module (FPDM) X1
