Combination Switch
>>
Turn Signal/Multifunction Switch X1
Turn Signal/Multifunction Switch X1

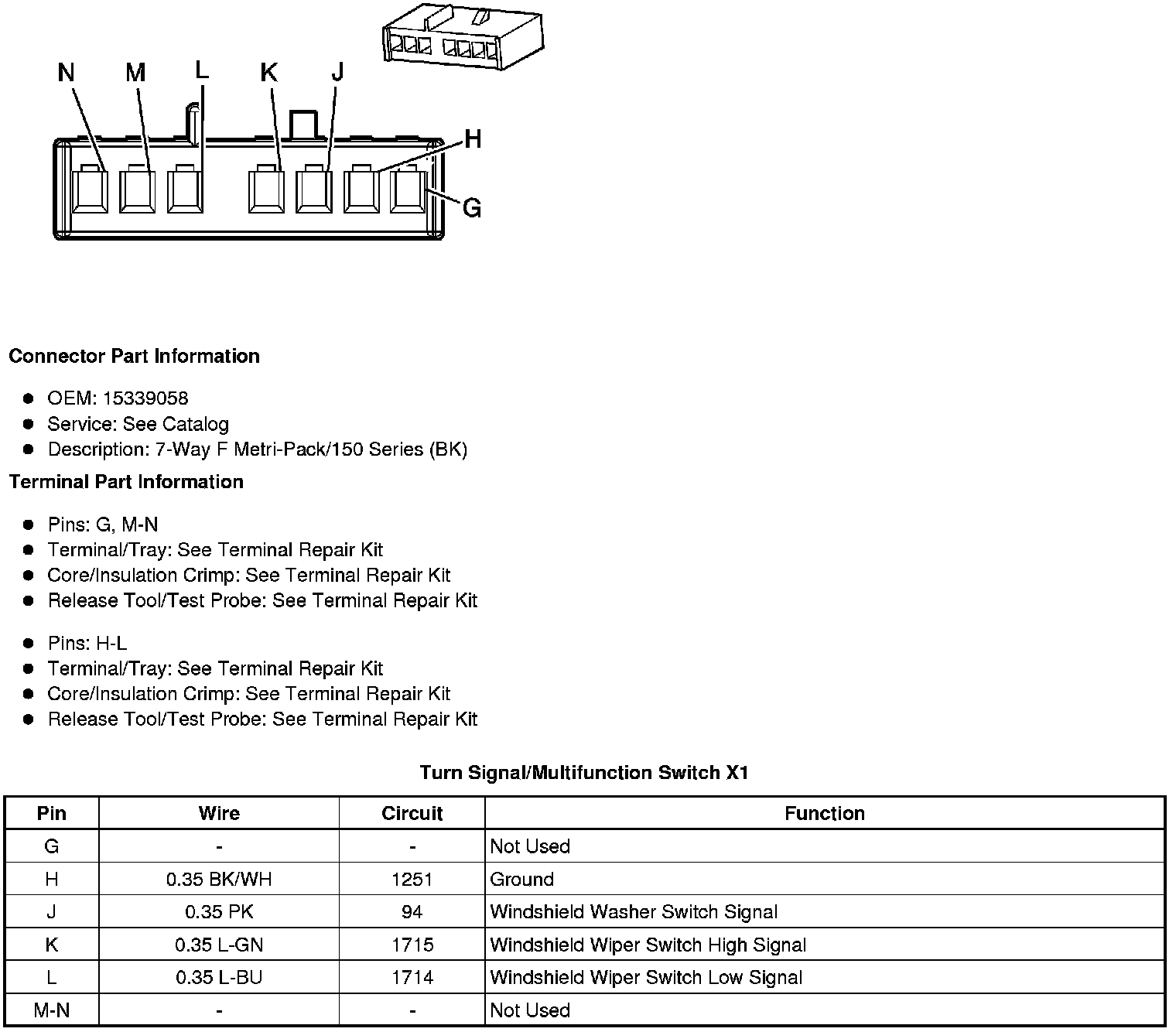

Component Connector End Views
Turn Signal/Multifunction Switch X1
