Home >> Cadillac >> 2008 >> CTS AWD V6-3.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Camshaft Position Sensor >> Diagrams >> Connector Views

Connector Views

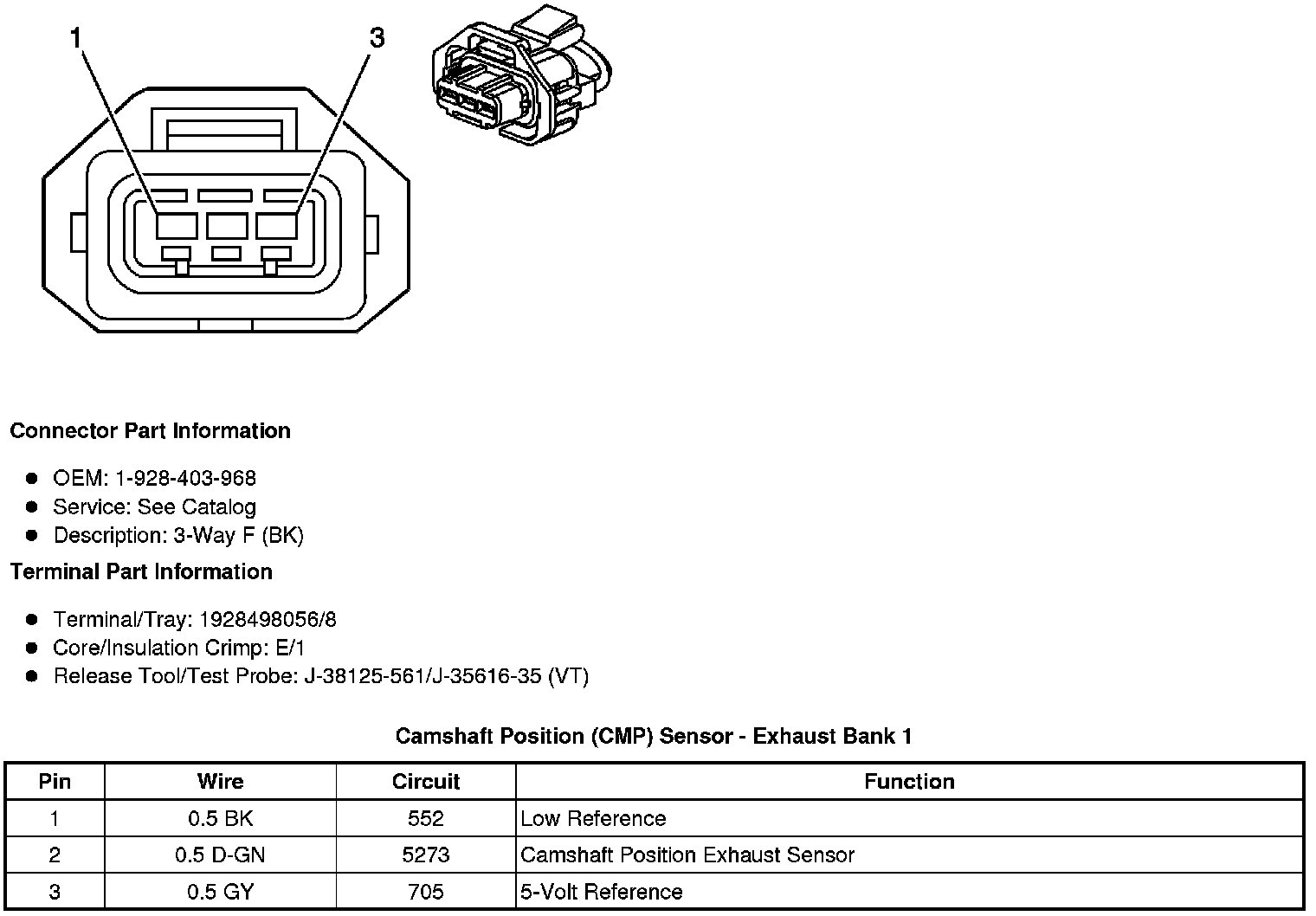

Camshaft Position (CMP) Sensor - Exhaust Bank 1






Camshaft Position (CMP) Sensor - Exhaust Bank 2






Camshaft Position (CMP) Sensor - Intake Bank 1






Camshaft Position (CMP) Sensor - Intake Bank 2
