Body Control Systems



Body Control System Schematics

Body Control Module (BCM) Power, Grounds

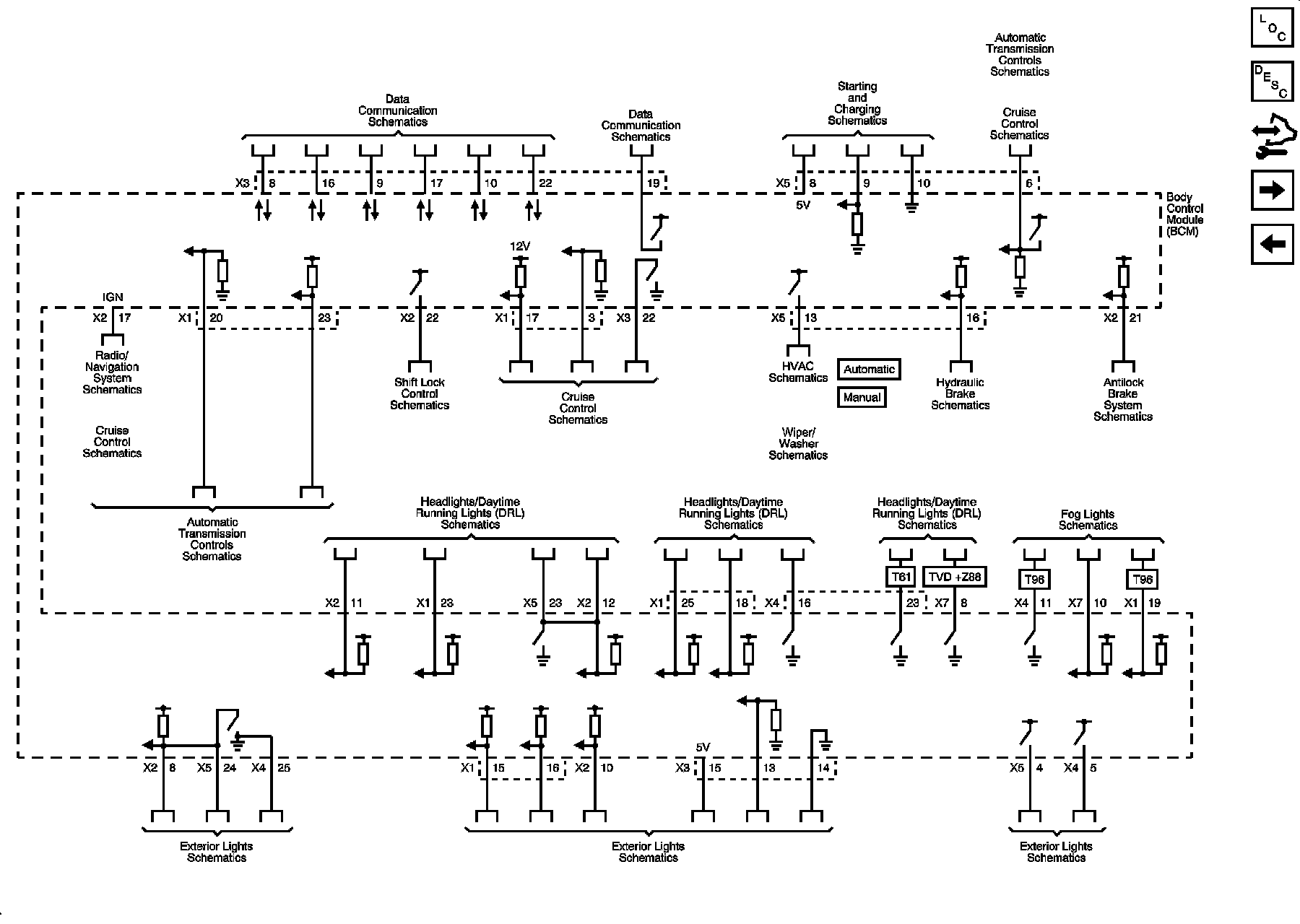

Subsystem References 1 of 3

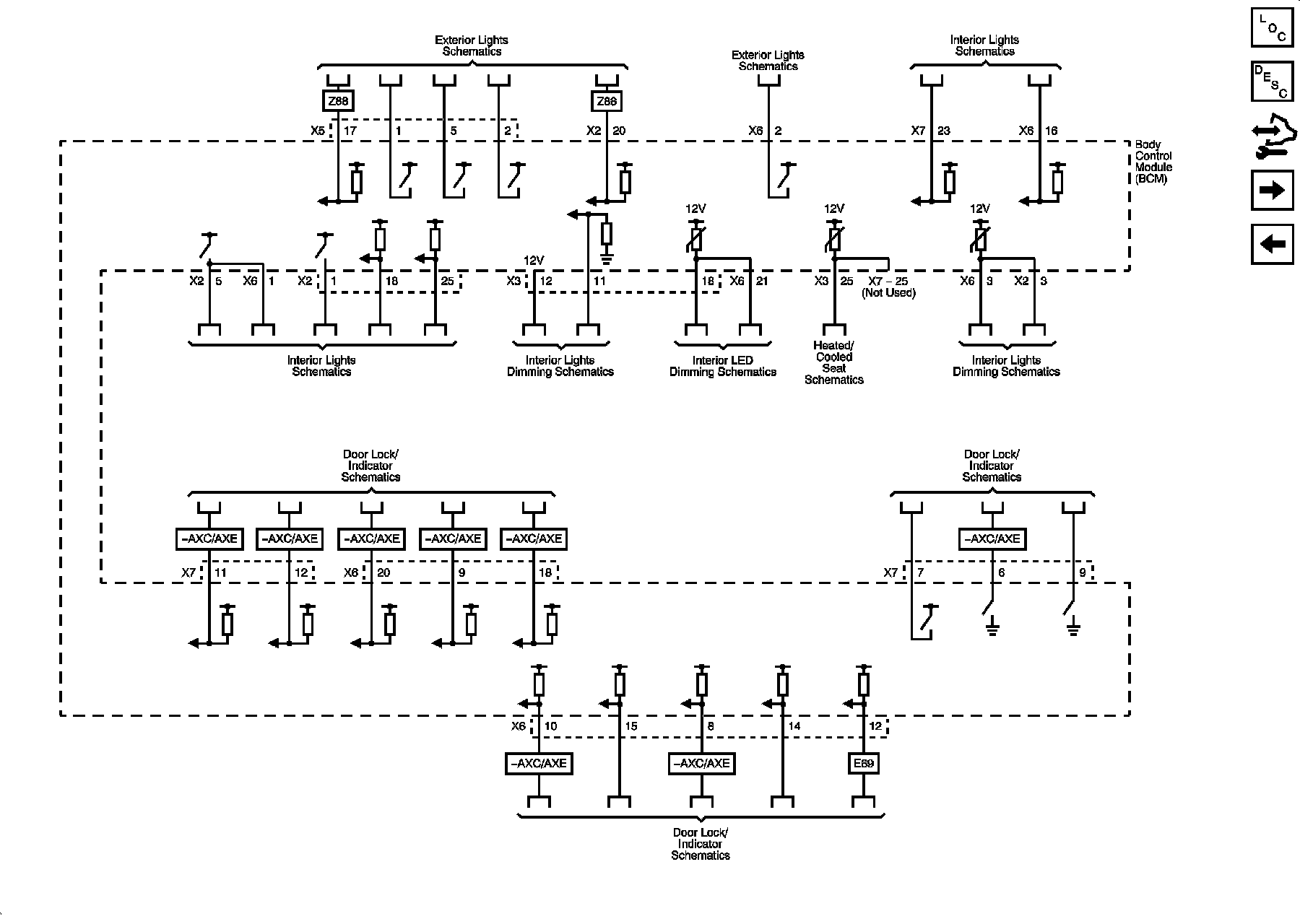

Subsystem References 2 of 3





Subsystem References 3 of 3
