Home >> Cadillac >> 2008 >> CTS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signal Switch

Turn Signal Switch

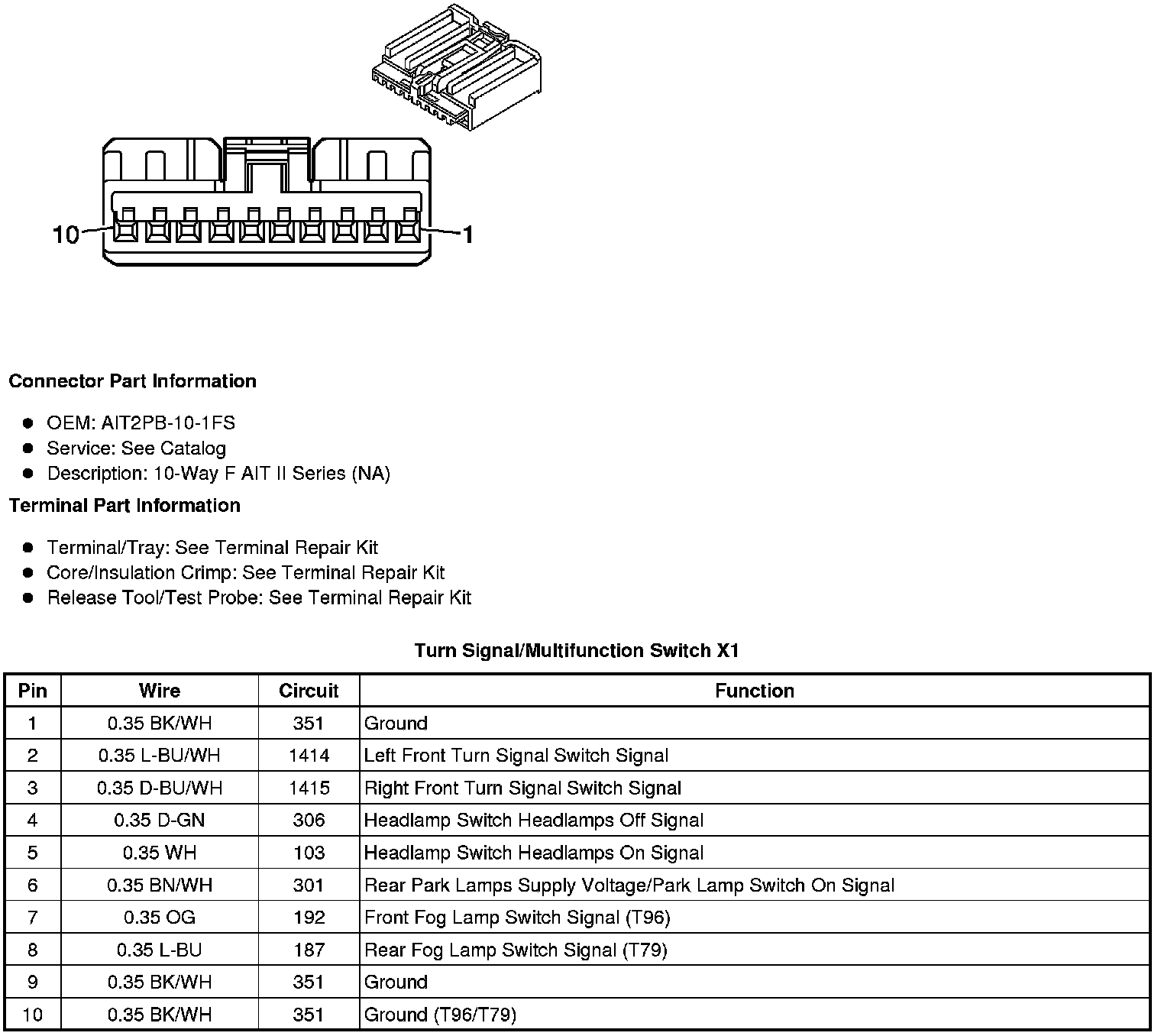

Turn Signal/Multifunction Switch X1

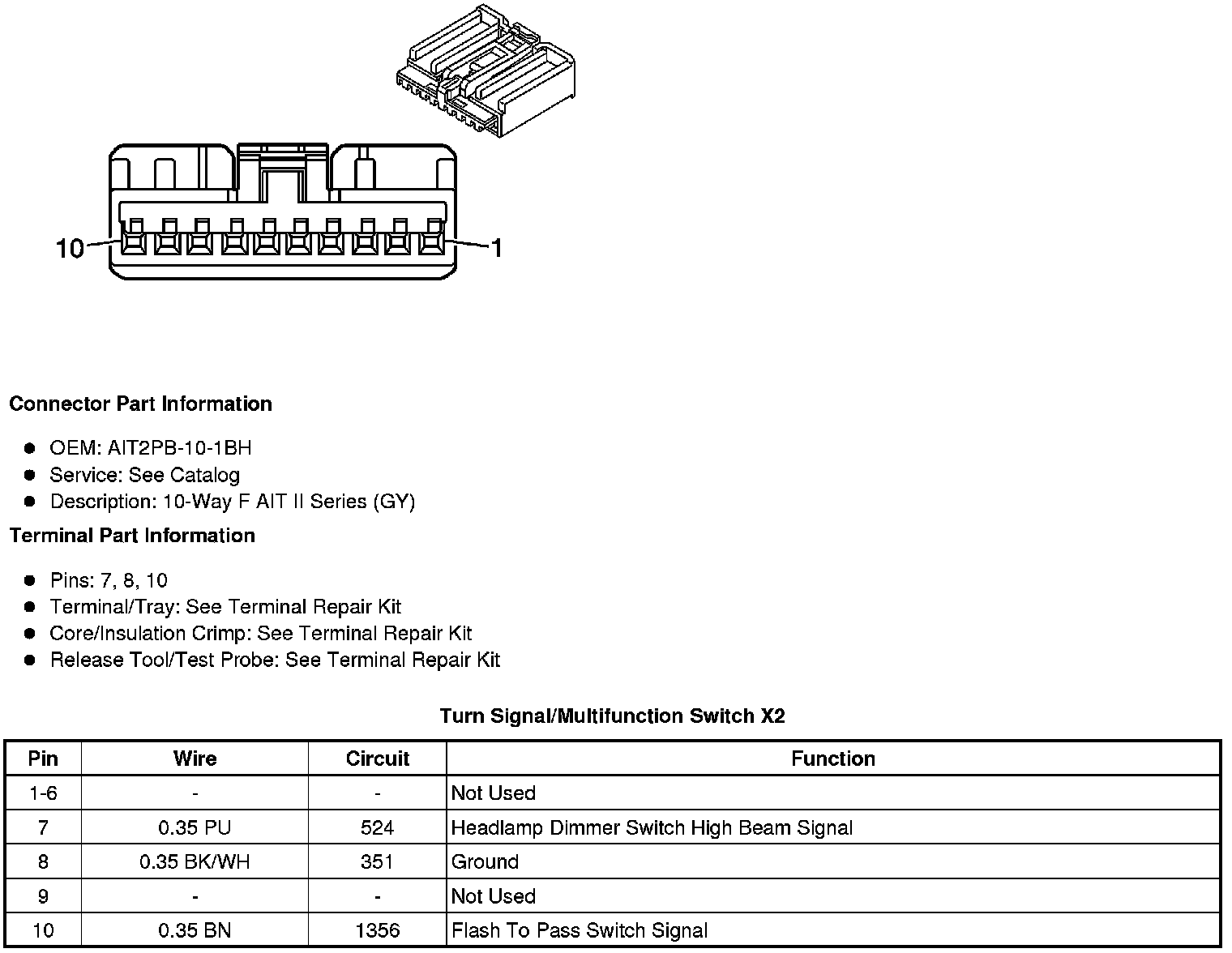

Turn Signal/Multifunction Switch X2






Turn Signal/Multifunction Switch X3
