Power Seat Switch

Lumbar Adjuster Switch - Driver (AL2)





Lumbar Adjuster Switch - Passenger (AL2)

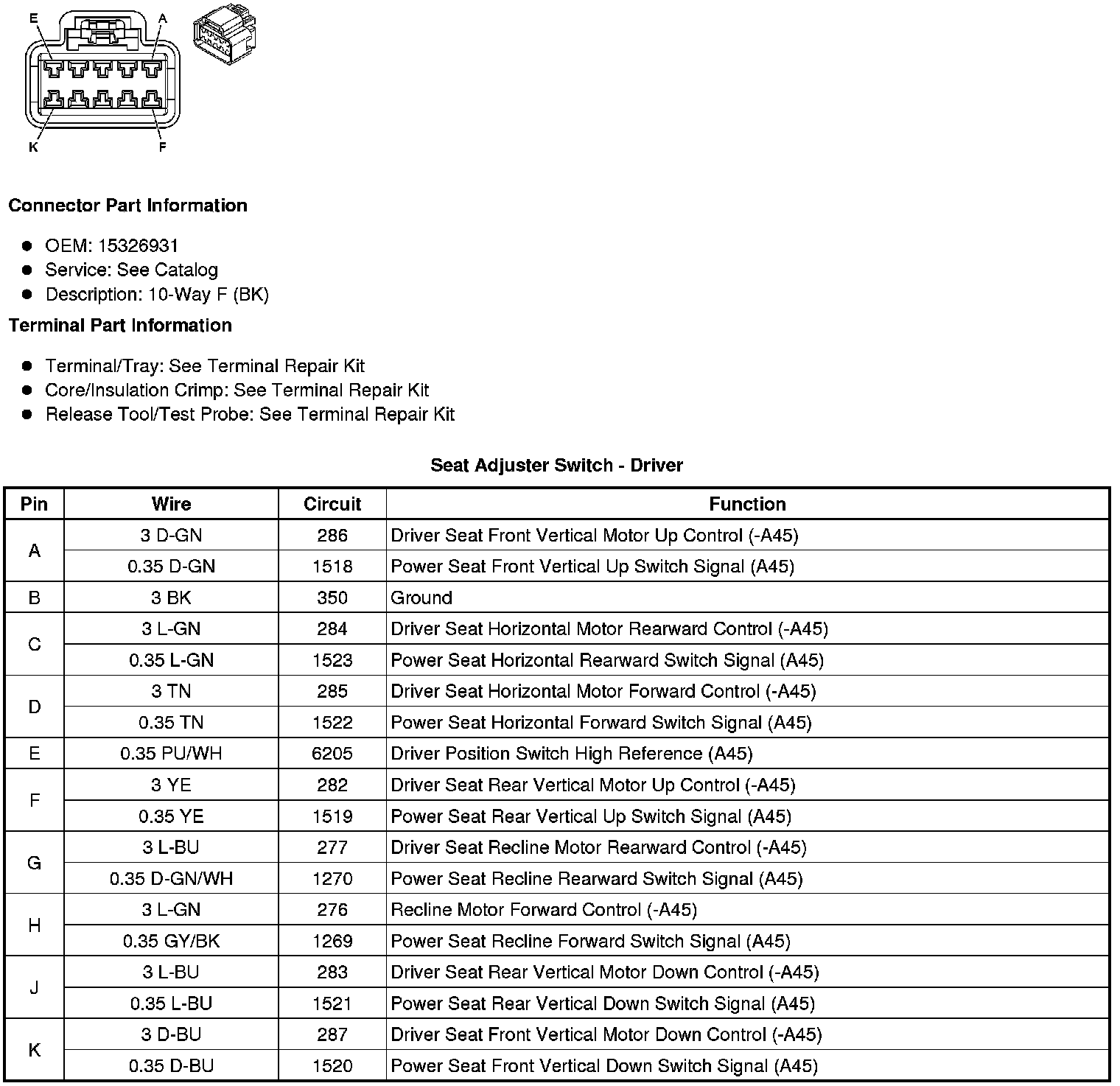

Seat Adjuster Switch - Driver

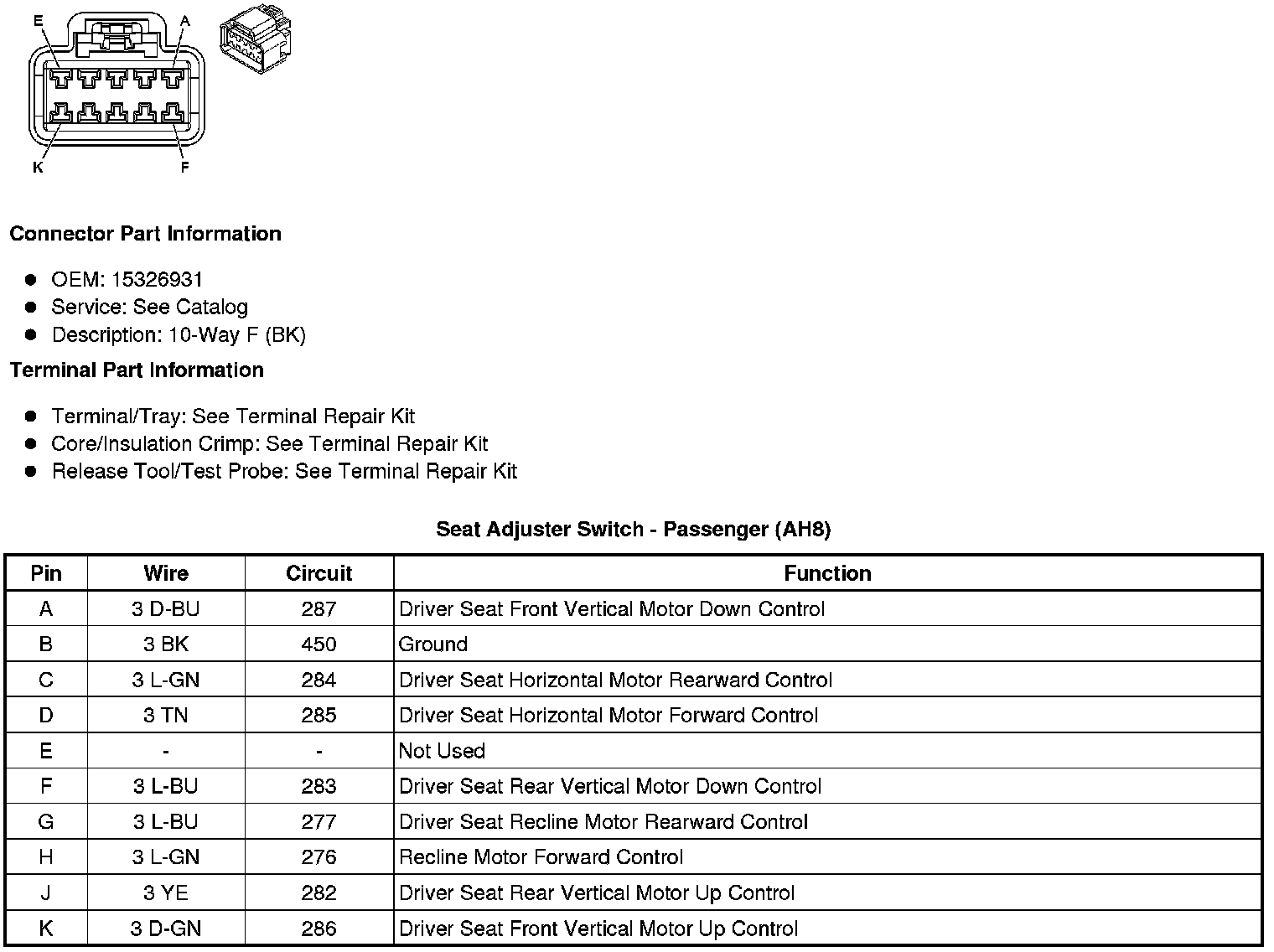

Seat Adjuster Switch - Passenger (AH8)
