Door Control Module Schematics



Door Control Module Schematics

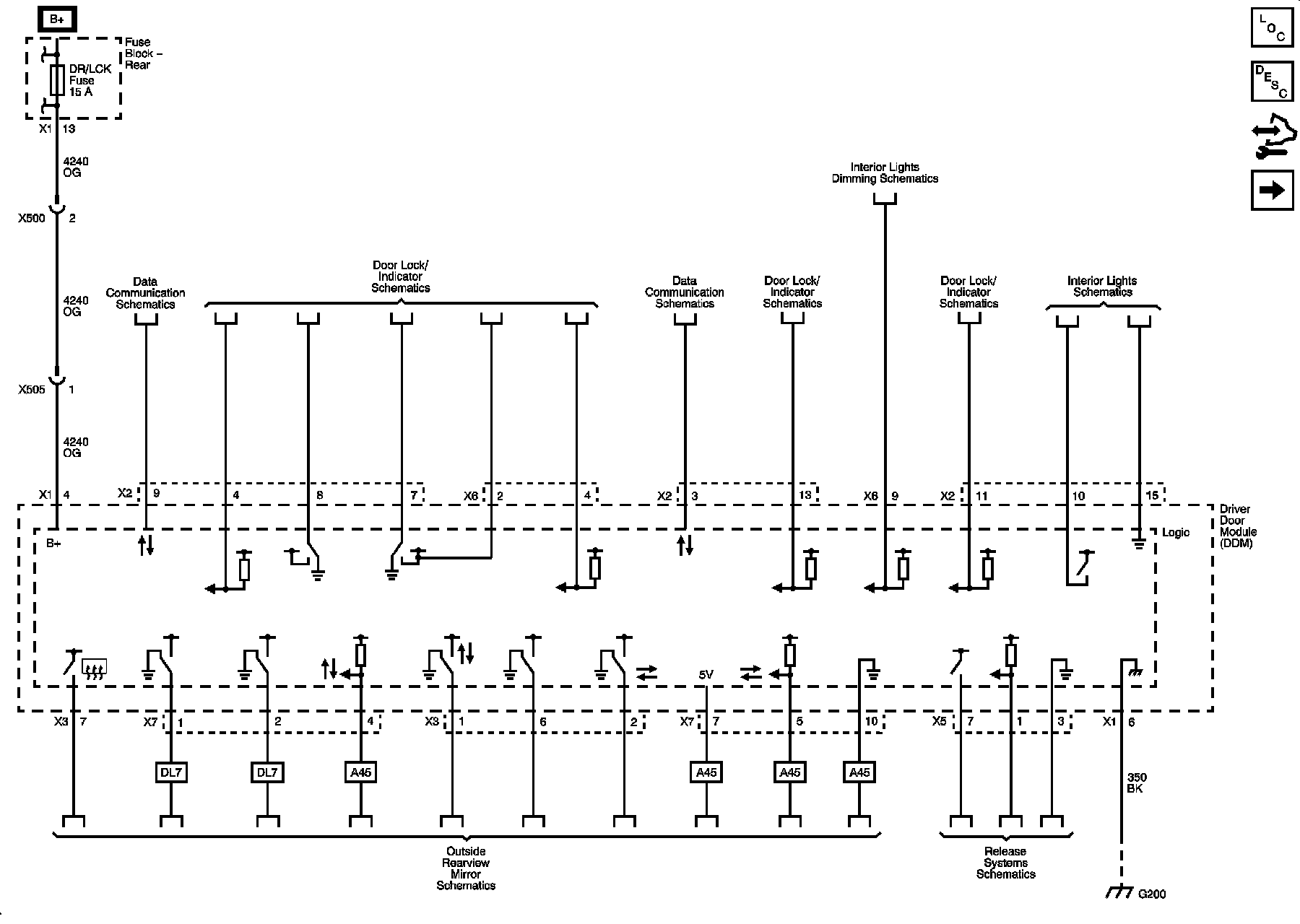

Driver Door Module (1 of 2)





Driver Door Module (2 of 2)





Front Door Passenger Door Module
