Cadillac
>>
2007
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Relay Box
Relay Box

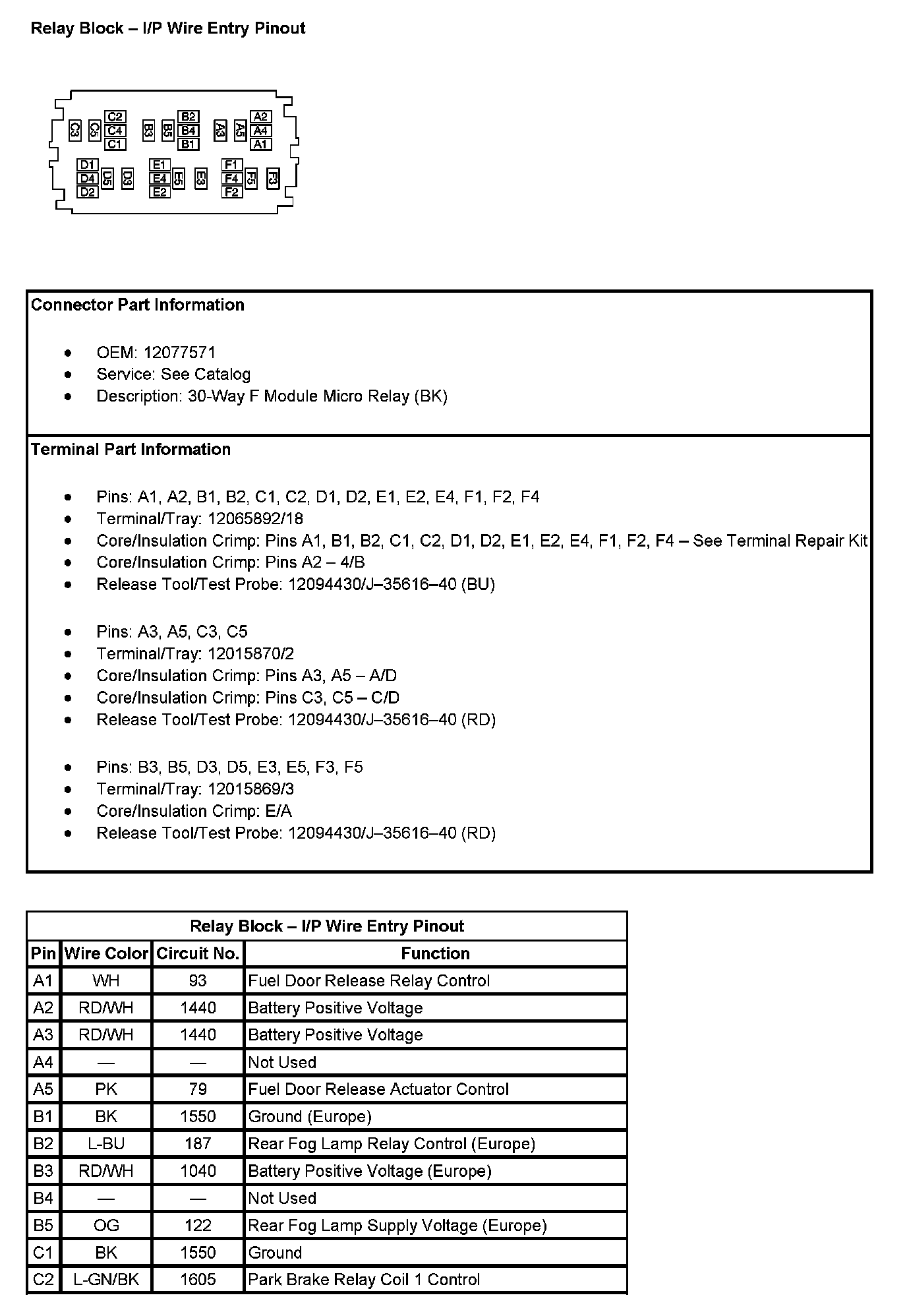

Relay Block - I/P Wire Entry Pinout (Pin A1 To C2):

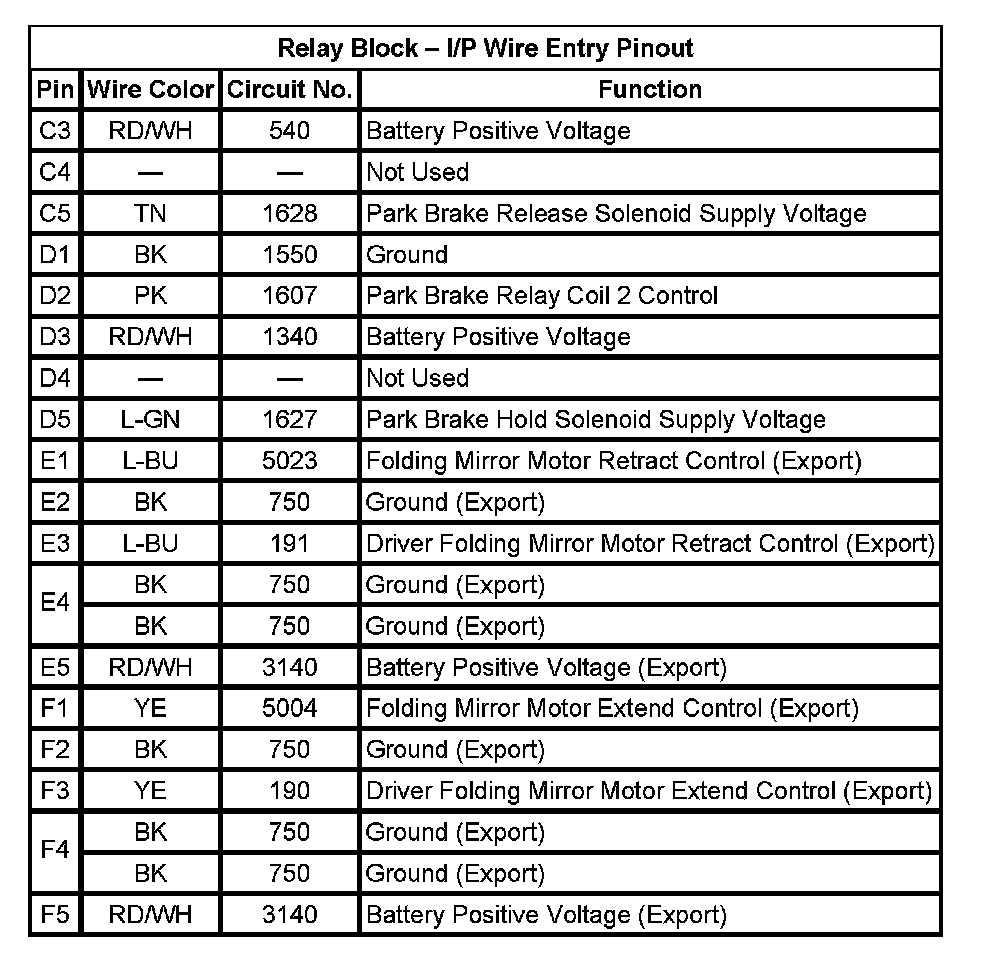

Relay Block - I/P Wire Entry Pinout (Pin C3 To F5):
