Seat Cushion Heated/Cooled Ventilation Module

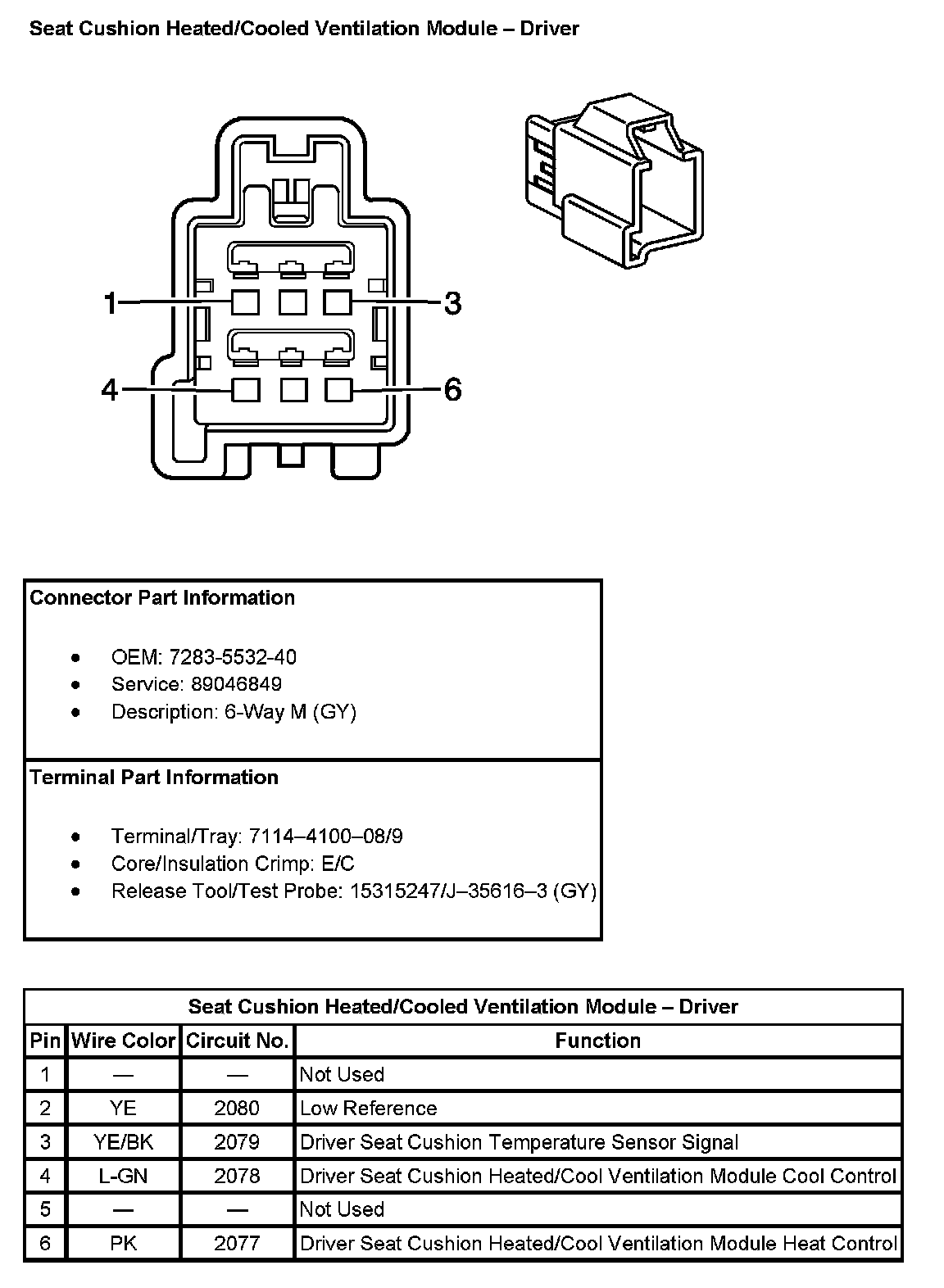

Seat Cushion Heated/Cooled Ventilation Module - Driver:

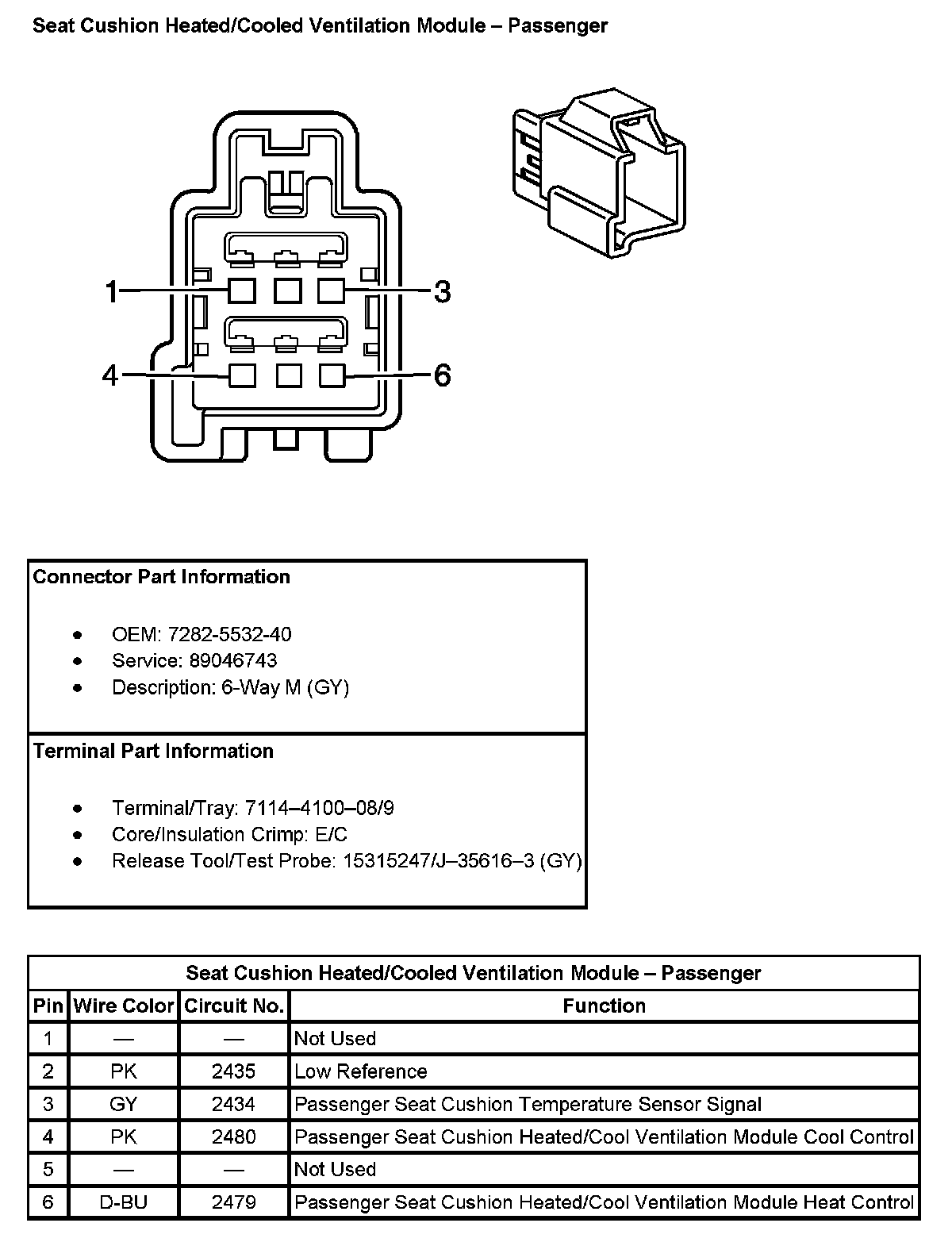

Seat Cushion Heated/Cooled Ventilation Module - Passenger:
