Home >> Cadillac >> 2007 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> I/P Fuse Block

I/P Fuse Block

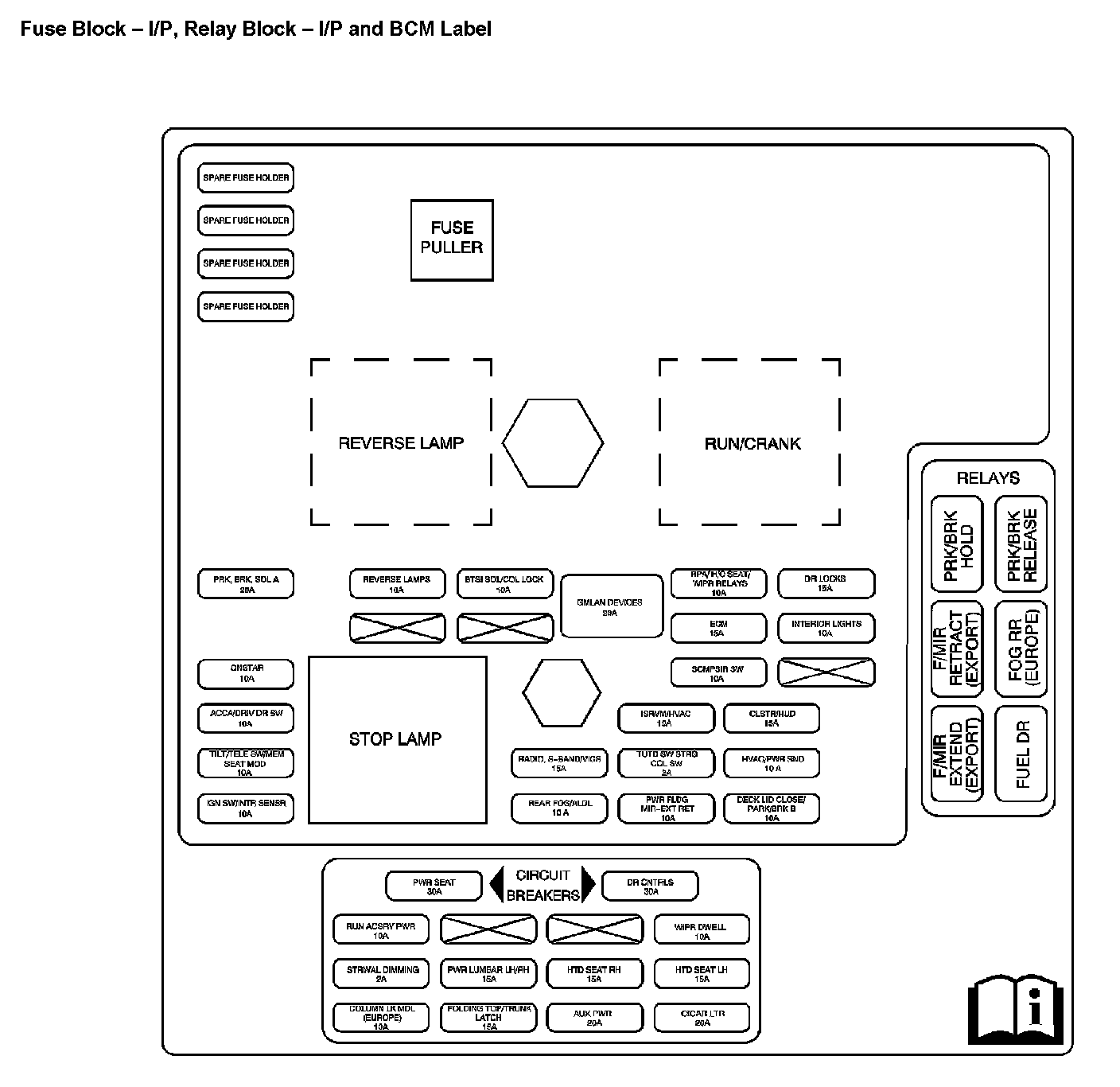

Fuse Block - I/P, Relay Block - I/P and BCM Label:




Fuse Block - I/P, Relay Block - I/P and BCM Label:

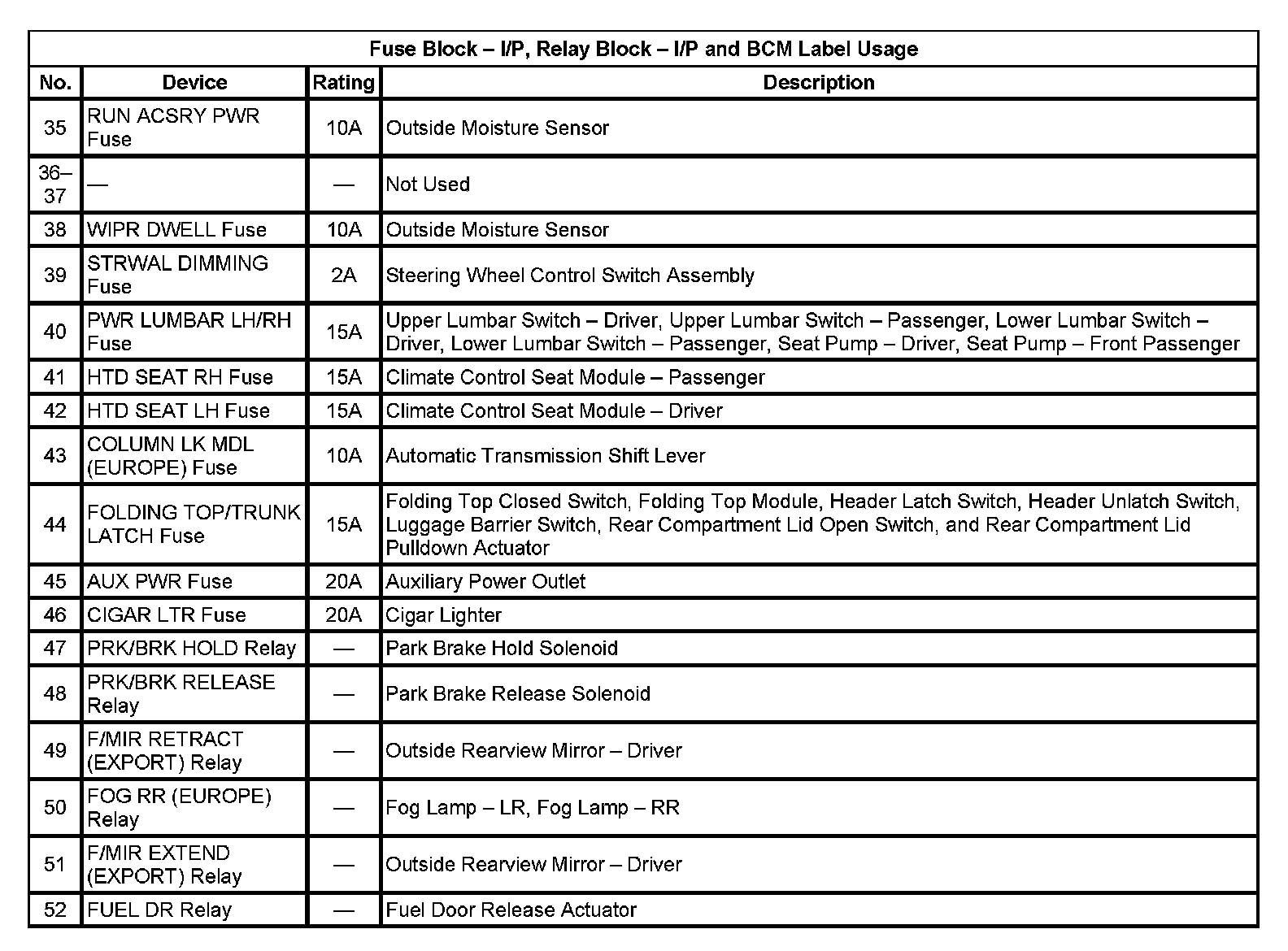

Fuse Block - I/P, Relay Block - I/P and BCM Label Usage:

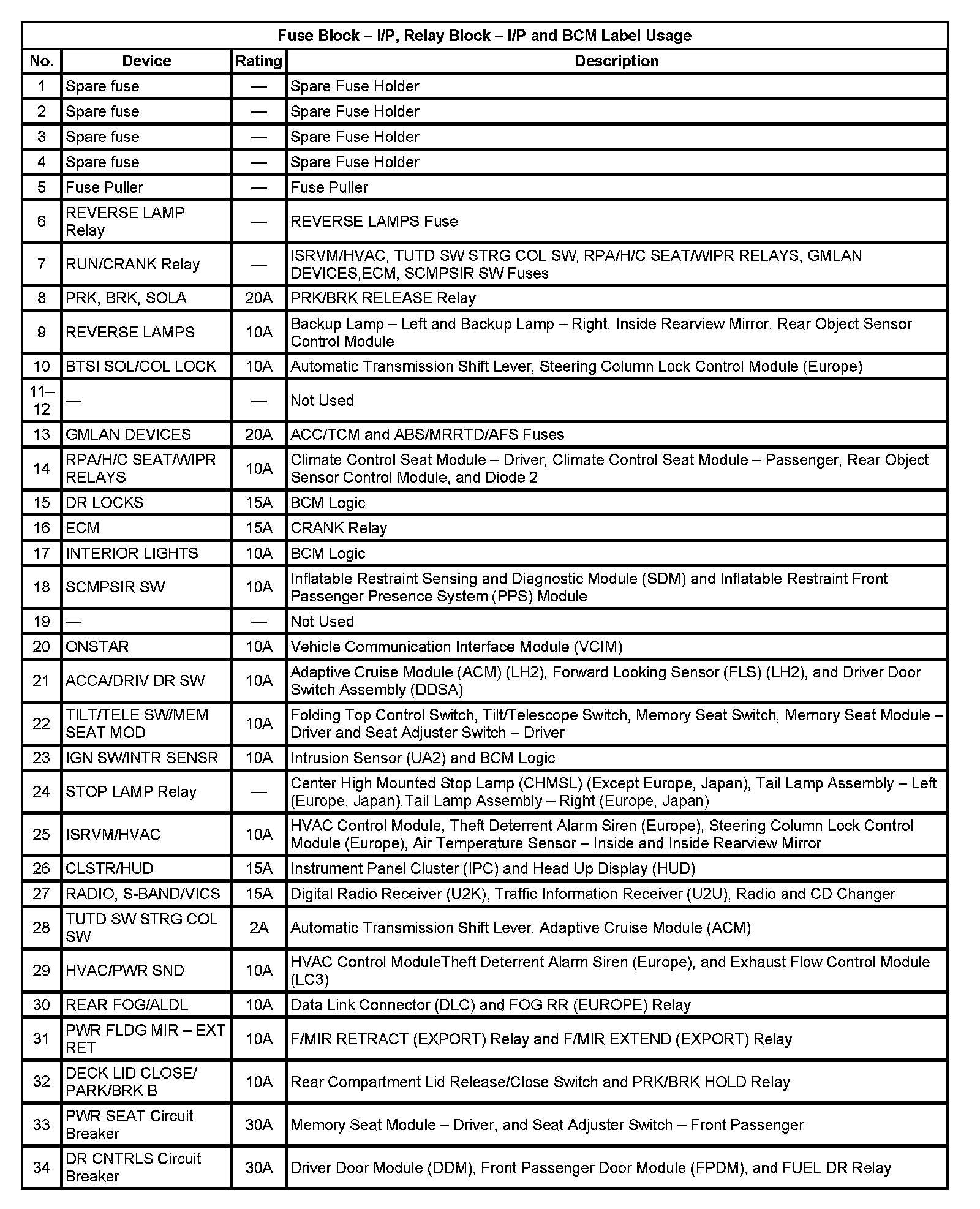

Fuse Block - I/P, Relay Block - I/P and BCM Label Usage:
