Ignition Coil: Diagrams



Engine Controls Connector End Views

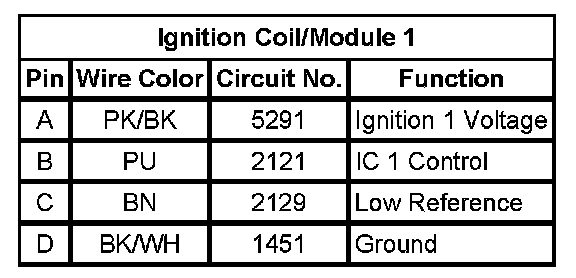

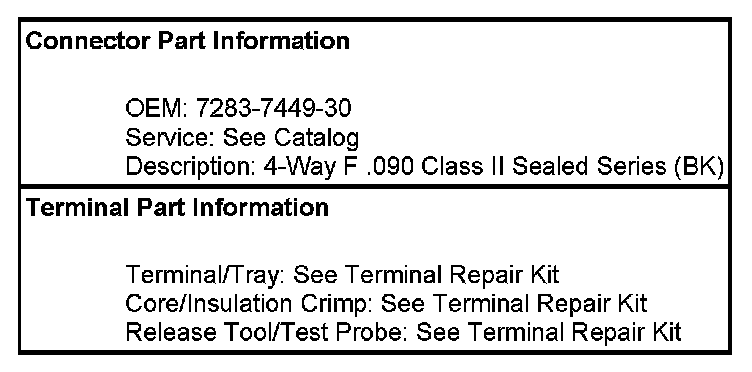

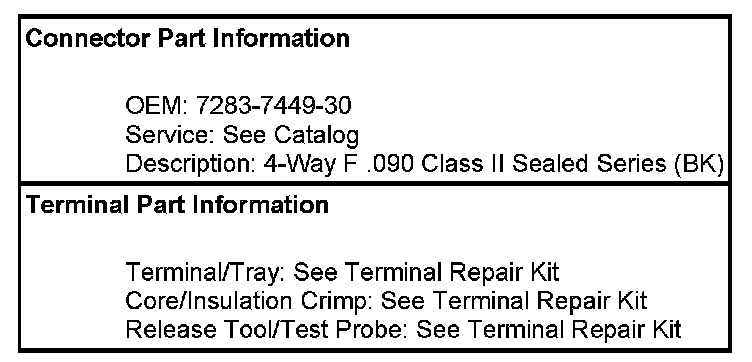

Ignition Coil/Module 1

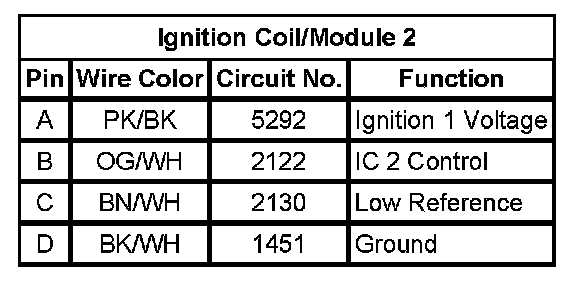

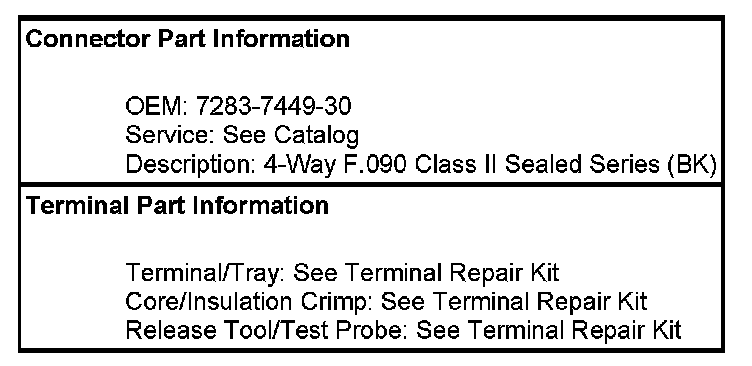

Ignition Coil/Module 2

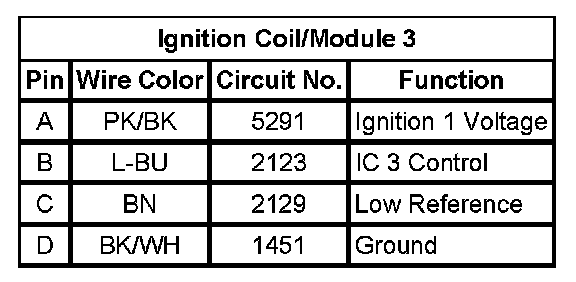

Ignition Coil/Module 3

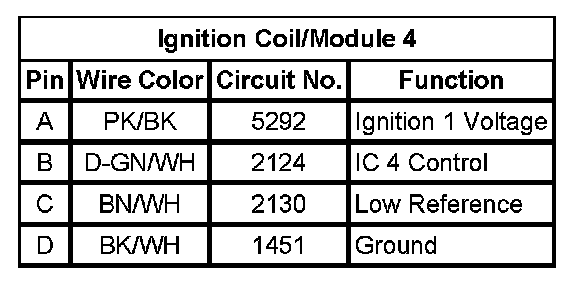

Ignition Coil/Module 4

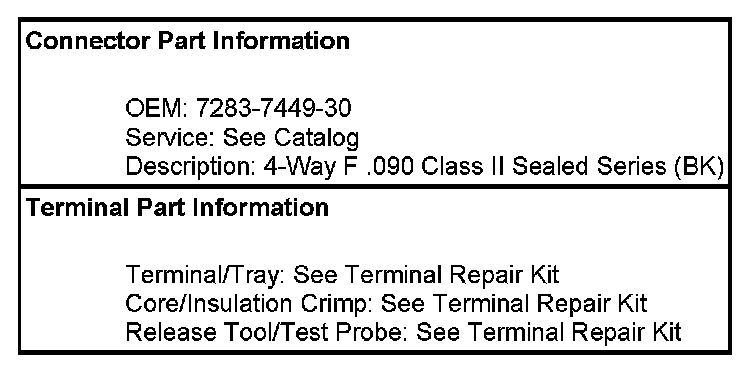

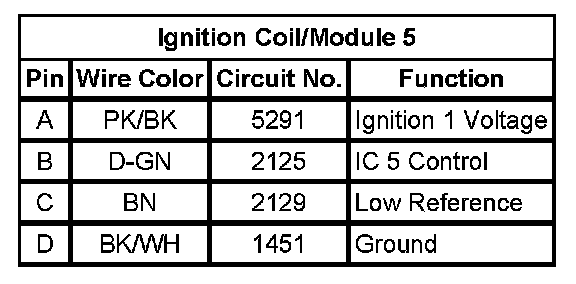

Ignition Coil/Module 5

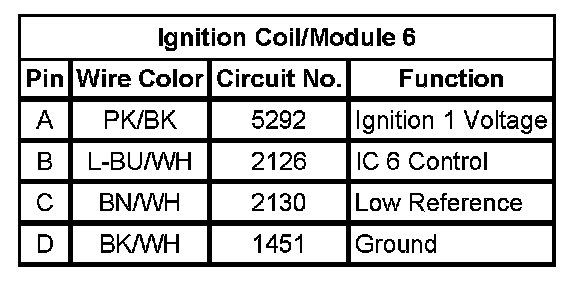

Ignition Coil/Module 6

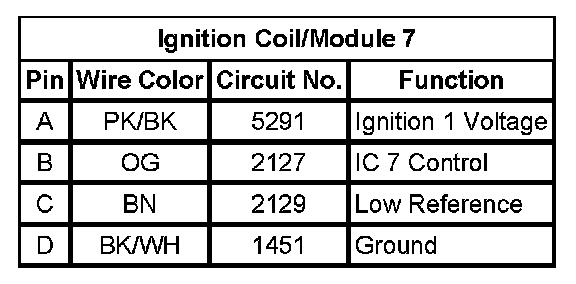

Ignition Coil/Module 7

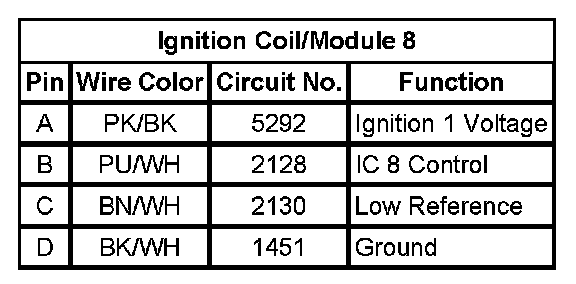

Ignition Coil/Module 8
