Power Trunk / Liftgate Control Module: Diagrams





Power Liftgate Module

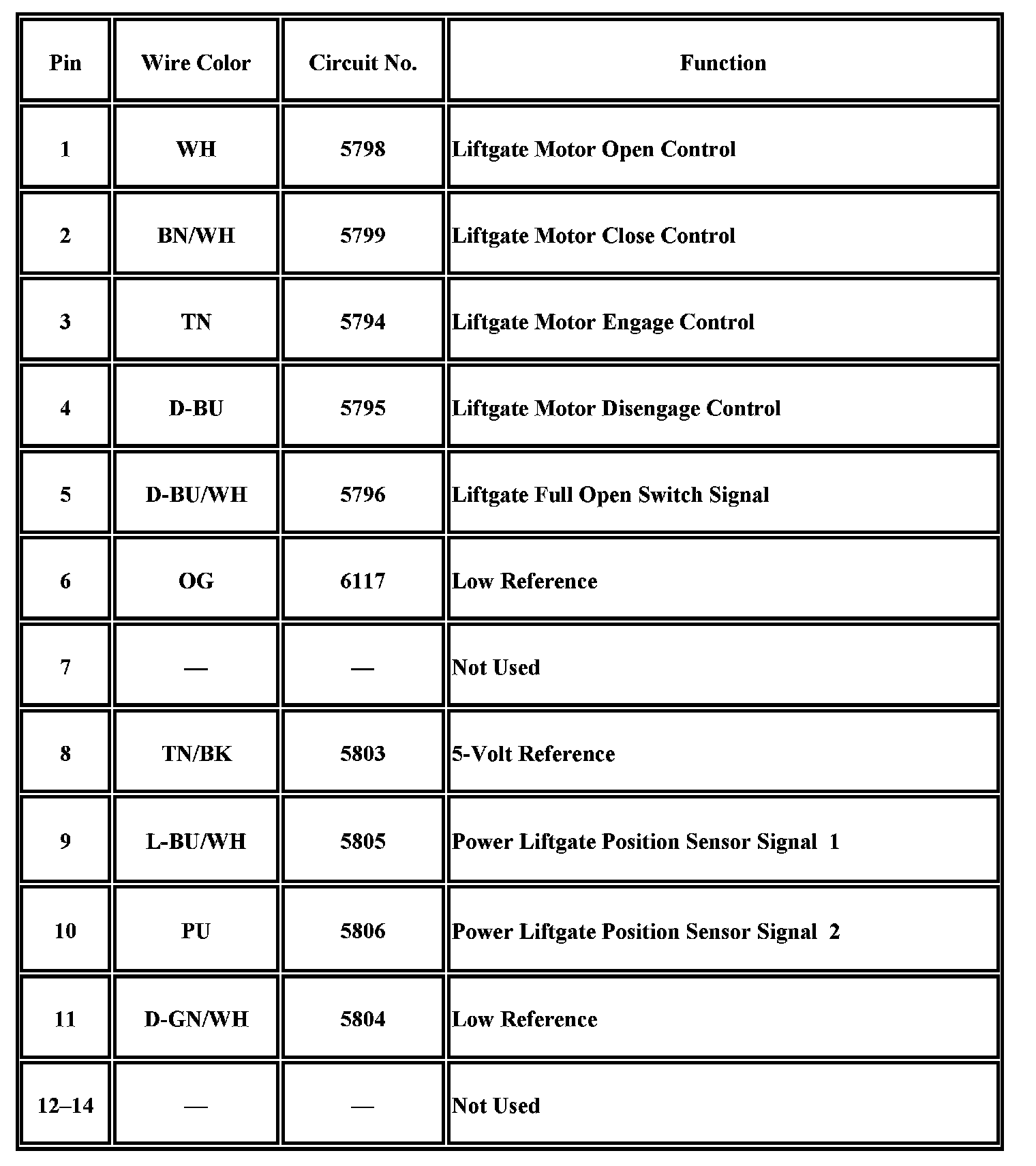

Power Liftgate Module C1 (E61)

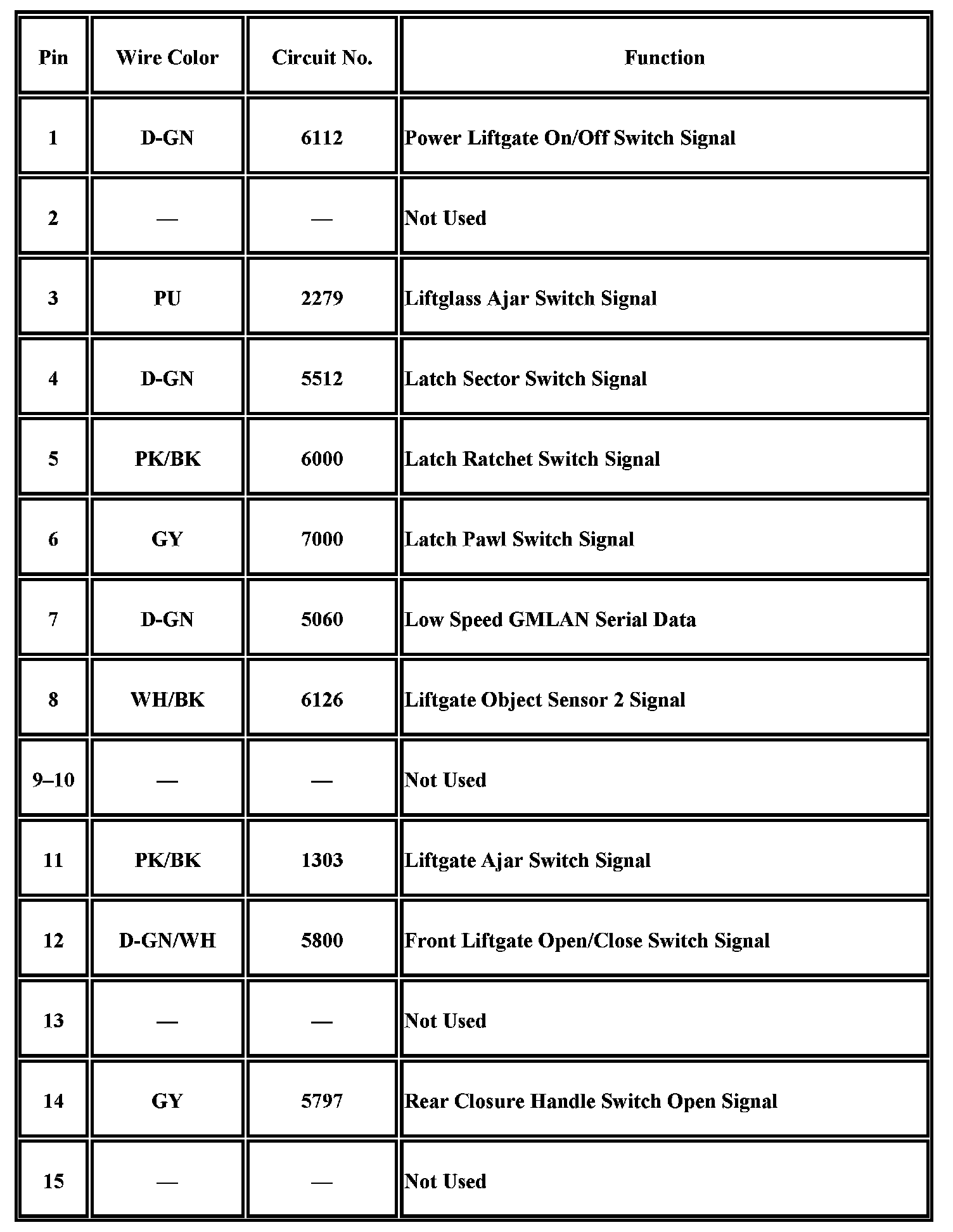

Power Liftgate Module C2 (E61)














Power Liftgate Module C3 (E61)
