Home >> Cadillac >> 2007 >> Escalade AWD V8-6.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> I/P Fuse Block

I/P Fuse Block



Fuse Block - I/P, Label:

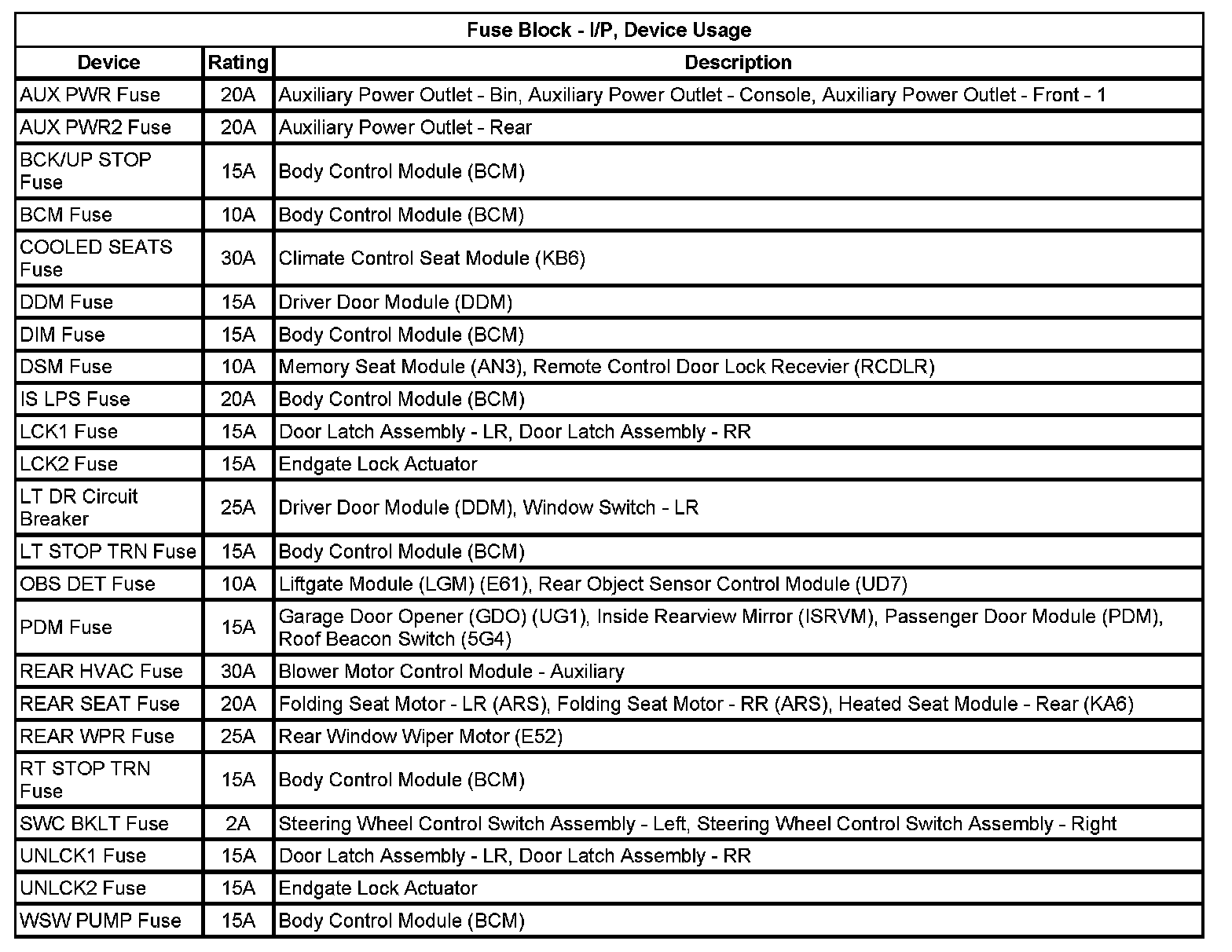

Fuse Block - I/P, Device Usage:
