Home >> Cadillac >> 2007 >> DTS V8-4.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Rear Fuse Block

Rear Fuse Block



Electrical Center Identification Views

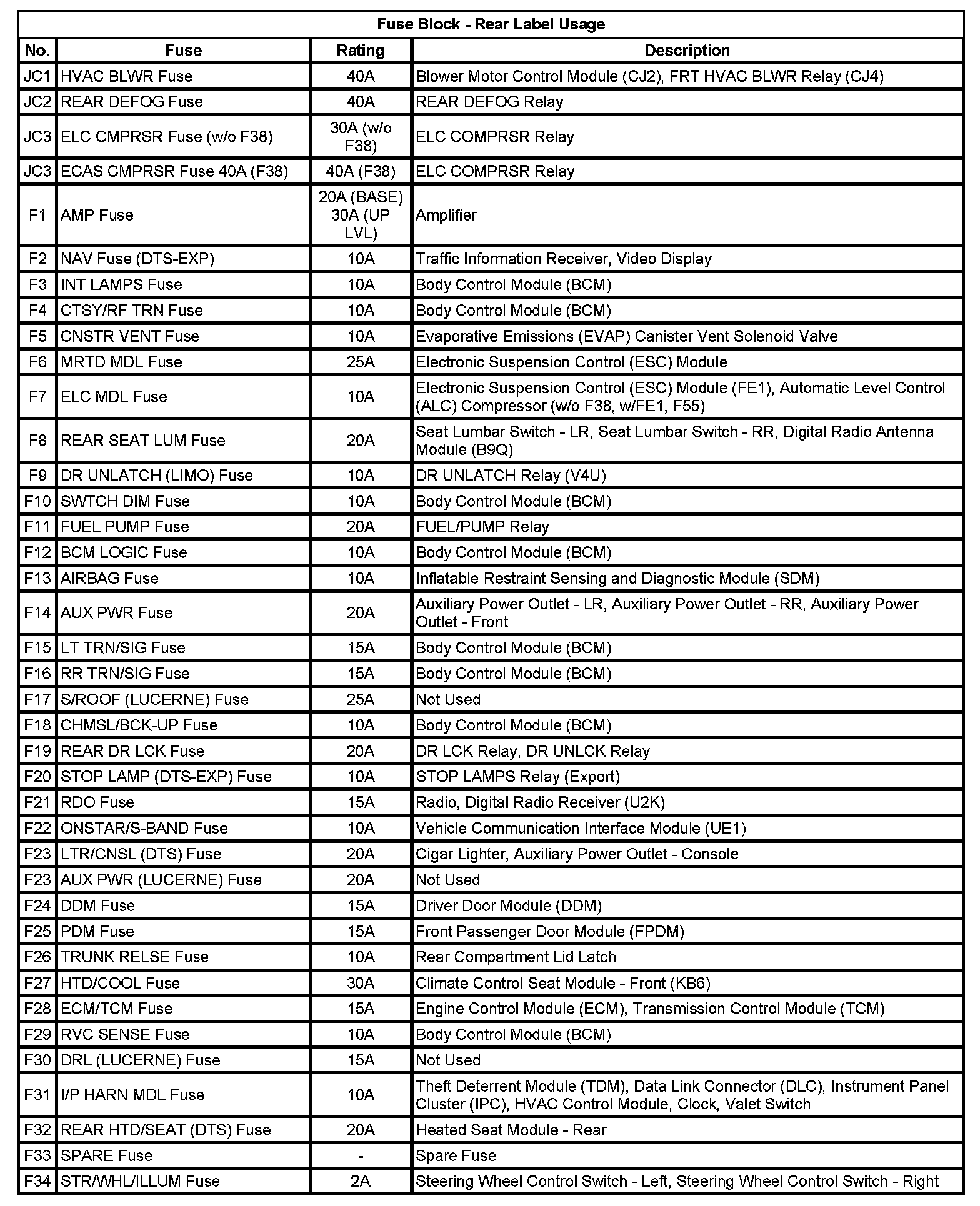

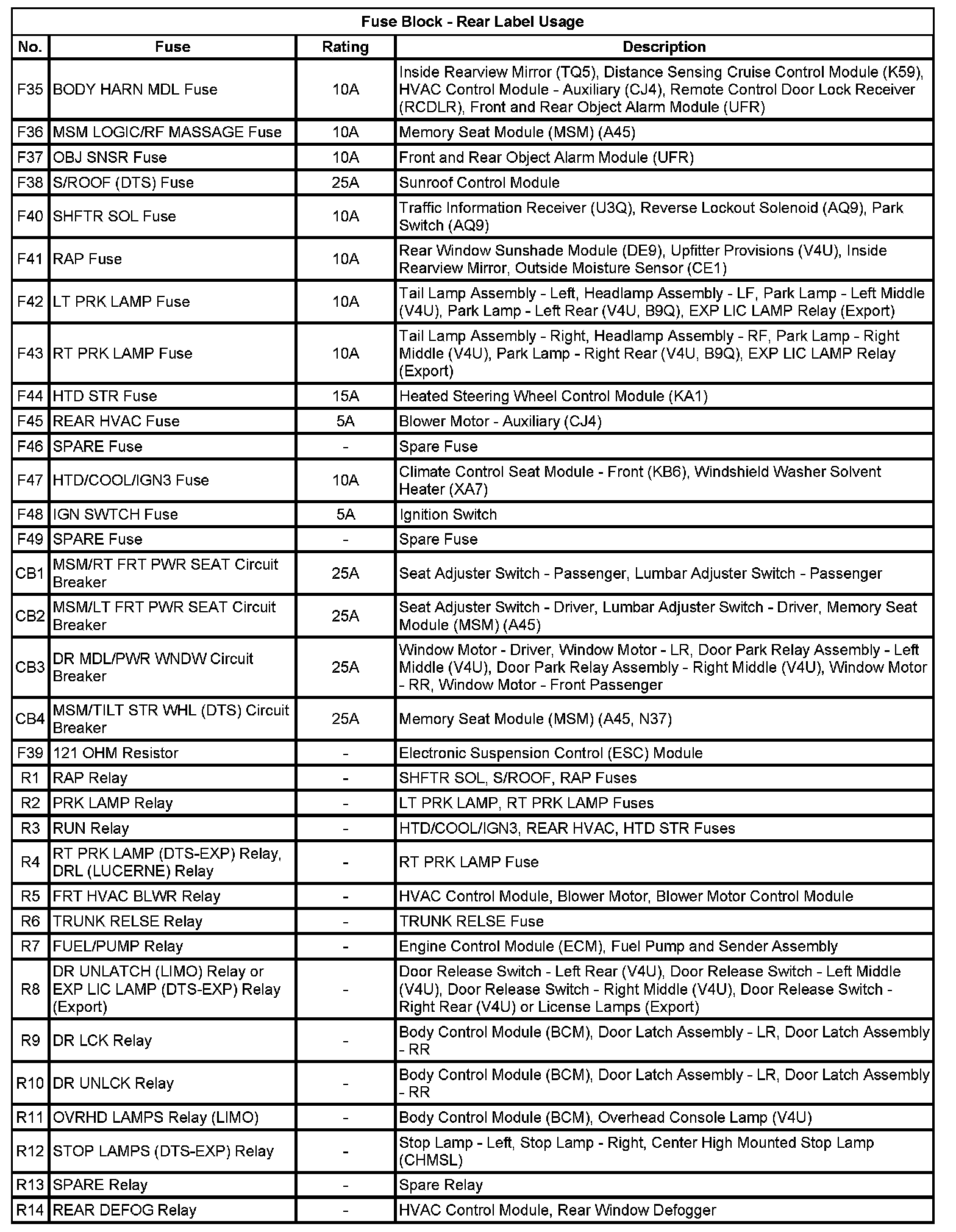

Fuse Block - Rear Label
