Home >> Cadillac >> 2007 >> DTS V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Control Module, A/T

Control Module, A/T

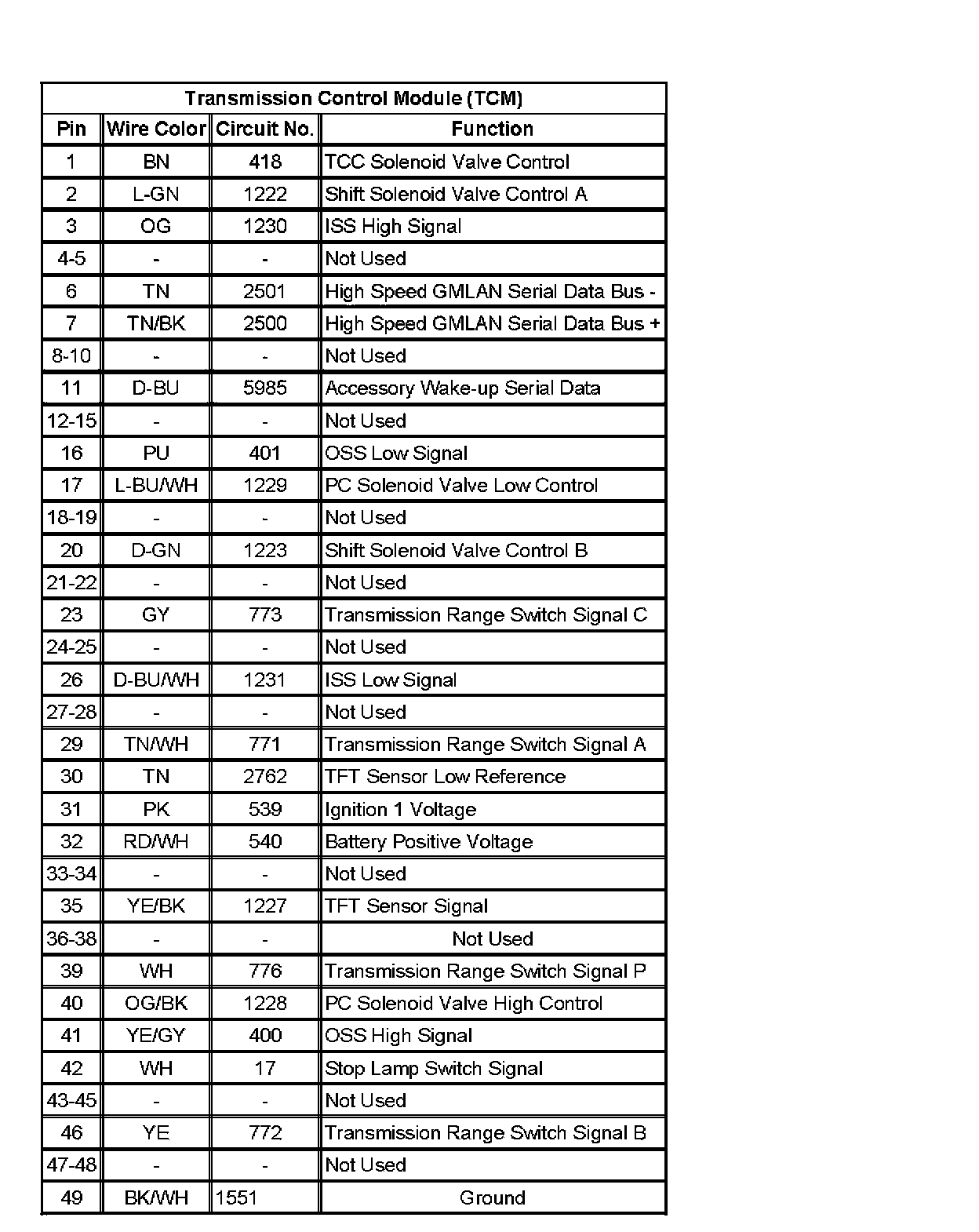

Transmission Control Module (TCM)
