Splash Shield Replacement - Engine

Splash Shield Replacement - Engine

Removal Procedure





1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

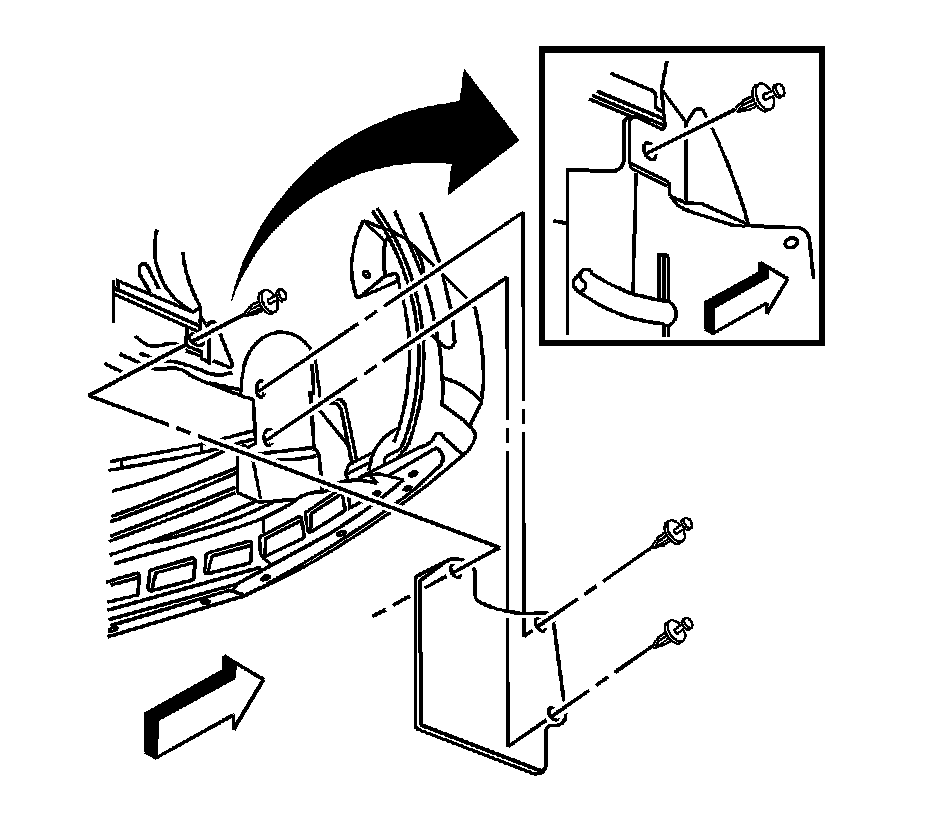

2. Remove the push-in retainers securing the splash shield to the vehicle.
3. Remove the splash shield from the vehicle.

Installation Procedure





1. Position the splash shield to the vehicle.
2. Install the push-in retainers to secure the splash shield to the vehicle.
