Engine Views



Power and Grounding Component Views

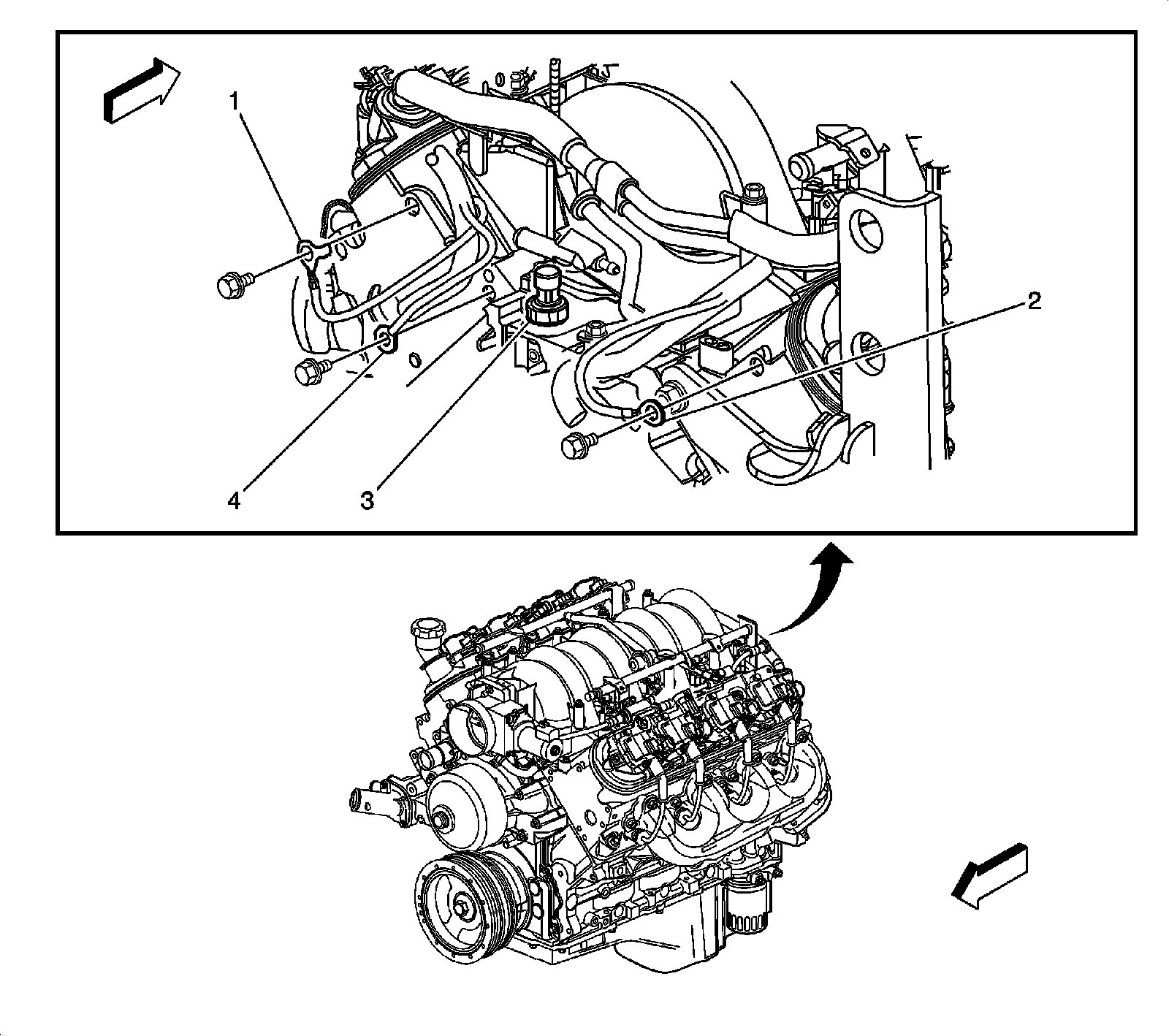

Engine Grounds - 6.0L (LS2)




1 - Ground G141
2 - Ground G142
3 - Engine Oil Pressure (EOP) Sensor
4 - Ground G140
