Front Fender Liner: Service and Repair

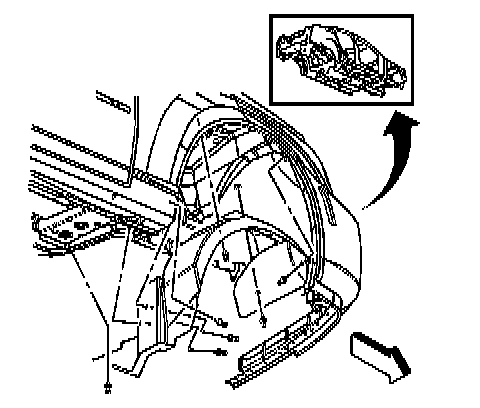

Front Wheelhouse Liner Replacement


Removal Procedure

1.Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .





2.Remove the push-in retainers securing the wheelhouse liner to the vehicle.

3.Remove the wheelhouse liner from the vehicle.

Installation Procedure





1.Position the front wheelhouse liner to the vehicle.

2.Install the push-in retainers to secure the wheelhouse liner to the vehicle.
