Sunroof / Moonroof Module: Locations

Sunroof Component Views

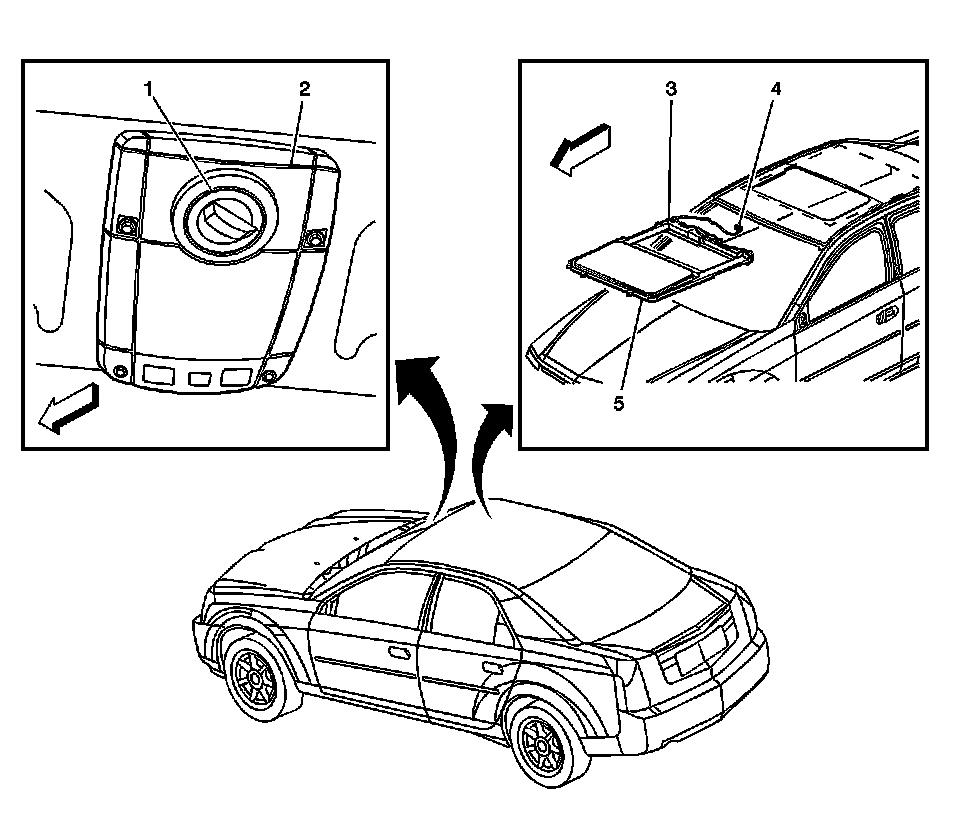

Roof Subsystem Components (CF5)




1 - Sunroof Control Switch
2 - Overhead Console
3 - Sunroof Motor and Sunroof Module
4 - Sunroof Module Connector
5 - Sunroof Control Module

Power Sunroof Components (CF5)




1 - Sunroof Glass Panel
2 - Sunroof Module
3 - Sunroof Motor (w/Limit Switch and Obstruction Sensors)(Part of Sunroof Module)
4 - Sunroof Rear Drain Hose
5 - Sunroof Front Drain Hose
