Connector Views

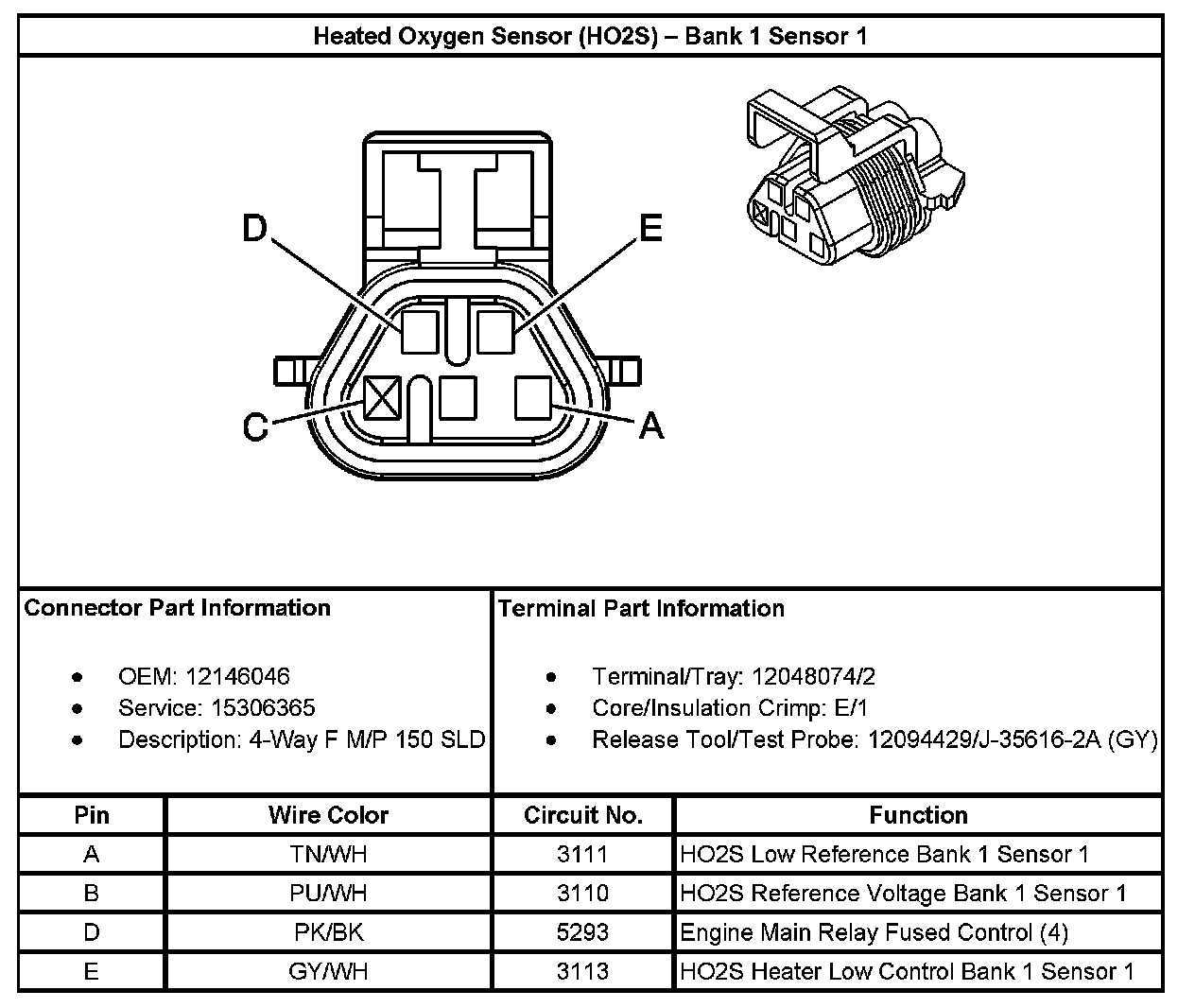

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1:

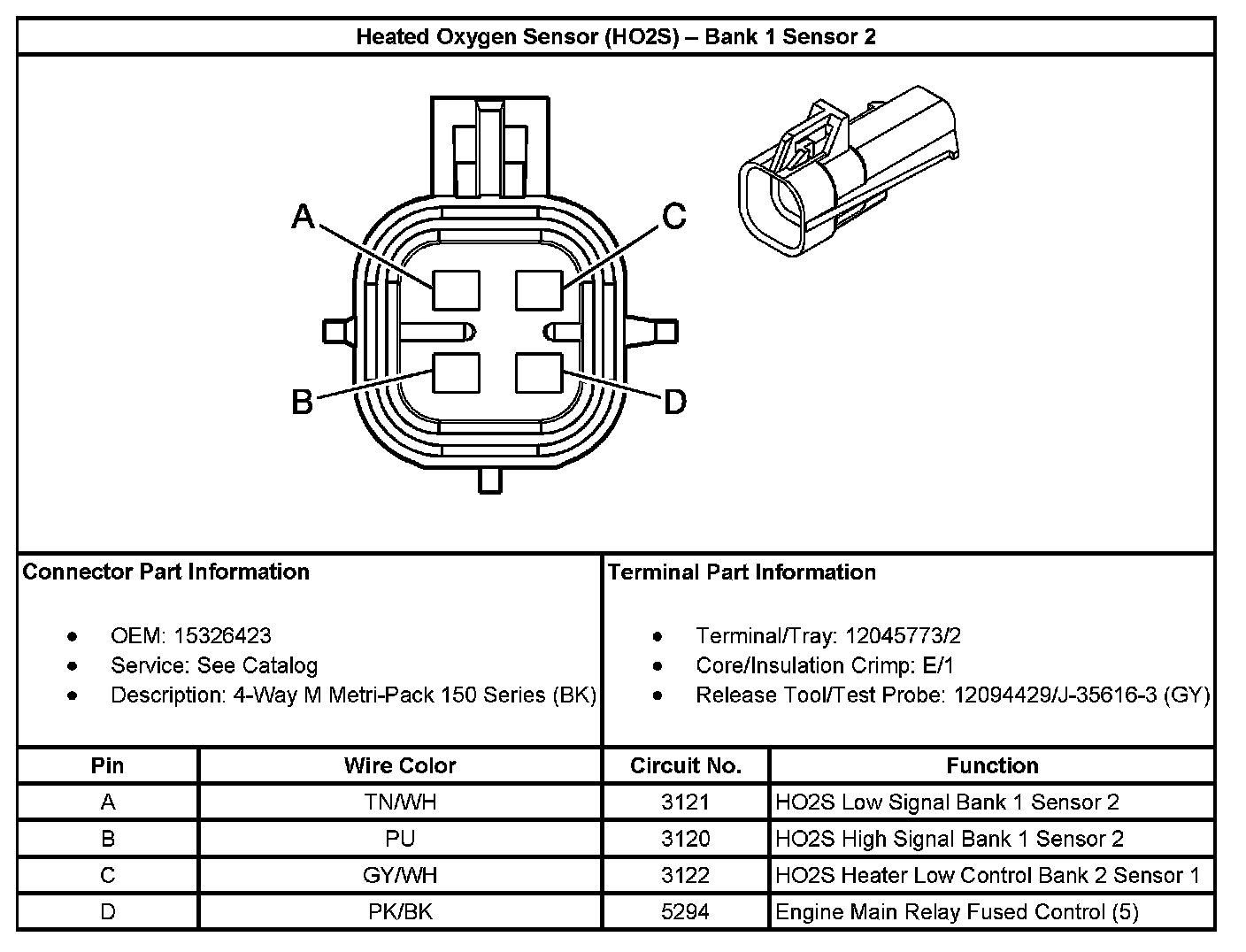

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2:

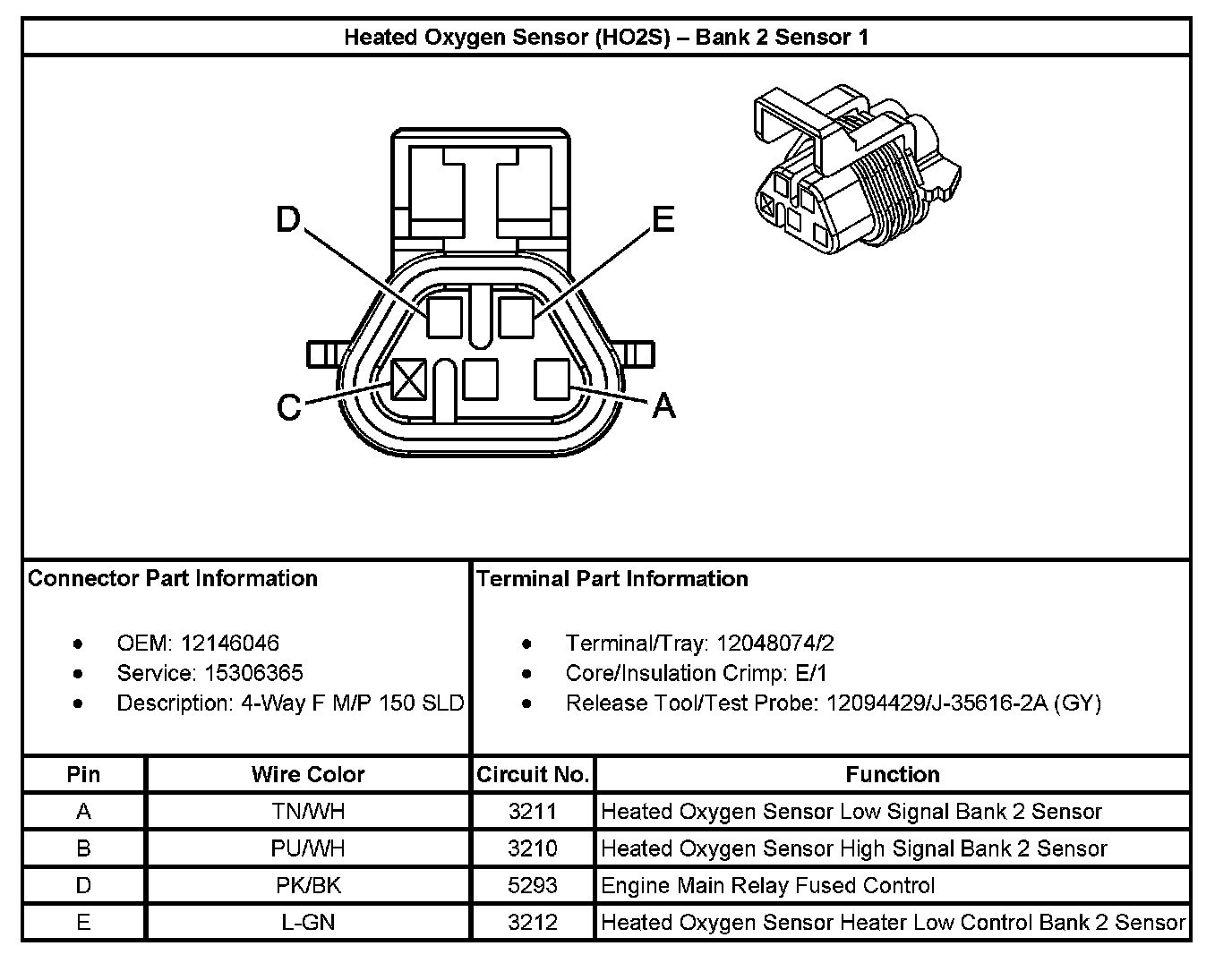

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1:

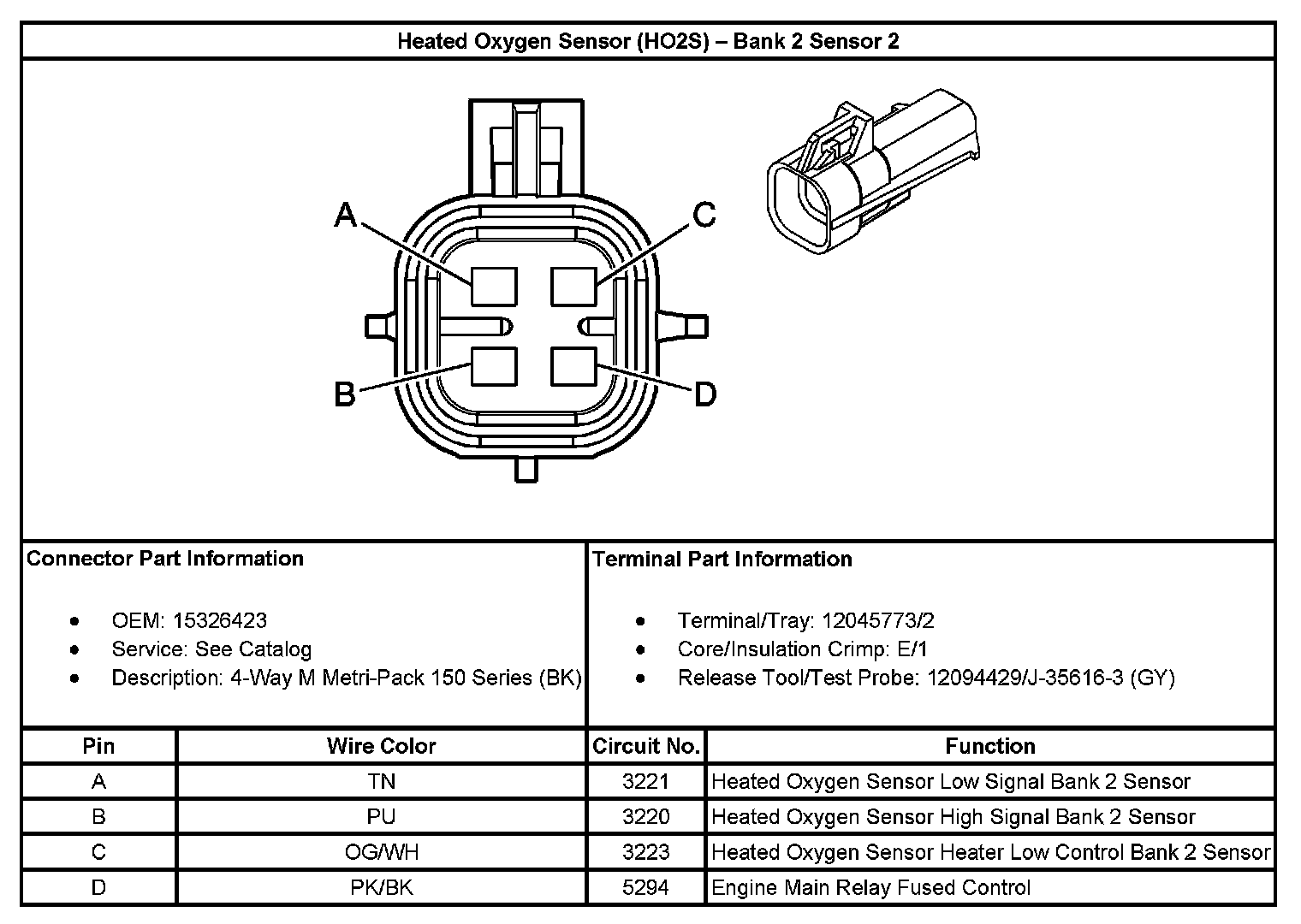

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2:
